Product Details

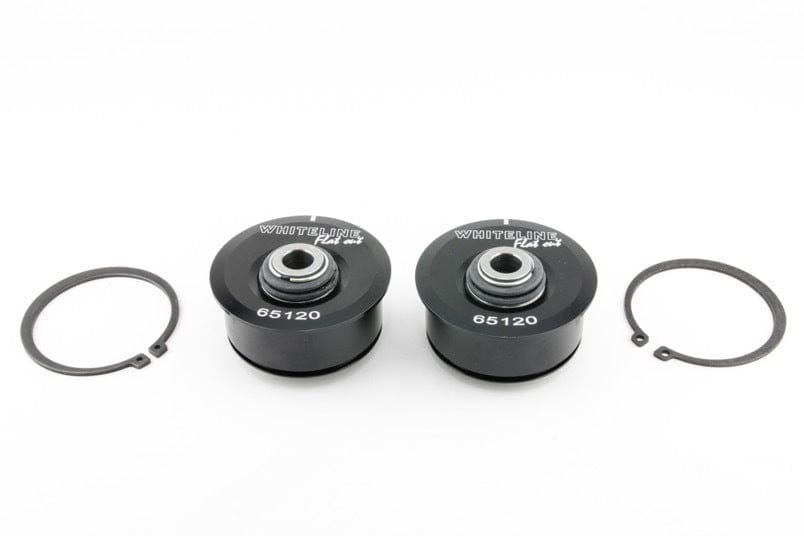

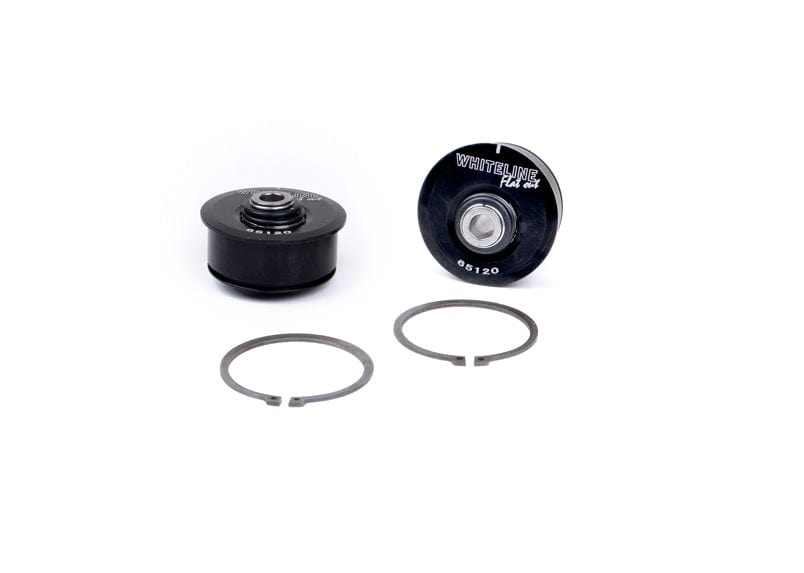

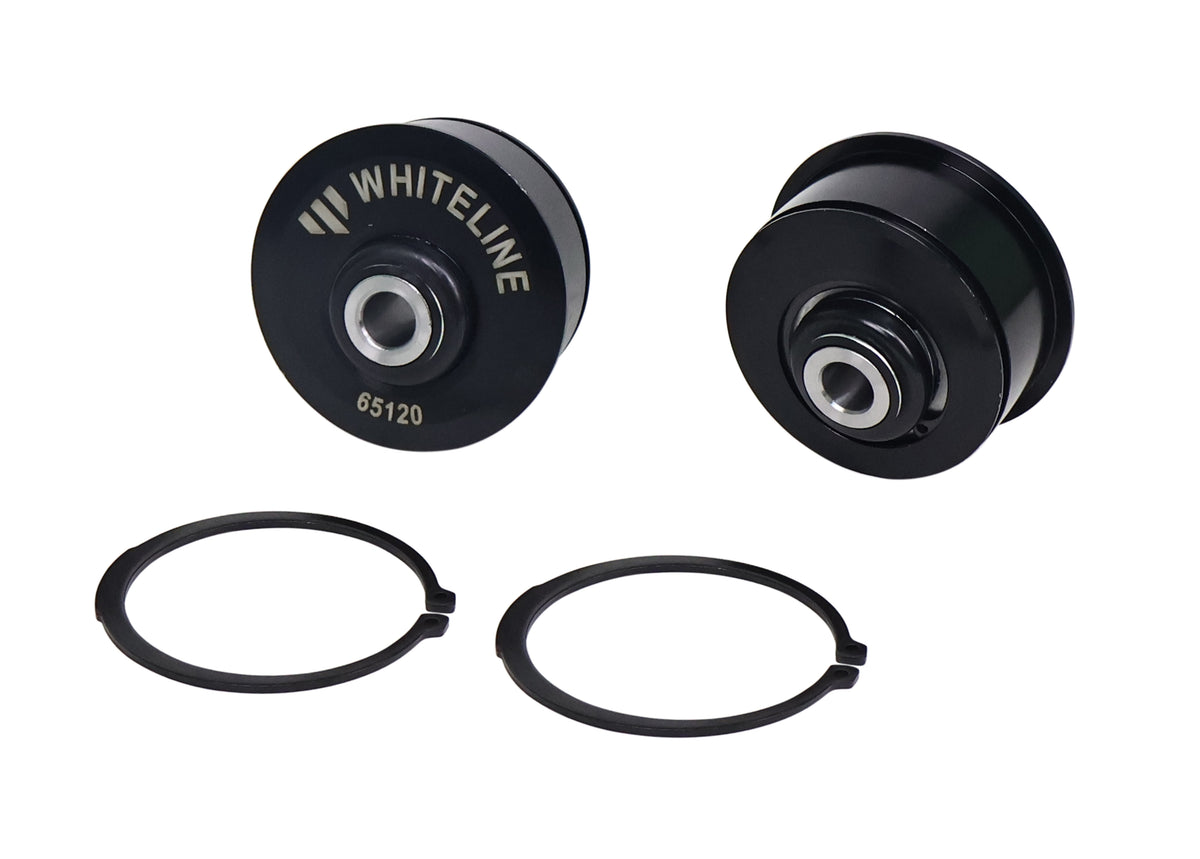

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2015 Mitsubishi Lancer Evolution Final Edition (CY). Chassis code: CY. Application note: Alloy Bushings & Spherical Bearing: adds +0.5 degrees Caster + Anti-Lift motorsport. Order it as part number KCA400M. Placement: front. You receive 2 alloy bushings.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Expect a difficult job of about 2 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing for the Lancer Evolution.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Caster: Adds caster to improve turn-in and directional stability.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
  • Anodized alloy: The alloy carries an anodized finish for durability.
Specifications
Part Number KCA400M
Part Name Control Arm Bushing
Vehicle 2015 Mitsubishi Lancer Evolution Final Edition
Drivetrain AWD
Chassis Code CY
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Length 54 mm
Bushing 1 Outer Diameter 76.1 mm
Bushing 2 Inner Diameter 14.2 mm
Bushing 2 Length 54 mm
Bushing 2 Outer Diameter 76.1 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Alloy Bushings
Material Alloy
Mounting Hardware Included No
Outside Diameter 76.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Alloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
