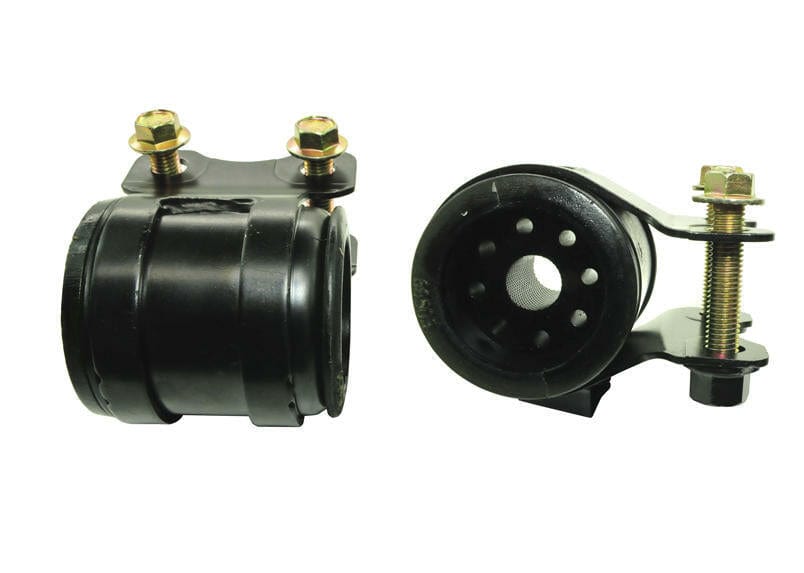

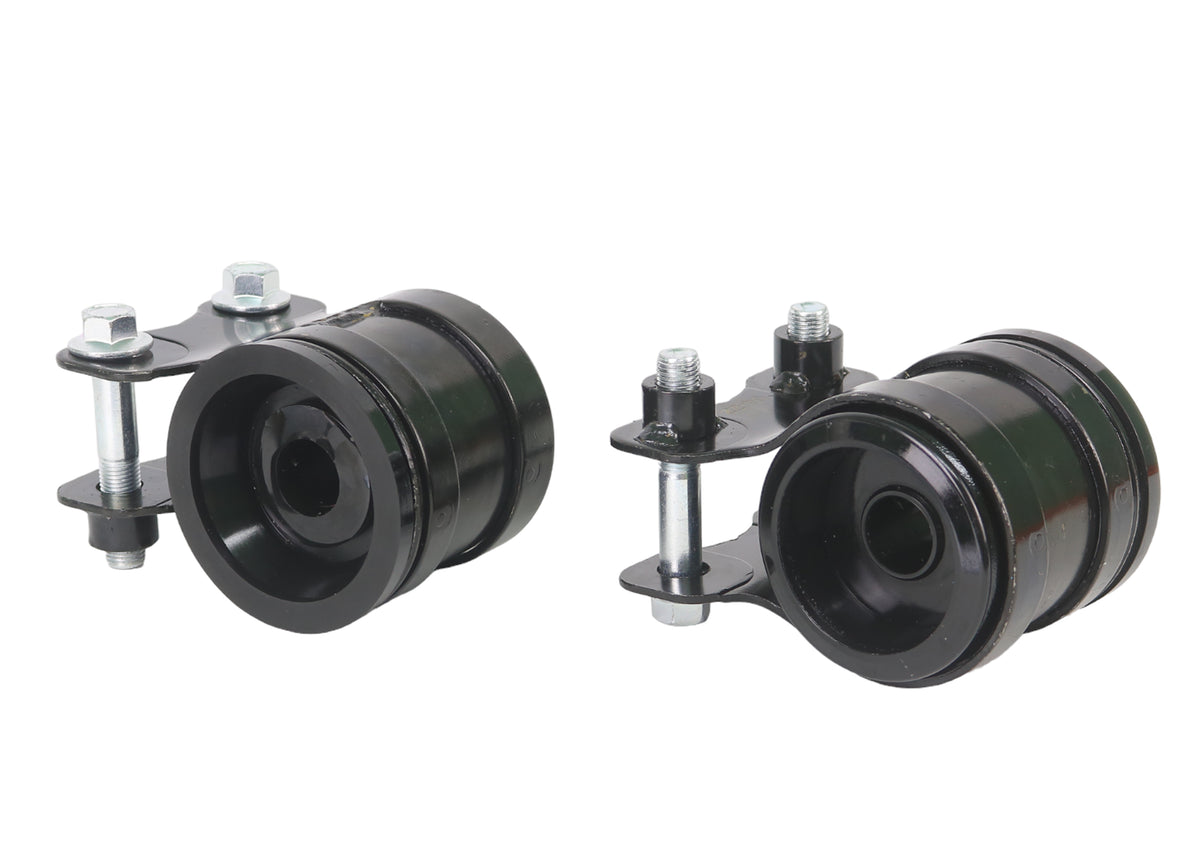

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2012 Ford Focus Electric, Titanium (C307). Application note: Standard Replacement: includes new housing. The kit contains 2 housings and 4 bolts. This part is for the front of the vehicle. Whiteline part number: W53528.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as easy and lists about 2 hours. Plan on a wheel alignment afterward. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Focus.

Features

  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Easy to fit: Installation does not call for special skills or tools.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Hardware: The kit includes mounting hardware.
  • Finish: An E-coat finish protects the metal from corrosion.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
Specifications
Part Number W53528
Part Name Control Arm Bushing
Vehicle 2012 Ford Focus Electric, Titanium
Chassis Code C307
Bushing 1 Inner Diameter 26 mm
Bushing 1 Length 80.5 mm
Bushing 1 Outer Diameter 68 mm
Bushing 2 Inner Diameter 26 mm
Bushing 2 Length 80.5 mm
Bushing 2 Outer Diameter 68 mm
Bushing Quantity 2
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 2
Kit Contents 2 Housings, 4 Bolts
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 68 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement - includes new housing

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012FordFocusFWDStandard Replacement - includes new housing
