Product Details

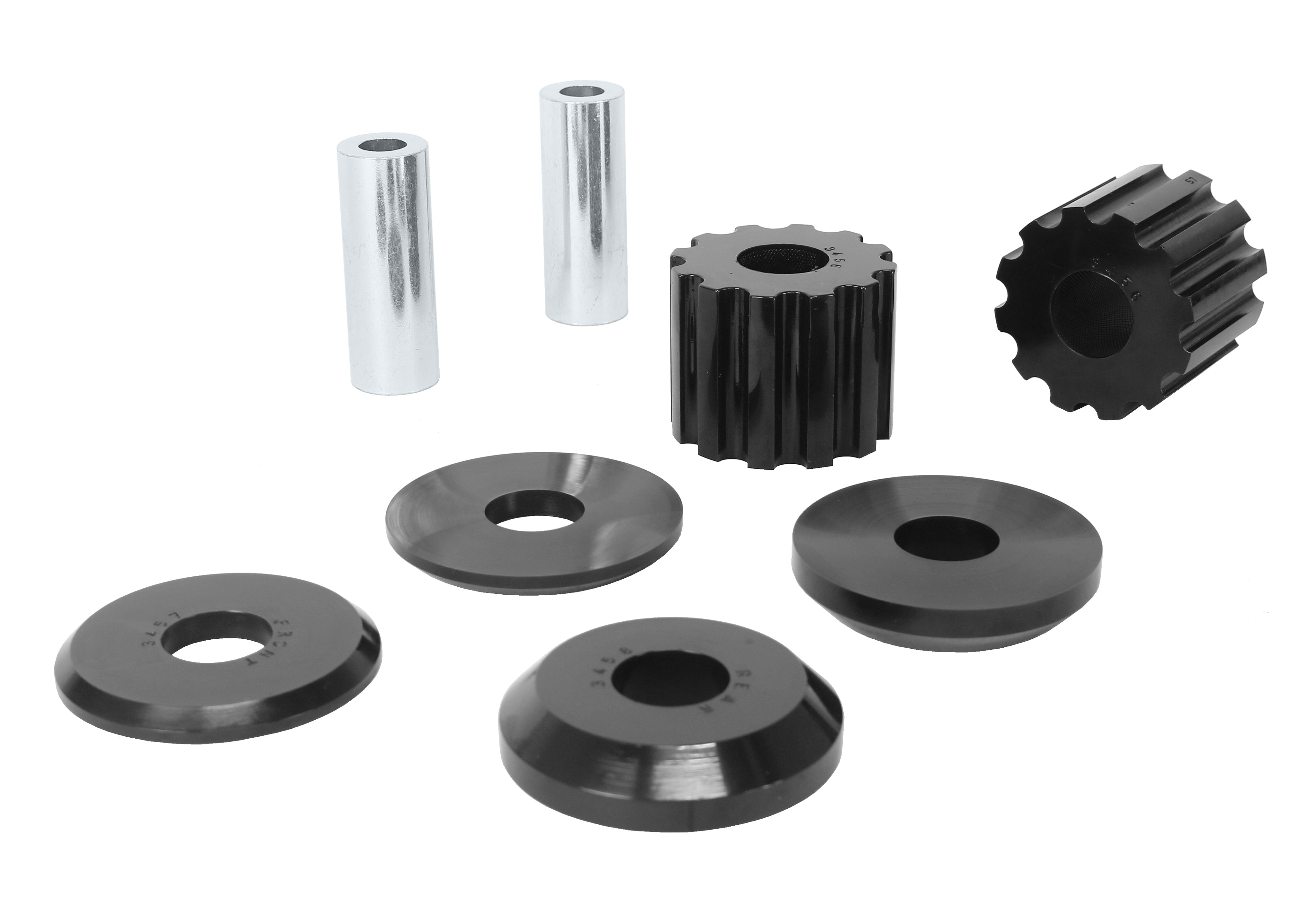

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2012-2016 Land Rover LR4 HSE Lux (L319). Order it as part number W53480. You receive 6 bushings and 2 tubes. It goes on the front of the vehicle.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Land Rover LR4: Rear Sway Bar Link.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Install guide: Written install instructions are included with the part.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Polyurethane construction.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W53480
Part Name Control Arm Bushing
Vehicle 2012-2016 Land Rover LR4 HSE Lux
Chassis Code L319
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 71.3 mm
Bushing Quantity 6 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 6 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012Land RoverLR44WD
2013Land RoverLR44WD
2014Land RoverLR44WD
2015Land RoverLR44WD
2016Land RoverLR44WD
