Product Details

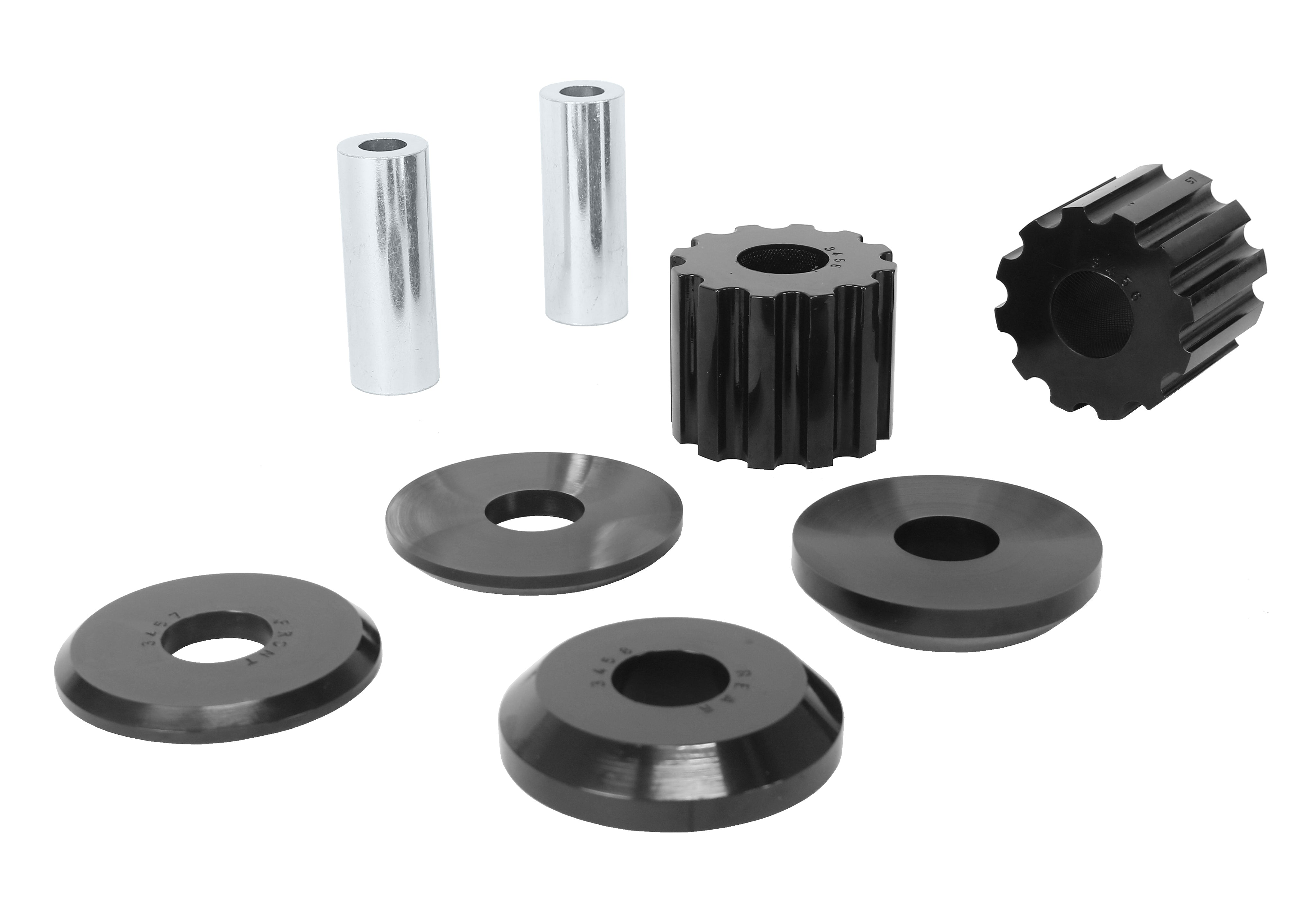

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2011-2016 Land Rover LR4 Base (L319). The kit contains 6 bushings and 2 tubes. Part number W53480. It goes on the front of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 3 hours. Get the car aligned once it is back on the ground. We also list Rear Sway Bar Link for the Land Rover LR4.

Features

  • Install guide: Written install instructions are included with the part.
  • Material: The part is made of polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number W53480
Part Name Control Arm Bushing
Vehicle 2011-2016 Land Rover LR4 Base
Chassis Code L319
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 71.3 mm
Bushing Quantity 6 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 6 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011Land RoverLR44WD
2012Land RoverLR44WD
2013Land RoverLR44WD
2014Land RoverLR44WD
2015Land RoverLR44WD
2016Land RoverLR44WD
