Product Details

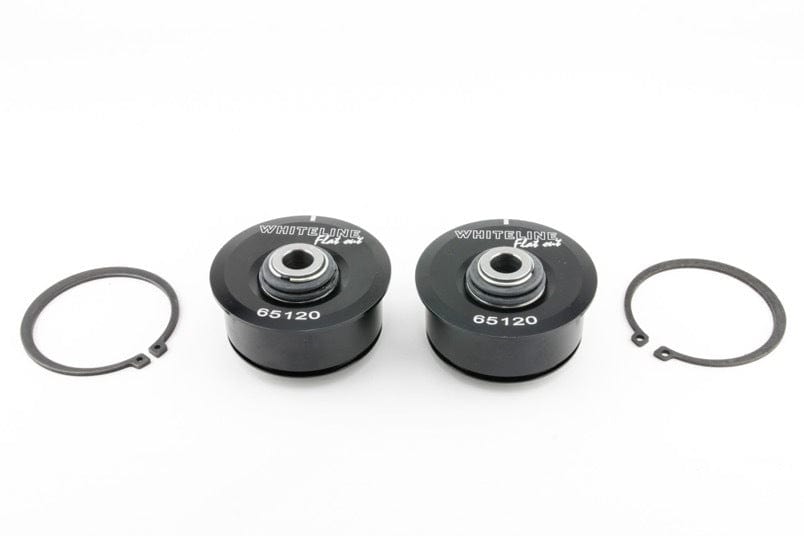

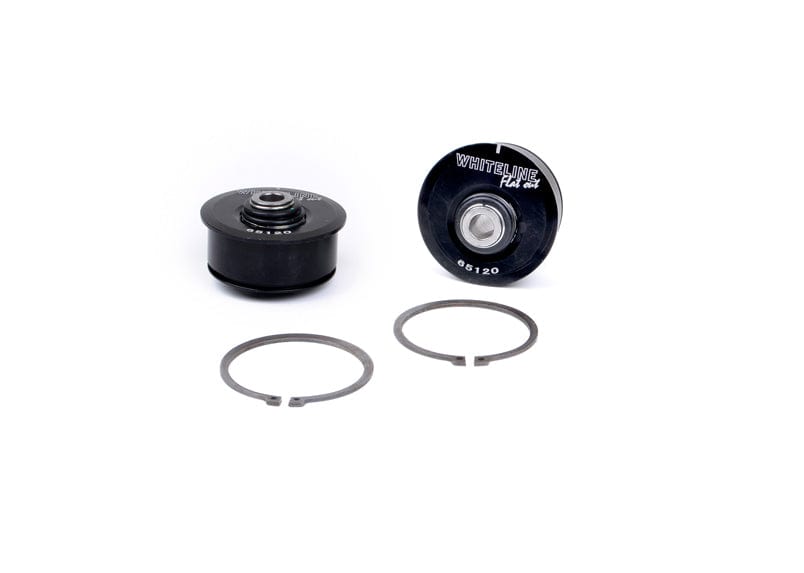

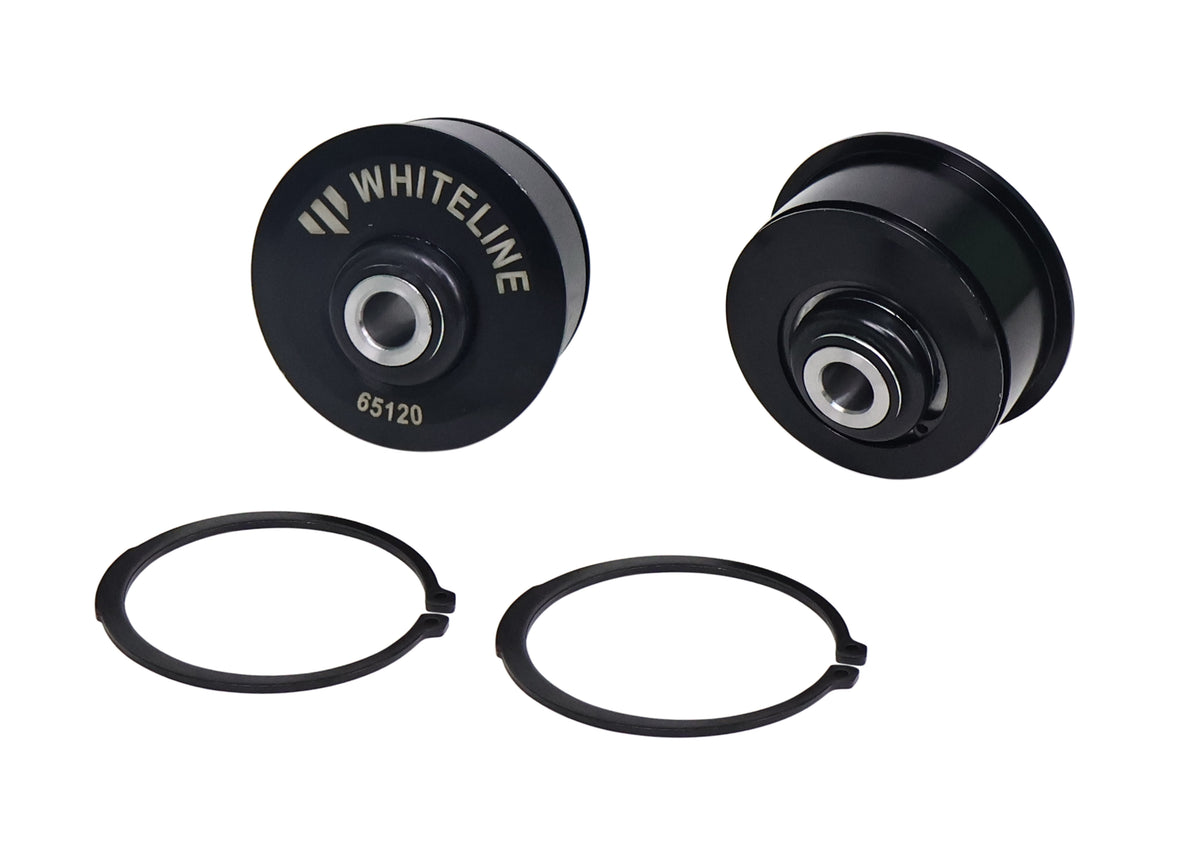

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2010 Mitsubishi Lancer Evolution SE (CY). Included: 2 alloy bushings. It goes on the front of the vehicle. Part number KCA400M. Application note: Alloy Bushings & Spherical Bearing: adds +0.5 degrees Caster + Anti-Lift motorsport.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Installation is rated difficult, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Lancer Evolution, see Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Install guide: Written install instructions are included with the part.
  • Caster: Adds caster to improve turn-in and directional stability.
  • Bump steer: Helps cut bump steer for steadier steering over bumps.
Specifications
Part Number KCA400M
Part Name Control Arm Bushing
Vehicle 2010 Mitsubishi Lancer Evolution SE
Drivetrain AWD
Chassis Code CY
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Length 54 mm
Bushing 1 Outer Diameter 76.1 mm
Bushing 2 Inner Diameter 14.2 mm
Bushing 2 Length 54 mm
Bushing 2 Outer Diameter 76.1 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Alloy Bushings
Material Alloy
Mounting Hardware Included No
Outside Diameter 76.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Alloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
