Product Details

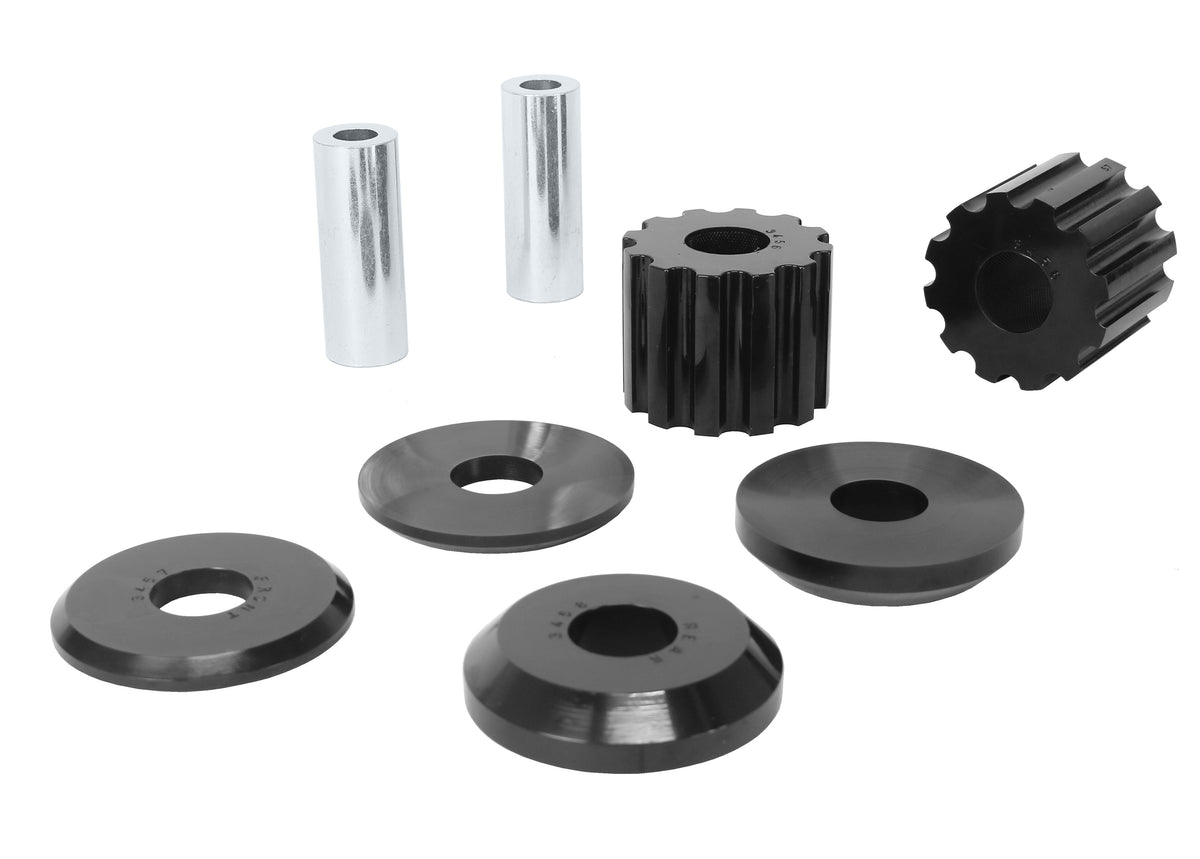

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2010 Land Rover LR4 V8 (L319). Order it as part number W53480. It goes on the front of the vehicle. Included: 6 bushings and 2 tubes.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the Land Rover LR4: Rear Sway Bar Link.

Features

  • Install guide: Written install instructions are included with the part.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Finish: The metal parts are powder coated for durability.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W53480
Part Name Control Arm Bushing
Vehicle 2010 Land Rover LR4 V8
Chassis Code L319
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 71.3 mm
Bushing Quantity 6 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 6 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010Land RoverLR44WD
