Product Details

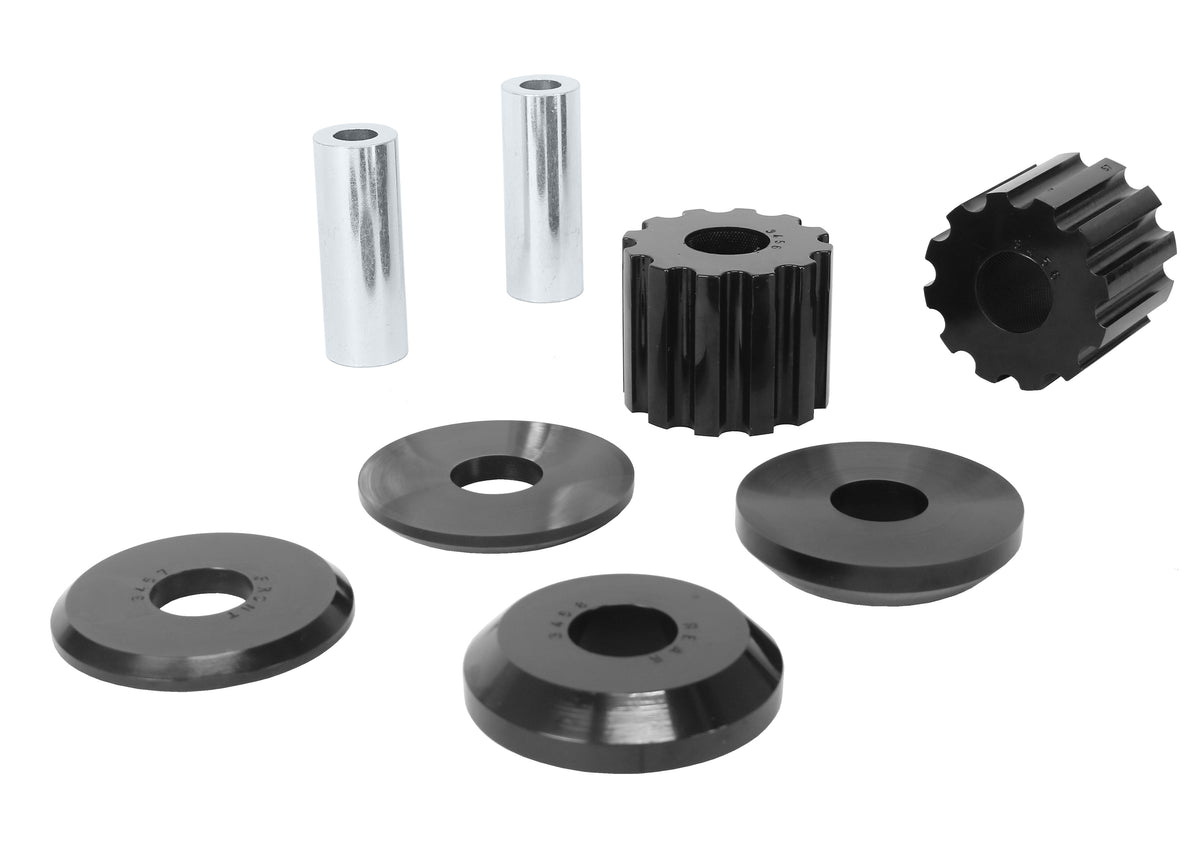

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2010-2016 Land Rover LR4 HSE (L319). This part is for the front of the vehicle. Order it as part number W53480. In the box: 6 bushings and 2 tubes.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Land Rover LR4, see Rear Sway Bar Link.

Features

  • Install guide: An install guide comes in the box.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Material: Made from polyurethane.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
Part Number W53480
Part Name Control Arm Bushing
Vehicle 2010-2016 Land Rover LR4 HSE
Chassis Code L319
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 71.3 mm
Bushing Quantity 6 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 6 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010Land RoverLR44WD
2011Land RoverLR44WD
2012Land RoverLR44WD
2013Land RoverLR44WD
2014Land RoverLR44WD
2015Land RoverLR44WD
2016Land RoverLR44WD
