Product Details

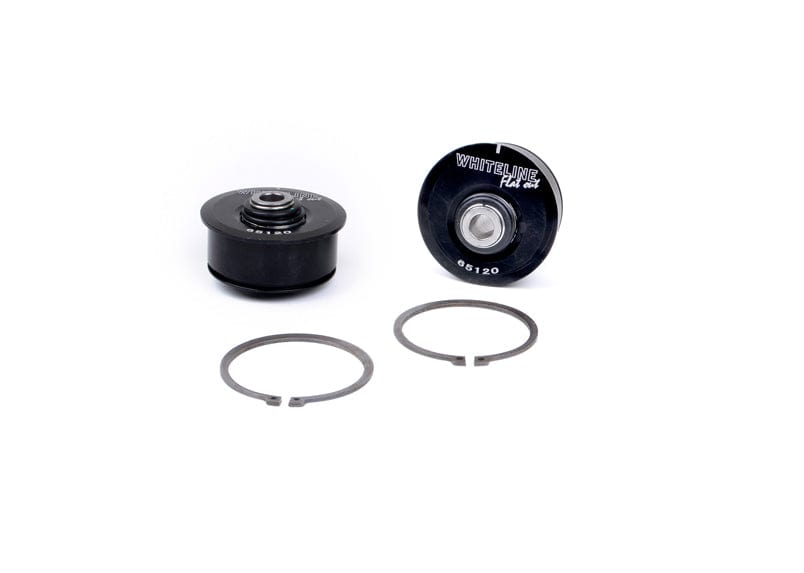

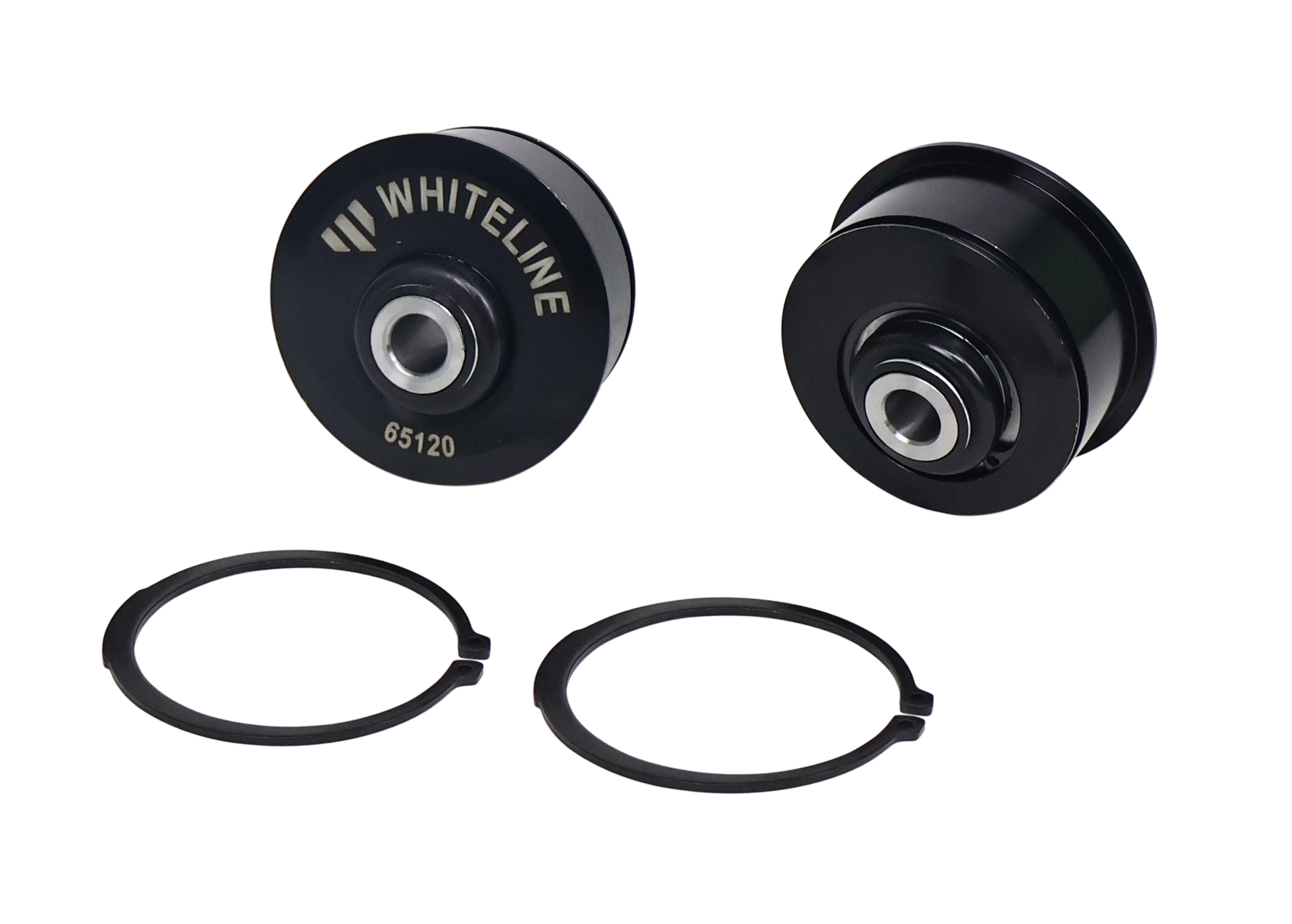

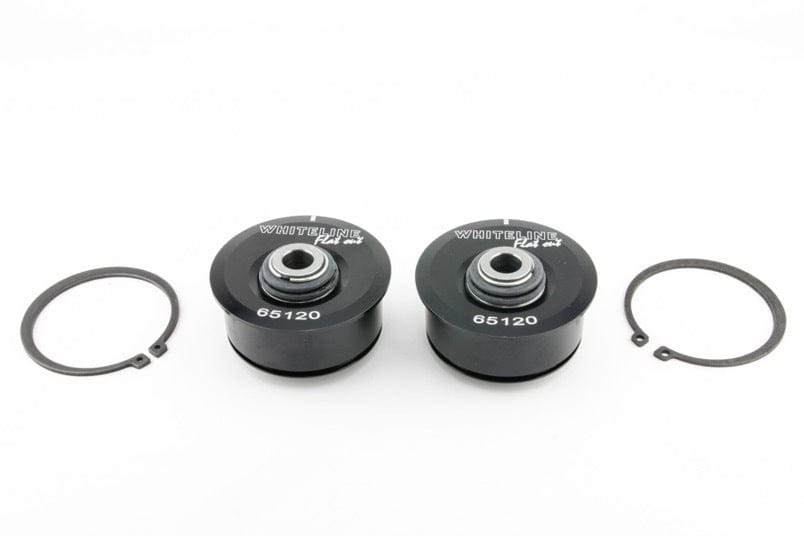

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2010-2011 Mitsubishi Lancer Evolution (CY). The kit contains 2 alloy bushings. Part number KCA400M. It goes on the front of the vehicle. Application note: Alloy Bushings & Spherical Bearing: adds +0.5 degrees Caster + Anti-Lift motorsport.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Expect a difficult job of about 2 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Lancer Evolution: Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Caster: Adds caster for steadier steering and better tire contact in roll.
  • Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
Specifications
Part Number KCA400M
Part Name Control Arm Bushing
Vehicle 2010-2011 Mitsubishi Lancer Evolution
Chassis Code CY
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Length 54 mm
Bushing 1 Outer Diameter 76.1 mm
Bushing 2 Inner Diameter 14.2 mm
Bushing 2 Length 54 mm
Bushing 2 Outer Diameter 76.1 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Alloy Bushings
Material Alloy
Mounting Hardware Included No
Outside Diameter 76.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Alloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2011MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
