Product Details

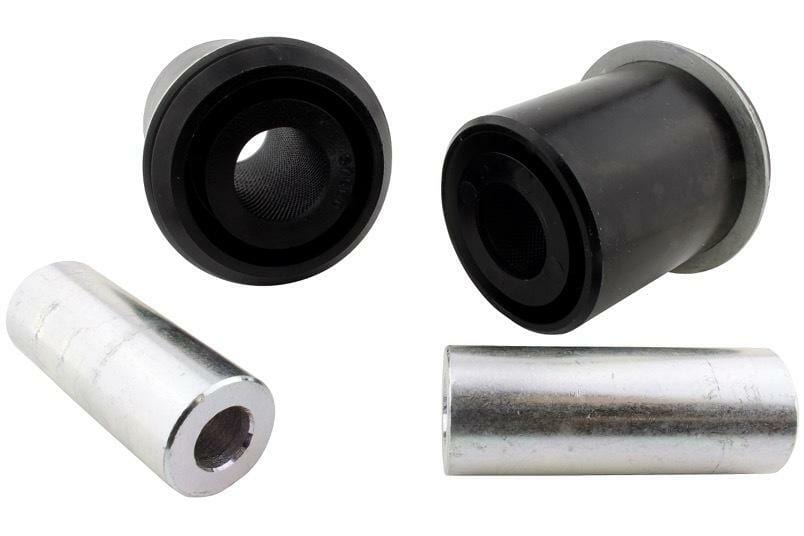

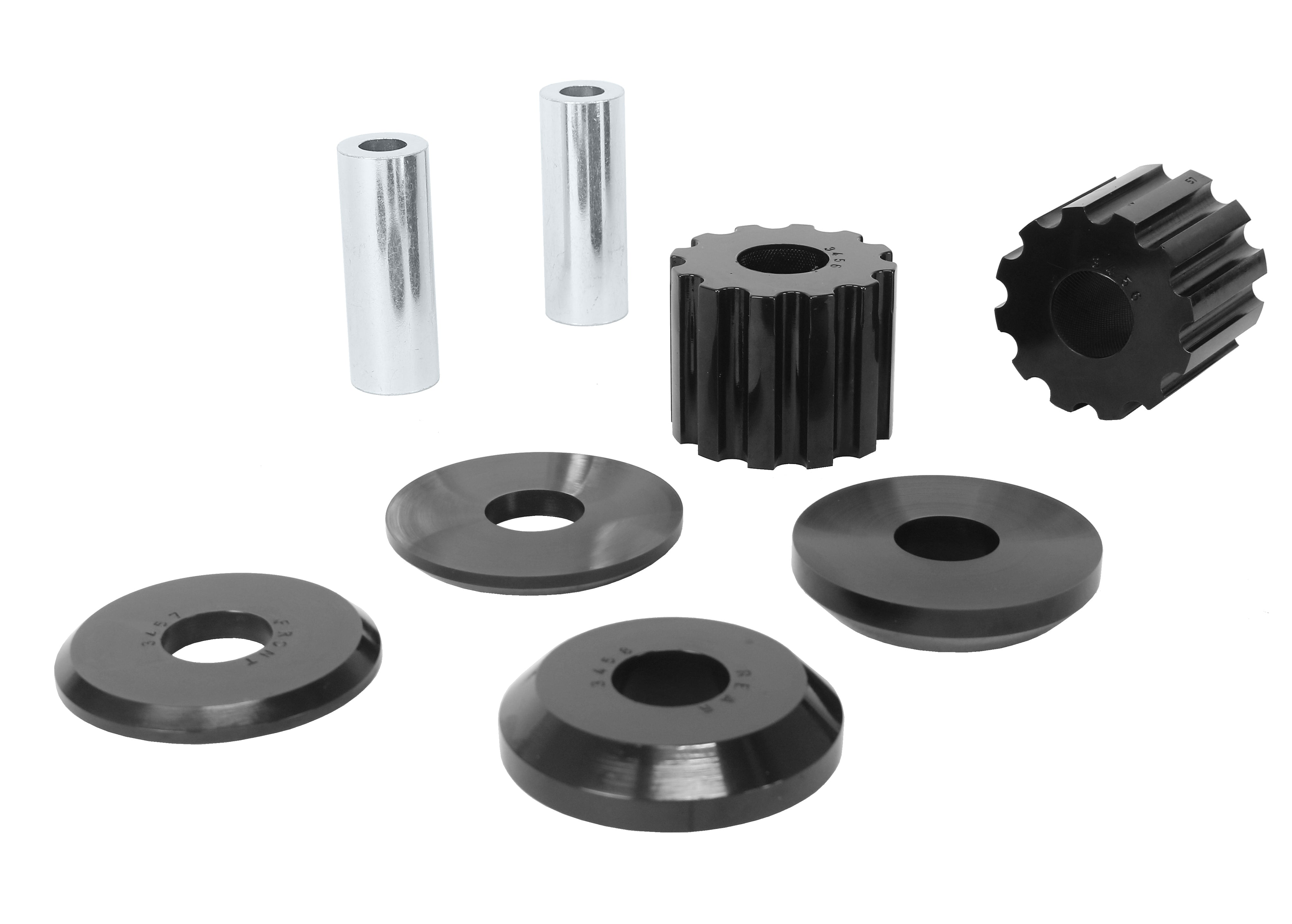

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2009 Land Rover LR3 HSE Lux (L319). This part is for the front of the vehicle. Order it as part number W53480. In the box: 6 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 3 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Land Rover LR3: Rear Sway Bar Link and Rear Control Arm Lower Front Bushing.

Features

  • Install guide: Instructions for fitting are packed in the box.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Finish: The metal parts are powder coated for durability.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Material: Polyurethane construction.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W53480
Part Name Control Arm Bushing
Vehicle 2009 Land Rover LR3 HSE Lux
Chassis Code L319
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 71.3 mm
Bushing Quantity 6 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 6 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009Land RoverLR34WD
