Product Details

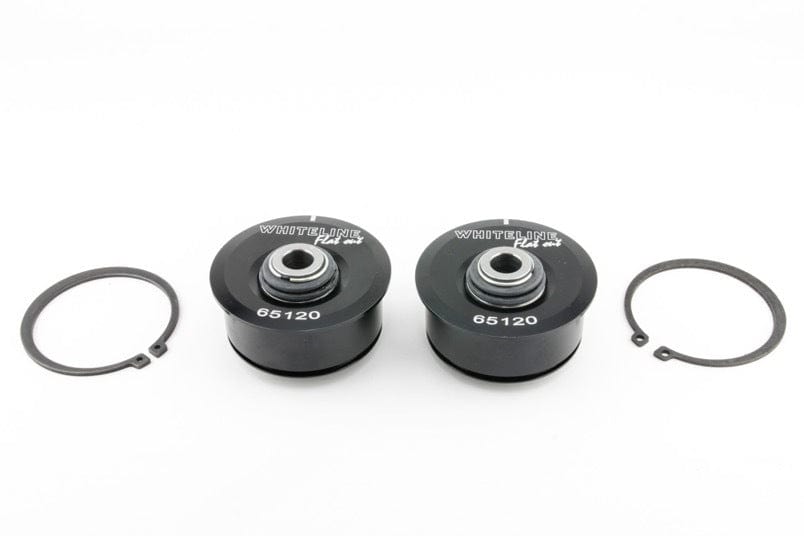

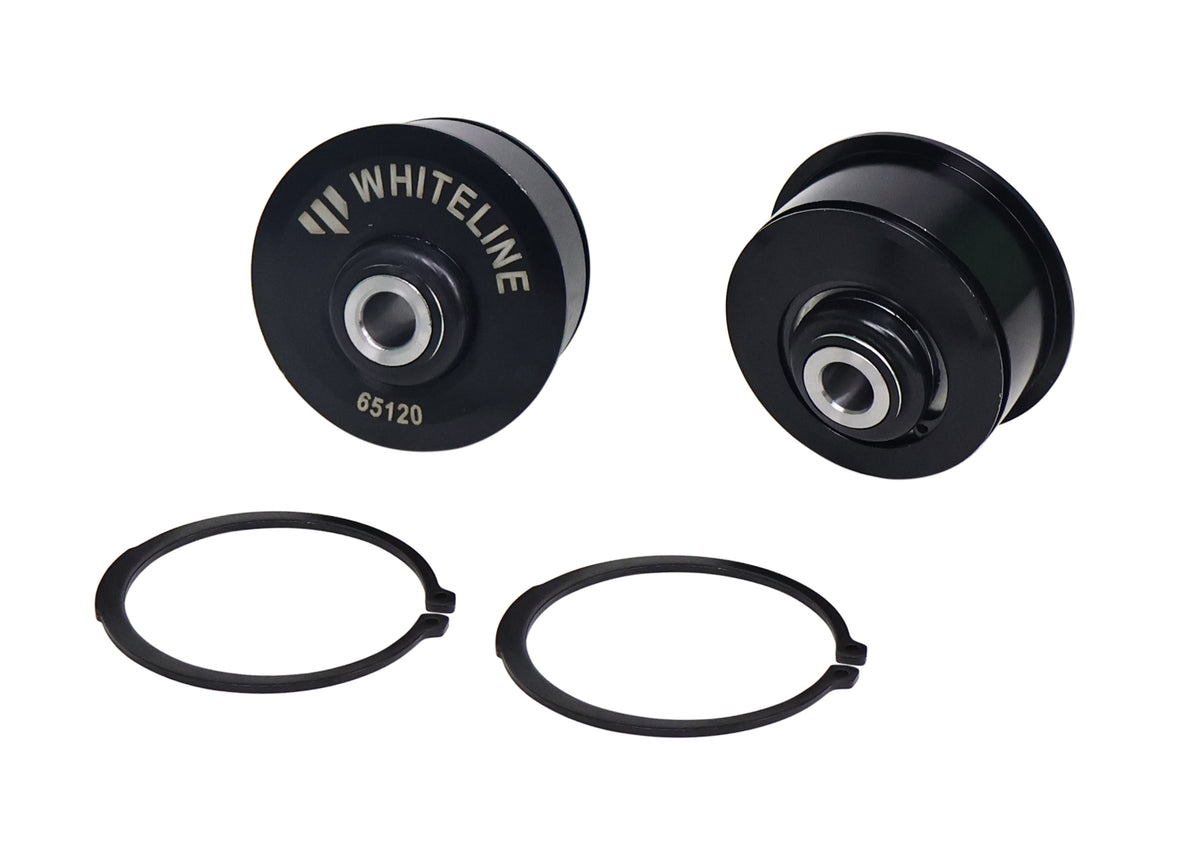

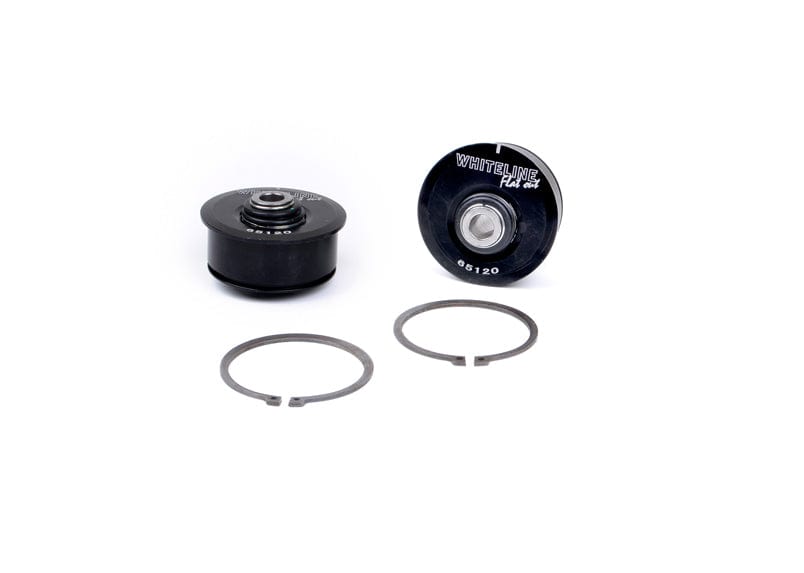

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2008-2015 Mitsubishi Lancer Evolution GSR, MR (CY). The kit contains 2 alloy bushings. Application note: Alloy Bushings & Spherical Bearing: adds +0.5 degrees Caster + Anti-Lift motorsport. Placement: front. The part number is KCA400M.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Whiteline rates the install as difficult and lists about 2 hours. An alignment is required after installation. Other Whiteline parts we list for the Lancer Evolution: Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Install guide: Instructions for fitting are packed in the box.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Caster: Adds caster for steadier steering and better tire contact in roll.
Specifications
Part Number KCA400M
Part Name Control Arm Bushing
Vehicle 2008-2015 Mitsubishi Lancer Evolution GSR, MR
Drivetrain AWD
Chassis Code CY
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Length 54 mm
Bushing 1 Outer Diameter 76.1 mm
Bushing 2 Inner Diameter 14.2 mm
Bushing 2 Length 54 mm
Bushing 2 Outer Diameter 76.1 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Alloy Bushings
Material Alloy
Mounting Hardware Included No
Outside Diameter 76.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Alloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2009MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2010MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2011MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2012MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2013MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2014MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
2015MitsubishiLancer EvolutionAWDAlloy Bushings & Spherical Bearing - Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT;
