Product Details

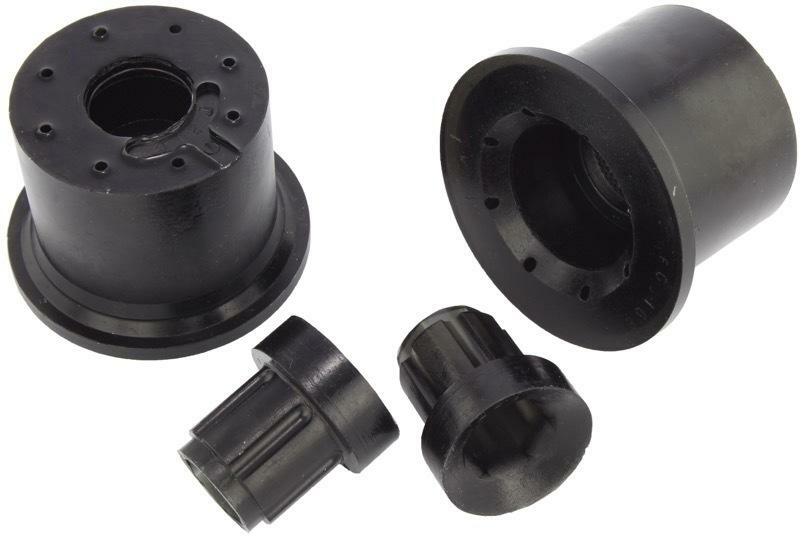

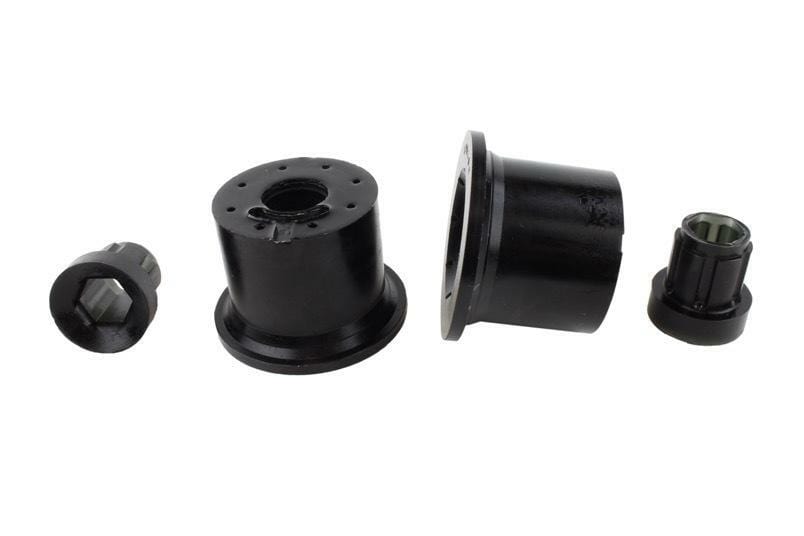

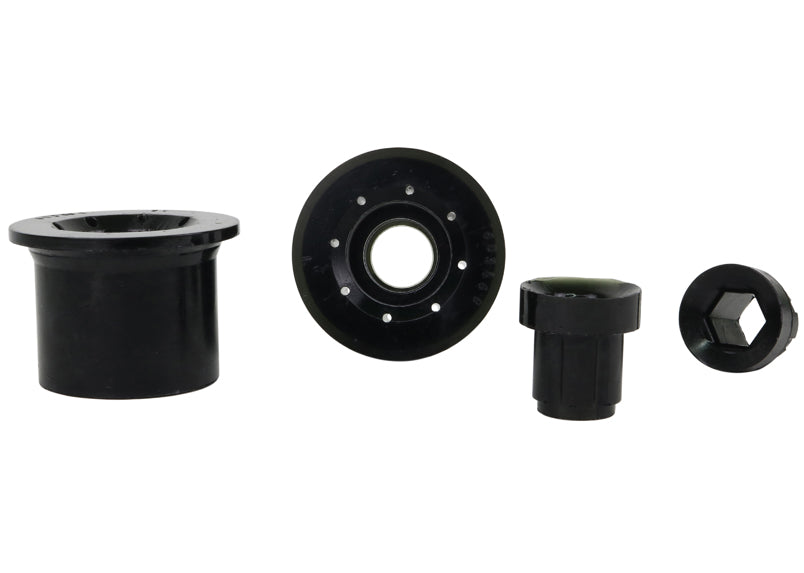

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2008-2014 Audi TT Base (8J). Part number W53196. In the box: 2 bushings. Application note: Standard Replacement. Position: front.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Audi TT, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Material: Made from polyurethane.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Install guide: Written install instructions are included with the part.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
Part Number W53196
Part Name Control Arm Bushing
Vehicle 2008-2014 Audi TT Base
Chassis Code 8J
Bushing 1 Inner Diameter 38.5 mm
Bushing 1 Outer Diameter 62.2 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Bushings
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008AudiTT4WDStandard Replacement
2008AudiTTFWDStandard Replacement
2009AudiTT4WDStandard Replacement
2009AudiTTFWDStandard Replacement
2010AudiTT4WDStandard Replacement
2010AudiTTFWDStandard Replacement
2011AudiTT4WDStandard Replacement
2011AudiTTFWDStandard Replacement
2012AudiTT4WDStandard Replacement
2012AudiTTFWDStandard Replacement
2013AudiTT4WDStandard Replacement
2013AudiTTFWDStandard Replacement
2014AudiTT4WDStandard Replacement
2014AudiTTFWDStandard Replacement
