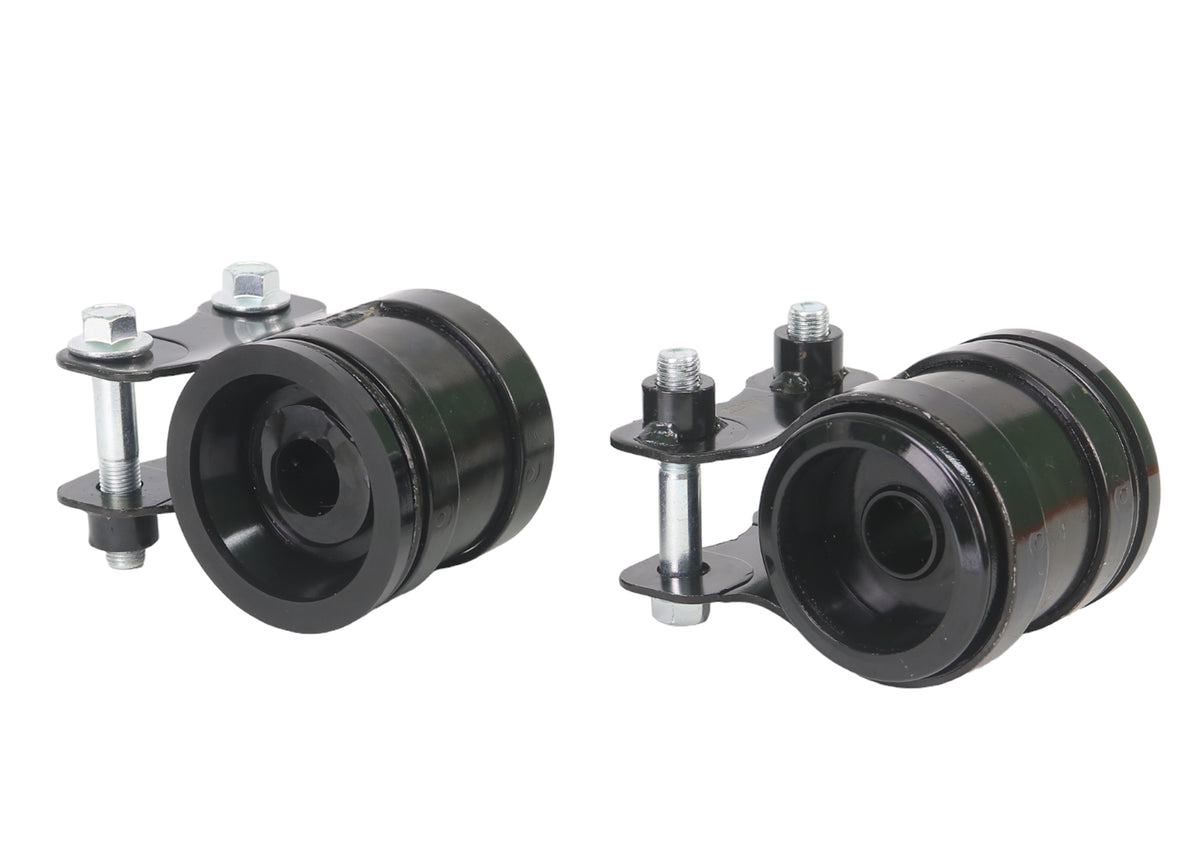

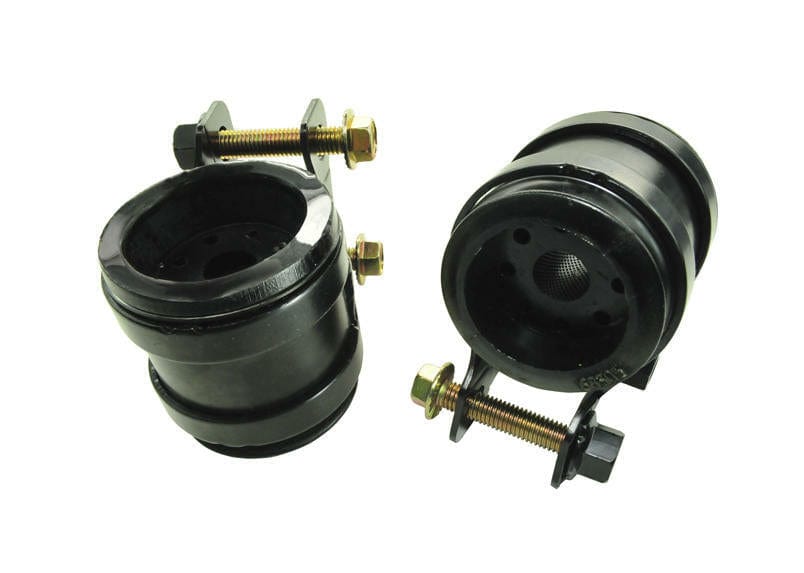

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2007-2010 Mazda 5 Grand Touring (CR). Whiteline part number: W53528. It goes on the front of the vehicle. In the box: 2 housings and 4 bolts. Application note: Standard Replacement: includes new housing.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect an easy job of about 2 hours. An alignment is required after installation. To go with it on the Mazda 5, see Adjustable Rear Upper Control Arm Set, Front Steering Bump Steer Correction Kit, and Rear Control Arms.

Features

  • Finish: An E-coat finish protects the metal from corrosion.
  • Easy to fit: Installation does not call for special skills or tools.
  • Material: Polyurethane construction.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W53528
Part Name Control Arm Bushing
Vehicle 2007-2010 Mazda 5 Grand Touring
Chassis Code CR
Bushing 1 Inner Diameter 26 mm
Bushing 1 Length 80.5 mm
Bushing 1 Outer Diameter 68 mm
Bushing 2 Inner Diameter 26 mm
Bushing 2 Length 80.5 mm
Bushing 2 Outer Diameter 68 mm
Bushing Quantity 2
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 2
Kit Contents 2 Housings, 4 Bolts
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 68 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement - includes new housing

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MazdaMazda 5FWDStandard Replacement - includes new housing
2008MazdaMazda 5FWDStandard Replacement - includes new housing
2009MazdaMazda 5FWDStandard Replacement - includes new housing
2010MazdaMazda 5FWDStandard Replacement - includes new housing
