Product Details

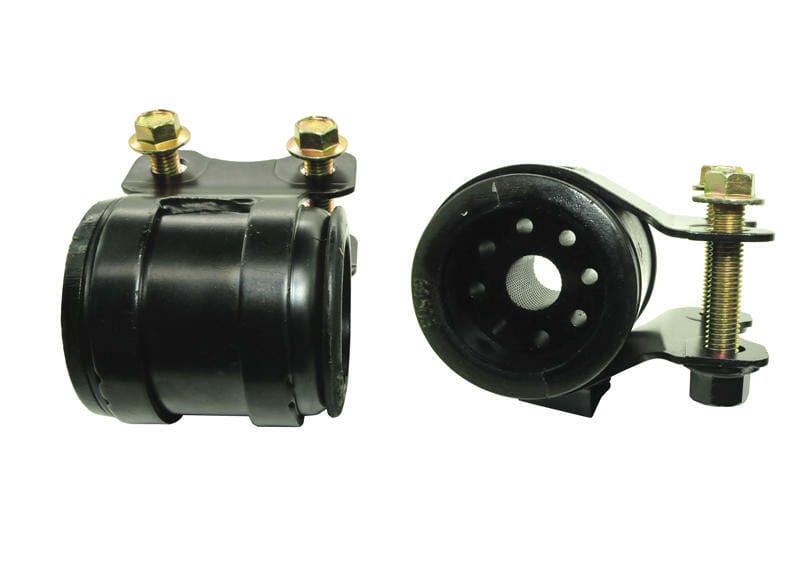

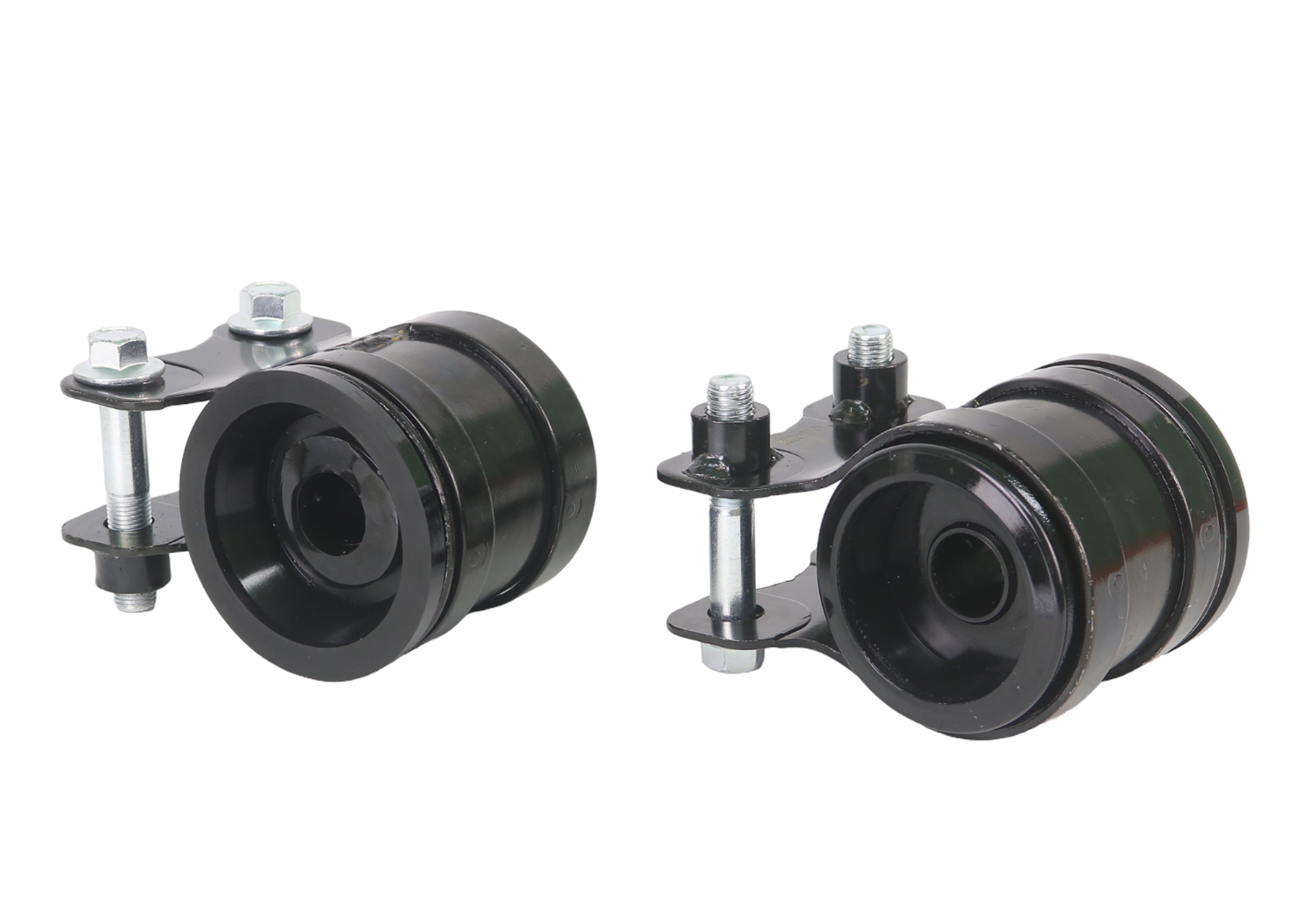

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2005 Volvo V50 i (P1). The kit contains 2 housings and 4 bolts. Position: front. Whiteline's note for this fit: Standard Replacement: includes new housing. Order it as part number W53528.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.
Expect an easy job of about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Volvo V50.
Features
- Material: Built from polyurethane.
- Compliance voids: Molded voids give the bushing room to flex where it needs to.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Hardware: The kit includes mounting hardware.
Specifications
| Part Number | W53528 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005 Volvo V50 i |
| Drivetrain | FWD/AWD |
| Chassis Code | P1 |
| Bushing 1 Inner Diameter | 26 mm |
| Bushing 1 Length | 80.5 mm |
| Bushing 1 Outer Diameter | 68 mm |
| Bushing 2 Inner Diameter | 26 mm |
| Bushing 2 Length | 80.5 mm |
| Bushing 2 Outer Diameter | 68 mm |
| Bushing Quantity | 2 |
| Grade Type | Regular |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Housings, 4 Bolts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Outside Diameter | 68 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement - includes new housing |
