Product Details

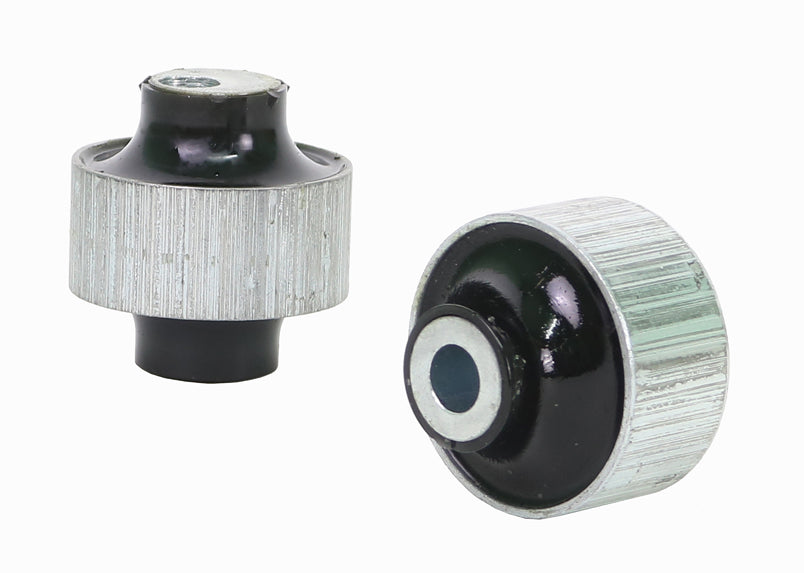

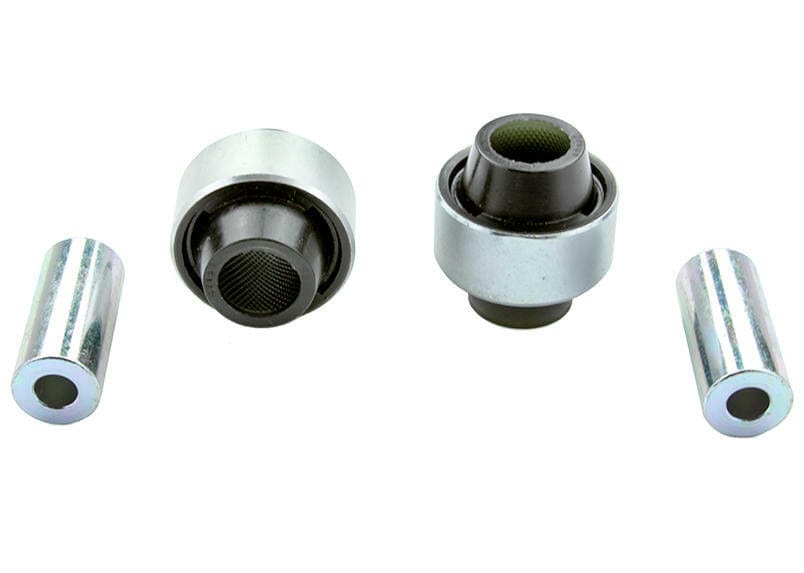

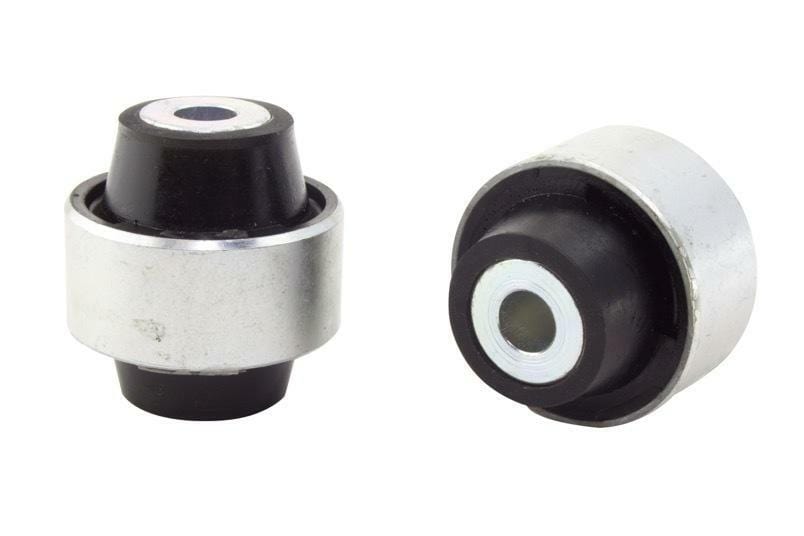

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2004-2006 Scion xB Base (NBC). Application note: Standard Replacement. In the box: 2 shell bushings and 2 tubes. It goes on the front of the vehicle. Order it as part number W53299.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 2.5 hours. Plan on a wheel alignment afterward. To go with it on the Scion xB, see 14mm Adjustable Front Camber Bolts and Front Sway Bar Link Bushing Kit.
Features
- Finish: The metal parts are powder coated for durability.
- Bonded design: The bushing is bonded for extra strength under heavy loads.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Install guide: Written install instructions are included with the part.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
| Part Number | W53299 |
| Part Name | Control Arm Bushing |
| Vehicle | 2004-2006 Scion xB Base |
| Chassis Code | NBC |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 54.9 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
