Product Details

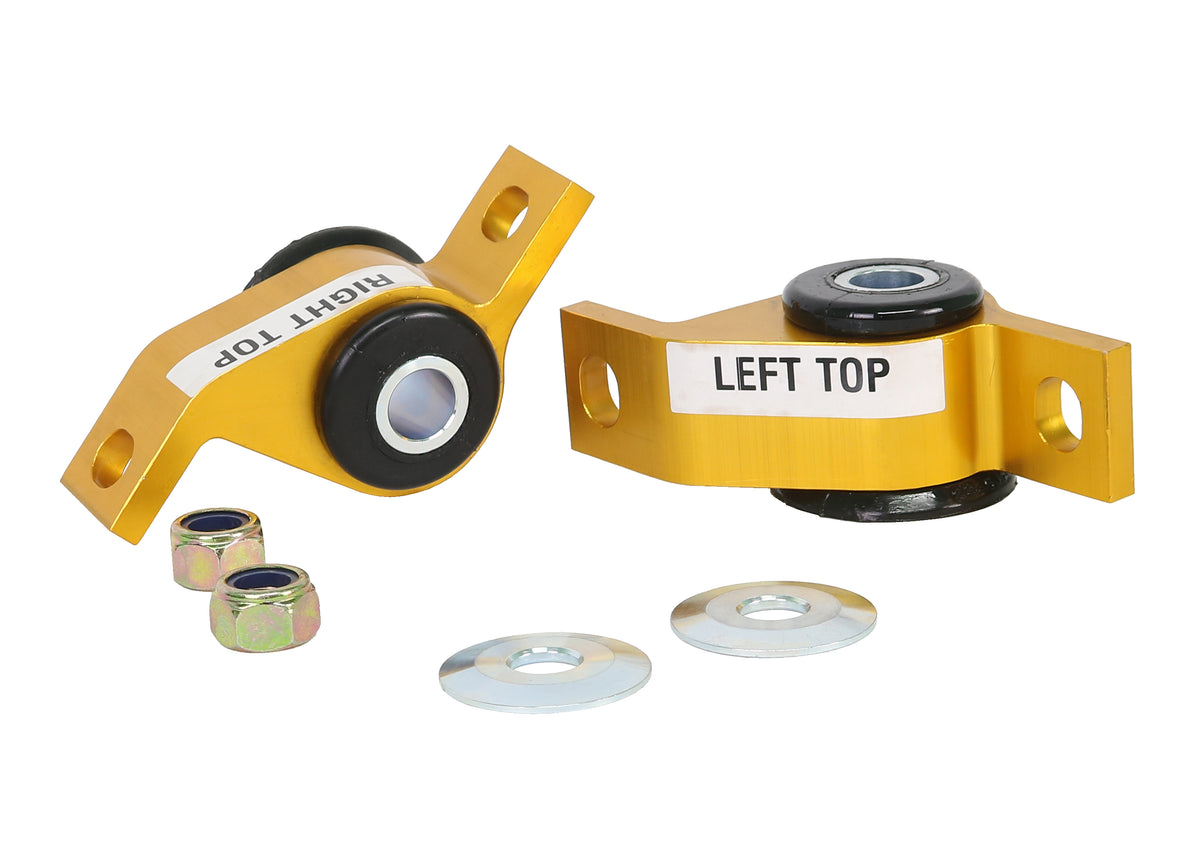

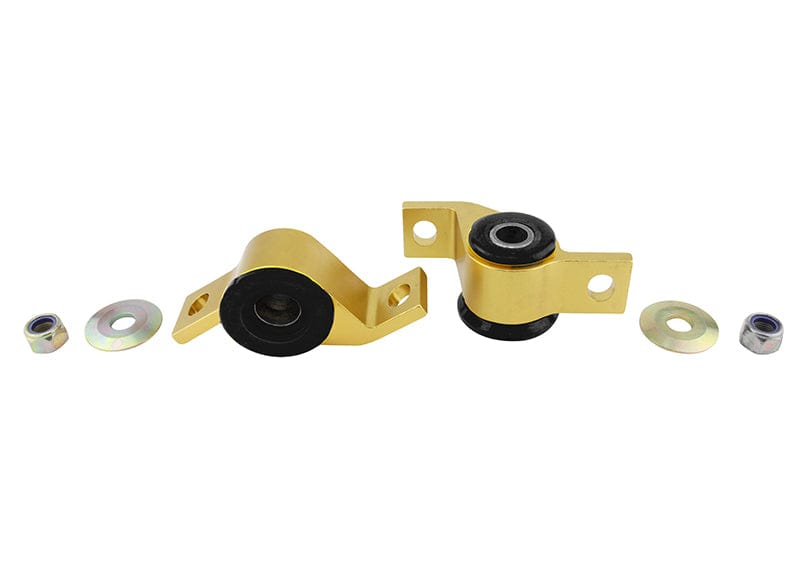

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 1997-1999 Subaru Legacy Outback Limited (BE/BH). It goes on the front of the vehicle. Included: 2 housings, 2 washers, and 2 nuts. Application note: Adds 0.5 degrees Caster & Anti-Lift. Chassis code: BE/BH. Whiteline part number: KCA319A.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. Other Whiteline parts we list for the Legacy Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
  • Install guide: Instructions for fitting are packed in the box.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number KCA319A
Part Name Control Arm Bushing
Vehicle 1997-1999 Subaru Legacy Outback Limited
Drivetrain AWD
Chassis Code BE/BH
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Housings, 2 Washers, 2 Nuts
Mounting Hardware Included No
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5 Degrees Caster & Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1997SubaruLegacyAWDAdds 0.5 Degrees Caster & Anti-Lift
1997SubaruOutbackAWDAdds 0.5 Degrees Caster & Anti-Lift
1998SubaruLegacyAWDAdds 0.5 Degrees Caster & Anti-Lift
1998SubaruOutbackAWDAdds 0.5 Degrees Caster & Anti-Lift
1999SubaruLegacyAWDAdds 0.5 Degrees Caster & Anti-Lift
1999SubaruOutbackAWDAdds 0.5 Degrees Caster & Anti-Lift
