Product Details

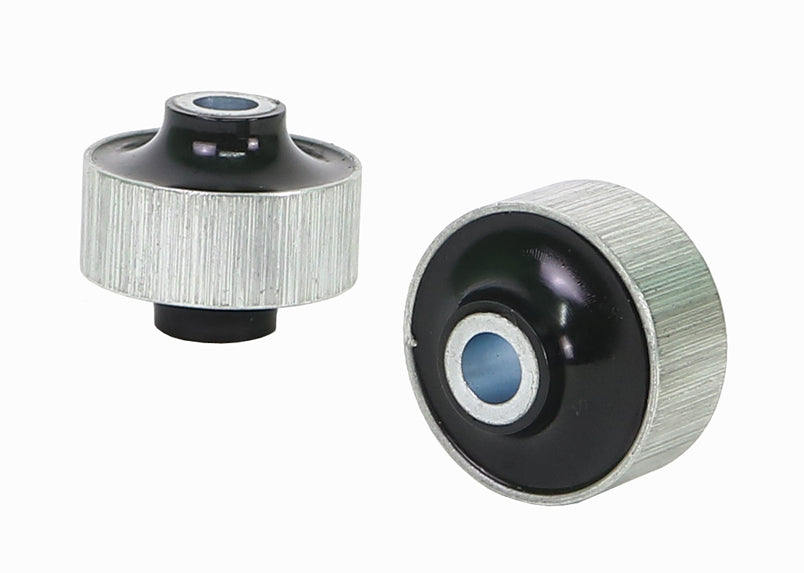

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 1995-1999 Toyota Avalon XL, XLS (XX10). Whiteline's note for this fit: Standard Replacement. The part number is W51721. It goes on the front of the vehicle. Included: 2 shell bushings.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. We also list 17mm Adjustable Front Camber Bolts, Front Steering Rack And Pinion Mount Bushing, and Rear Sway Bar Link for the Avalon.

Features

  • Material: Made from polyurethane.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Install guide: Instructions for fitting are packed in the box.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
Specifications
Part Number W51721
Part Name Control Arm Bushing
Vehicle 1995-1999 Toyota Avalon XL, XLS
Chassis Code XX10
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Outer Diameter 60.2 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1995ToyotaAvalonFWDStandard Replacement
1996ToyotaAvalonFWDStandard Replacement
1997ToyotaAvalonFWDStandard Replacement
1998ToyotaAvalonFWDStandard Replacement
1999ToyotaAvalonFWDStandard Replacement
