Product Details

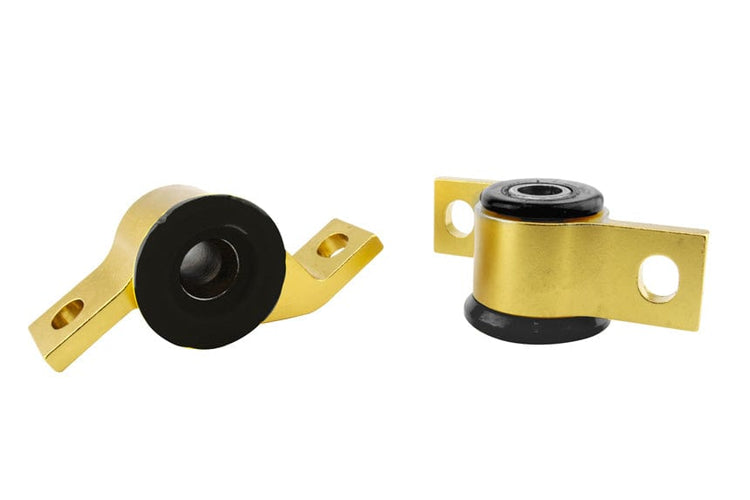

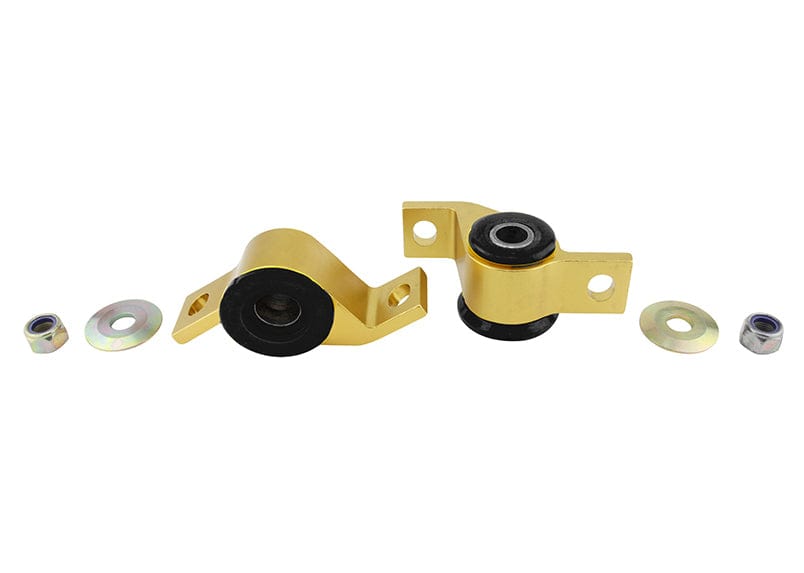

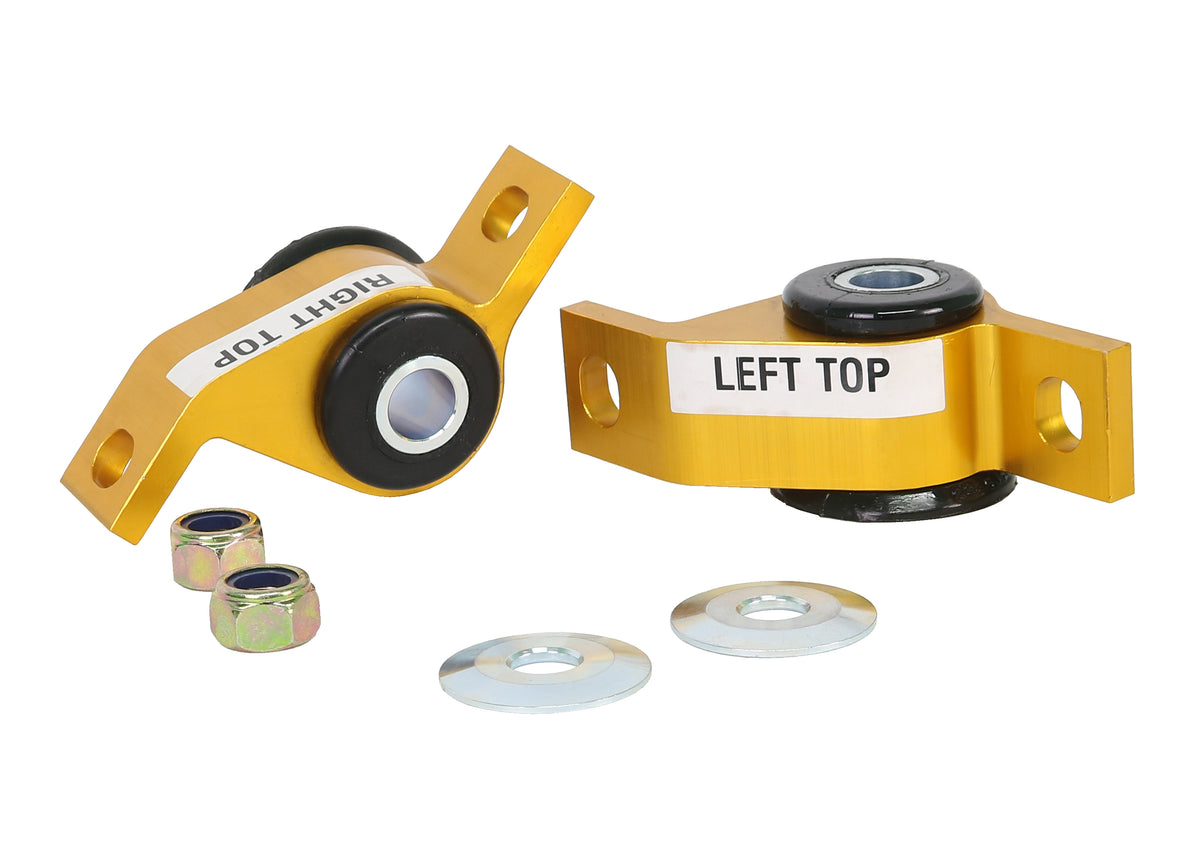

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 1995-1996 Subaru Impreza WRX LX (GC/GF). The part number is KCA319A. Placement: front. In the box: 2 housings, 2 washers, and 2 nuts. Whiteline's note for this fit: Adds 0.5 degrees Caster & Anti-Lift.
This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.
Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Impreza WRX LX, see 14mm Adjustable Front Camber Bolts, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.
Features
- Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
- Install guide: Whiteline packs an install guide with it.
- Anodized alloy: The alloy carries an anodized finish for durability.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Finish: The metal parts are powder coated for durability.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
| Part Number | KCA319A |
| Part Name | Control Arm Bushing |
| Vehicle | 1995-1996 Subaru Impreza WRX LX |
| Drivetrain | AWD |
| Chassis Code | GC/GF |
| Bushing 1 Inner Diameter | 20 mm |
| Bushing 1 Length | 52.5 mm |
| Bushing 1 Outer Diameter | 39.5 mm |
| Bushing 2 Inner Diameter | 20 mm |
| Bushing 2 Length | 52.5 mm |
| Bushing 2 Outer Diameter | 39.5 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Housings, 2 Washers, 2 Nuts |
| Mounting Hardware Included | No |
| Outside Diameter | 39.5 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5 Degrees Caster & Anti-Lift |
