Product Details

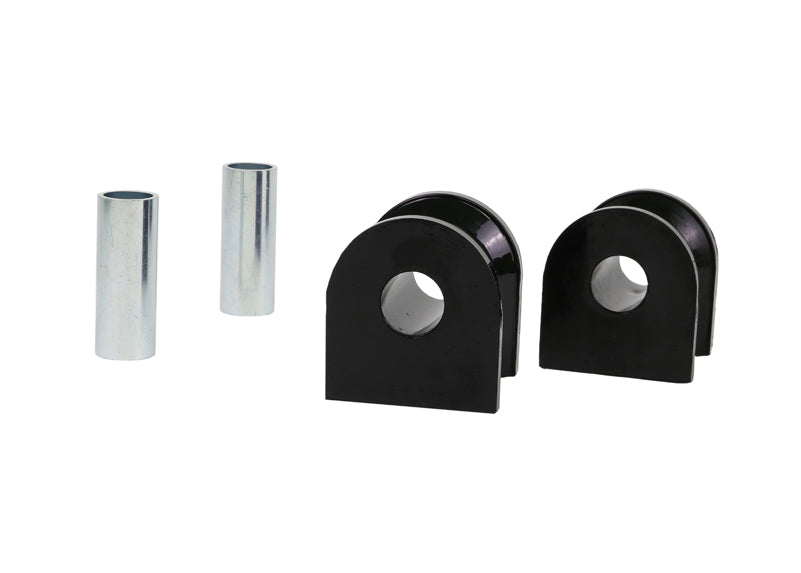

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 1988-1991 Toyota Corolla GTS, SR5 (E90). In the box: 2 bushings and 2 tubes. Whiteline's note for this fit: Standard Replacement. It goes on the front of the vehicle. Part number W51499.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. To go with it on the Corolla, see Adjustable Rear Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Sway Bar Washer Kit.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Material: The part is made of polyurethane.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
Specifications
Part Number W51499
Part Name Control Arm Bushing
Vehicle 1988-1991 Toyota Corolla GTS, SR5
Chassis Code E90
Bushing 1 Inner Diameter 18.2 mm
Bushing 1 Outer Diameter 58 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1988ToyotaCorollaStandard Replacement
1989ToyotaCorollaStandard Replacement
1990ToyotaCorollaStandard Replacement
1991ToyotaCorollaStandard Replacement
