Product Details

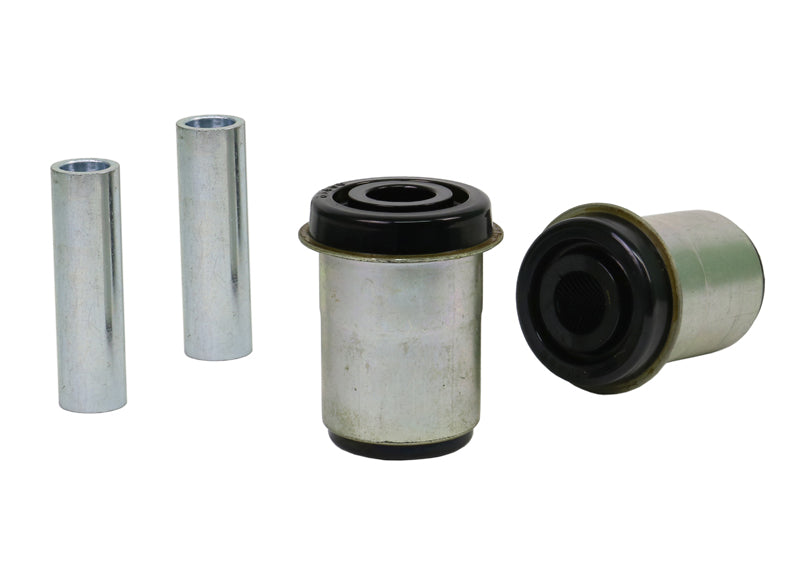

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 1984-1993 Ford Mustang LX (Fox). Chassis code: Fox. In the box: 2 shell bushings, 2 tubes, and grease. Whiteline part number: W53504. Application note: Exclude HD suspension 1979-1982. Position: front.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 2 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Mustang: Front Sway Bar Link Kit, Front Lower Ball Joint, and Rear Upper Control Arms.

Features

  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Material: The part is made of polyurethane.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W53504
Part Name Control Arm Bushing
Vehicle 1984-1993 Ford Mustang LX
Drivetrain RWD
Chassis Code Fox
Bushing 1 Inner Diameter 16.2 mm
Bushing 1 Outer Diameter 51 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes, Grease
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Exclude HD suspension 1979-1982

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1984FordMustangRWDExclude HD suspension 1979-1982
1985FordMustangRWDExclude HD suspension 1979-1982
1986FordMustangRWDExclude HD suspension 1979-1982
1987FordMustangRWDExclude HD suspension 1979-1982
1988FordMustangRWDExclude HD suspension 1979-1982
1989FordMustangRWDExclude HD suspension 1979-1982
1990FordMustangRWDExclude HD suspension 1979-1982
1991FordMustangRWDExclude HD suspension 1979-1982
1992FordMustangRWDExclude HD suspension 1979-1982
1993FordMustangRWDExclude HD suspension 1979-1982
