Product Details

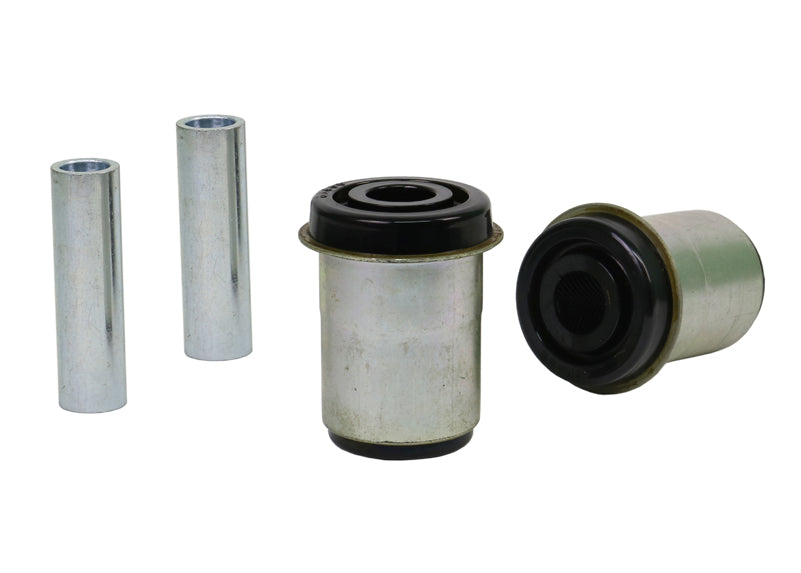

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 1984-1986 Ford Mustang SVO (Fox). Included: 2 shell bushings, 2 tubes, and grease. It goes on the front of the vehicle. The part number is W53504. Application note: Exclude HD suspension 1979-1982.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a difficult job of about 2 hours. An alignment is required after installation. Other Whiteline parts we list for the Mustang: Front Sway Bar Link Kit, Front Lower Ball Joint, and Rear Upper Control Arms.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Material: The part is made of polyurethane.
- Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
| Part Number | W53504 |
| Part Name | Control Arm Bushing |
| Vehicle | 1984-1986 Ford Mustang SVO |
| Drivetrain | RWD |
| Chassis Code | Fox |
| Bushing 1 Inner Diameter | 16.2 mm |
| Bushing 1 Outer Diameter | 51 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Shell Bushings, 2 Tubes, Grease |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Exclude HD suspension 1979-1982 |
