Product Details

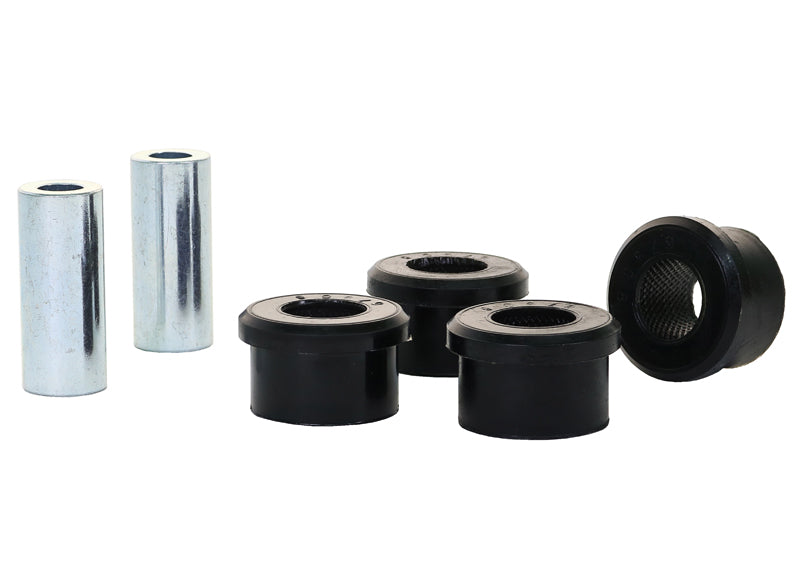

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2019-2025 Kia Niro EV (SG2). This part is for the front of the vehicle. Order it as part number W53492. In the box: 4 bushings and 2 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a difficult job of about 2.5 hours. Plan on a wheel alignment afterward. To go with it on the Niro, see 14mm Adjustable Front Camber Bolts.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Material: Built from polyurethane.
- Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
| Part Number | W53492 |
| Part Name | Control Arm Bushing |
| Vehicle | 2019-2025 Kia Niro EV |
| Chassis Code | SG2 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37.7 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
