Product Details

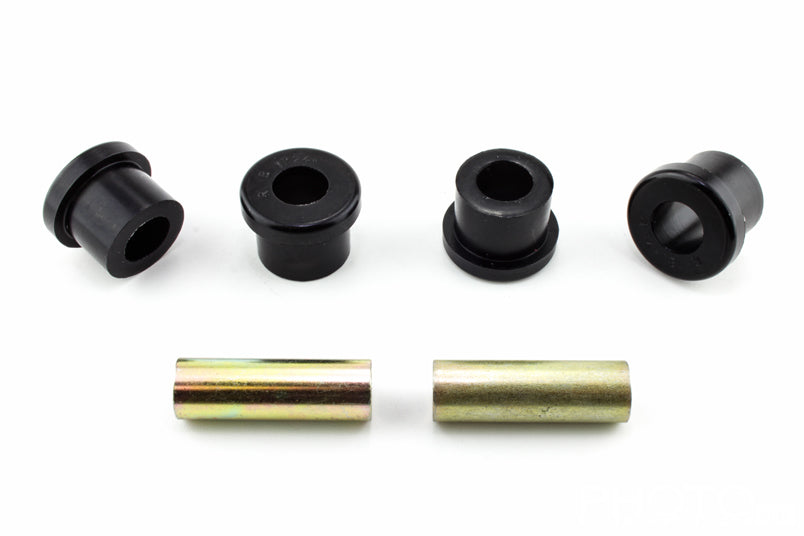

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2003-2014 Toyota Matrix (E130). In the box: 4 bushings and 2 tubes. Position: front. Order it as part number W51724.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. We also list 17mm Adjustable Front Camber Bolts and Heavy Duty 22mm Rear Sway Bar for the Matrix.

Features

  • Material: Made from polyurethane.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Easy to fit: Installation does not call for special skills or tools.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W51724
Part Name Control Arm Bushing
Vehicle 2003-2014 Toyota Matrix
Chassis Code E130
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 33 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2003ToyotaMatrix
2004ToyotaMatrix
2005ToyotaMatrix
2006ToyotaMatrix
2007ToyotaMatrix
2008ToyotaMatrix
2009ToyotaMatrix
2010ToyotaMatrix
2011ToyotaMatrix
2012ToyotaMatrix
2013ToyotaMatrix
2014ToyotaMatrix
