Product Details

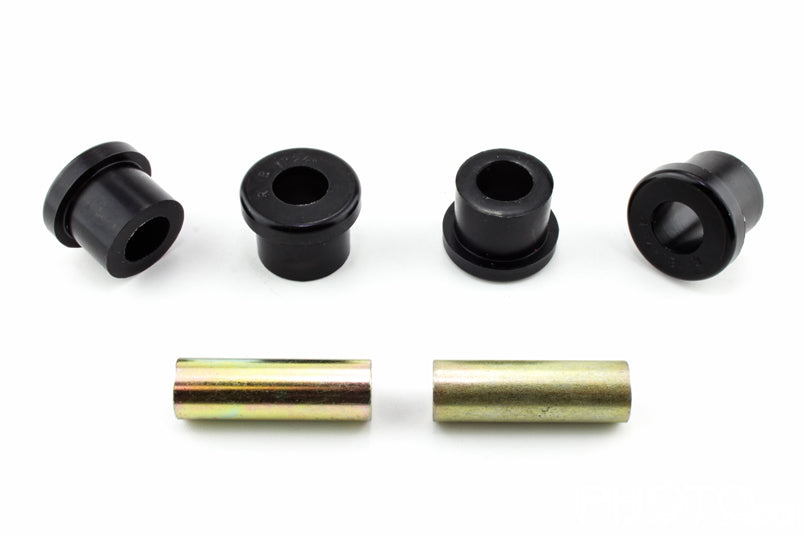

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2003-2010 Pontiac Vibe (MC). Order it as part number W51724. The kit contains 4 bushings and 2 tubes. It goes on the front of the vehicle.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Vibe: 17mm Adjustable Front Camber Bolts and Heavy Duty 22mm Rear Sway Bar.
Features
- Easy to fit: Installation does not call for special skills or tools.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Material: Polyurethane construction.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | W51724 |
| Part Name | Control Arm Bushing |
| Vehicle | 2003-2010 Pontiac Vibe |
| Drivetrain | FWD/AWD |
| Chassis Code | MC |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 33 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
