Product Details

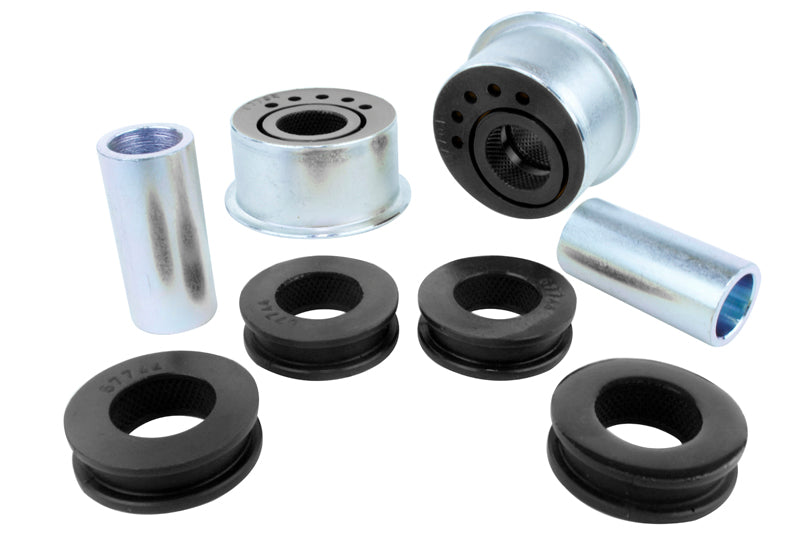

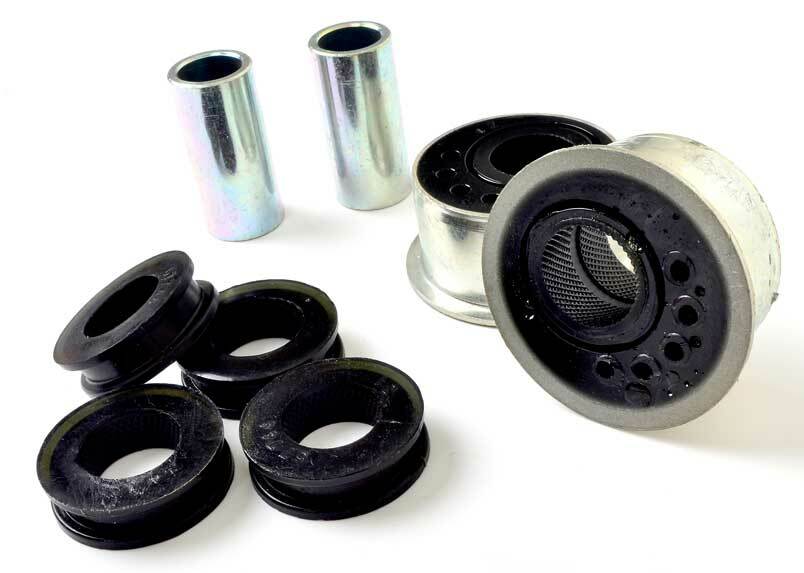

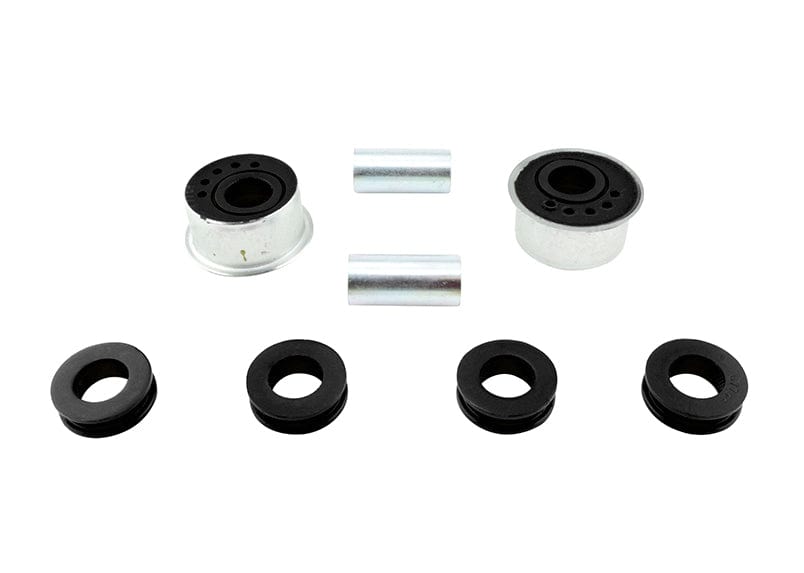

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2016 Subaru BRZ Series.HyperBlue (ZC6). Application note: Adds 0.5 degrees Caster & anti-dive geometry. The part number is KCA434. The kit contains 2 shell bushings, 4 bushings, and 2 tubes. This part is for the front of the vehicle.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Subaru BRZ: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Material: Built from polyurethane.
  • Install guide: Written install instructions are included with the part.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
Specifications
Part Number KCA434
Part Name Control Arm Bushing
Vehicle 2016 Subaru BRZ Series.HyperBlue
Chassis Code ZC6
Bushing 1 Inner Diameter 19.3 mm
Bushing 1 Outer Diameter 60.1 mm
Bushing Quantity 2 Shell Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Shell Bushings, 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5 Degree Caster & anti-dive geometry

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016SubaruBRZRWDAdds 0.5 Degree Caster & anti-dive geometry
