Product Details

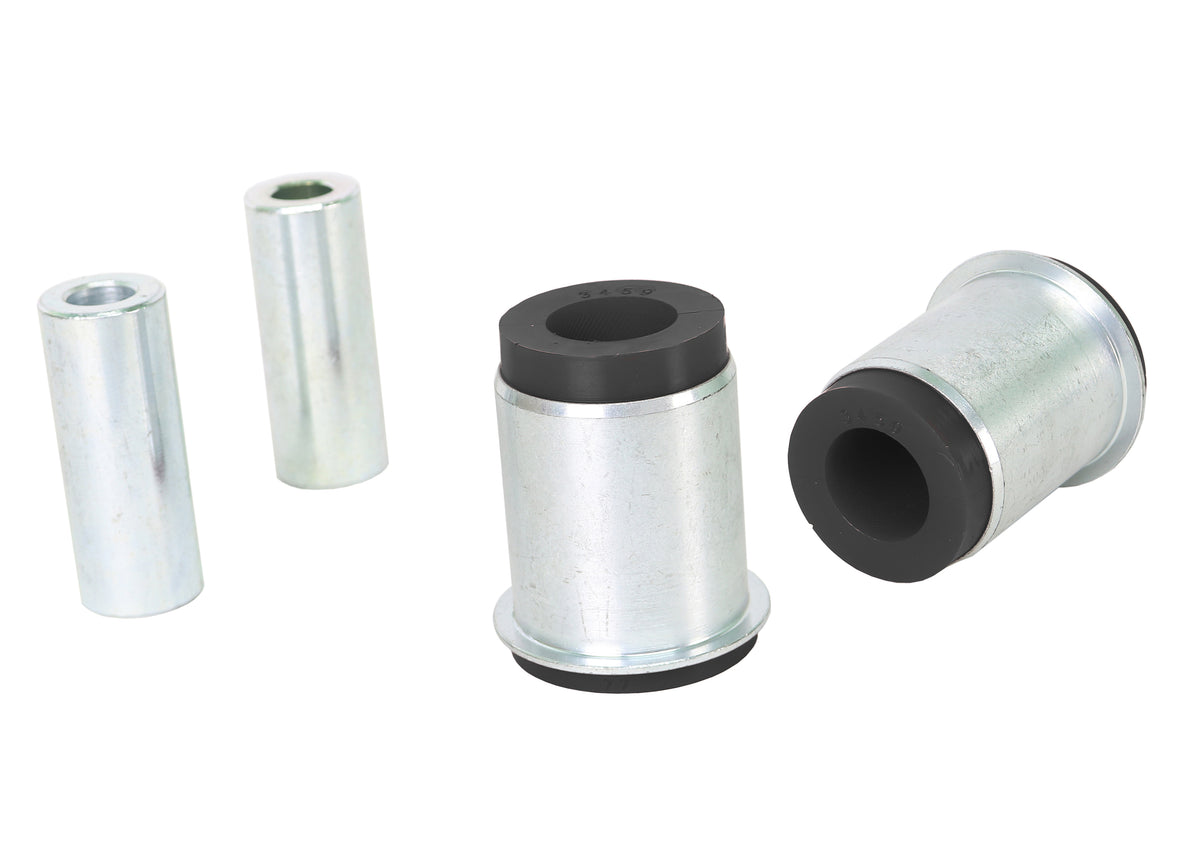

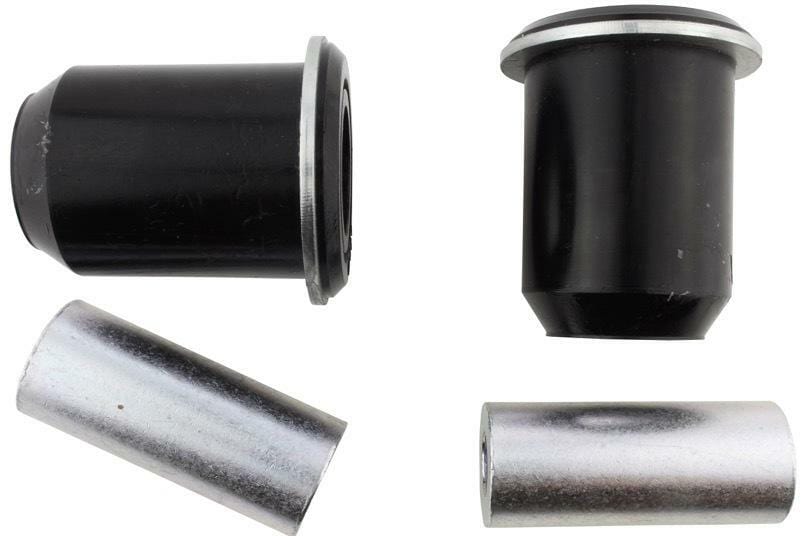

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2012-2016 Land Rover LR4 HSE Lux (L319). Included: 2 bushings and 2 tubes. Part number W53479. This part is for the front of the vehicle.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 3 hours of work listed. An alignment is required after installation. To go with it on the Land Rover LR4, see Rear Sway Bar Link.
Features
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Install guide: Step-by-step installation instructions come with it.
Specifications
| Part Number | W53479 |
| Part Name | Control Arm Bushing |
| Vehicle | 2012-2016 Land Rover LR4 HSE Lux |
| Chassis Code | L319 |
| Bushing 1 Inner Diameter | 16 mm |
| Bushing 1 Outer Diameter | 53.3 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
