Product Details

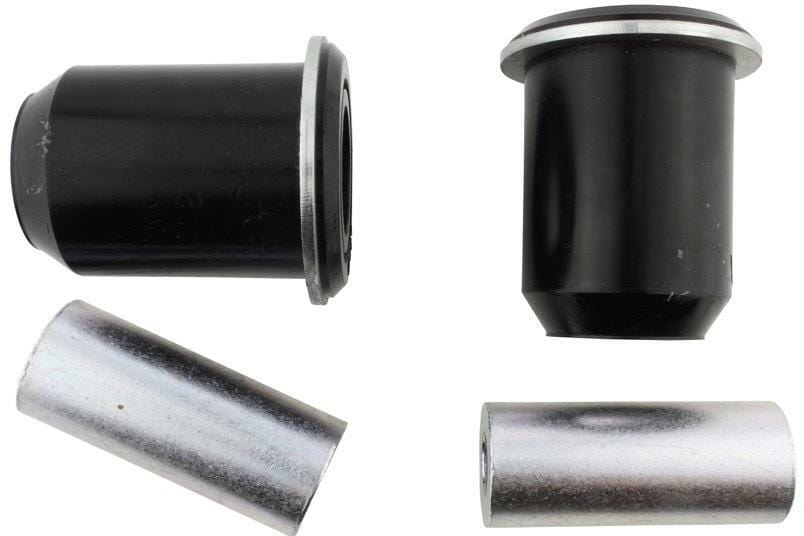

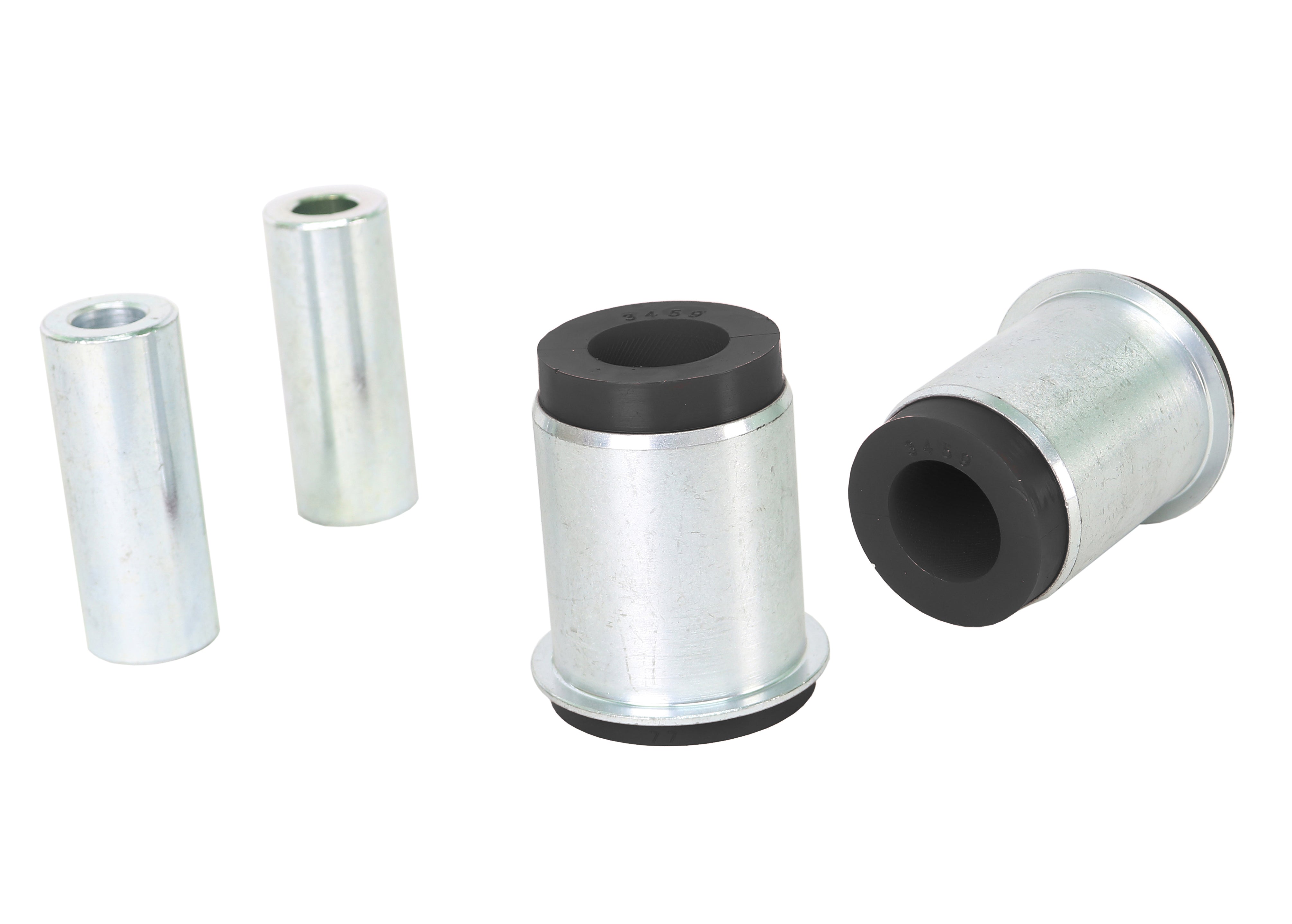

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2011-2016 Land Rover LR4 Base (L319). Whiteline part number: W53479. This part is for the front of the vehicle. In the box: 2 bushings and 2 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Land Rover LR4: Rear Sway Bar Link.

Features

  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: A powder coated finish resists corrosion and wear.
  • Install guide: Step-by-step installation instructions come with it.
  • Material: Polyurethane construction.
Specifications
Part Number W53479
Part Name Control Arm Bushing
Vehicle 2011-2016 Land Rover LR4 Base
Chassis Code L319
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 53.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011Land RoverLR44WD
2012Land RoverLR44WD
2013Land RoverLR44WD
2014Land RoverLR44WD
2015Land RoverLR44WD
2016Land RoverLR44WD
