Product Details

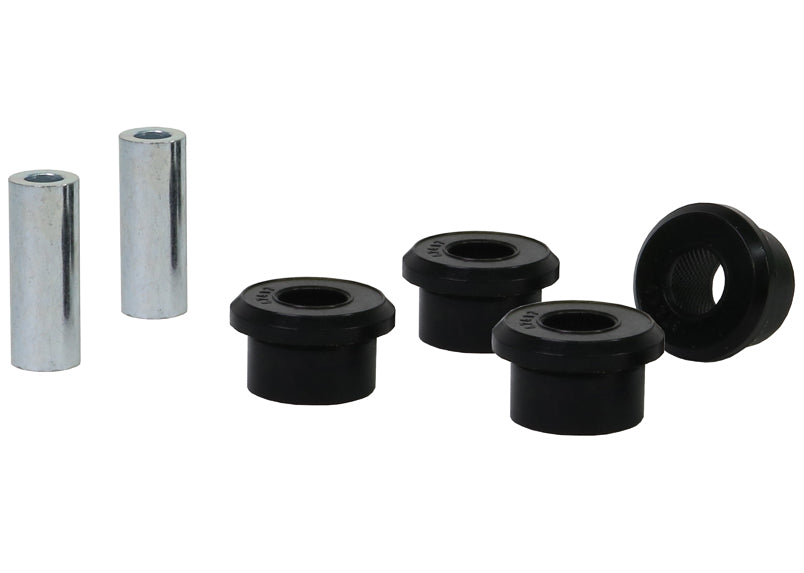

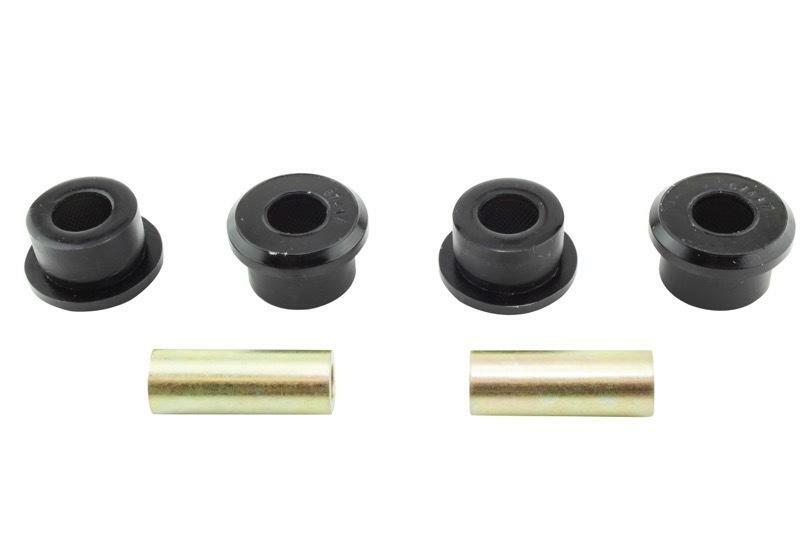

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2011-2015 Chevrolet Volt Base (Delta II). Part number W53431. Position: front. In the box: 4 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Volt: Adjustable Front Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Heavy Duty 22mm Rear Sway Bar.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Finish: A powder coated finish resists corrosion and wear.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Material: The part is made of polyurethane.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number W53431
Part Name Control Arm Bushing
Vehicle 2011-2015 Chevrolet Volt Base
Chassis Code Delta II
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011ChevroletVoltFWD
2012ChevroletVoltFWD
2013ChevroletVoltFWD
2014ChevroletVoltFWD
2015ChevroletVoltFWD
