Product Details

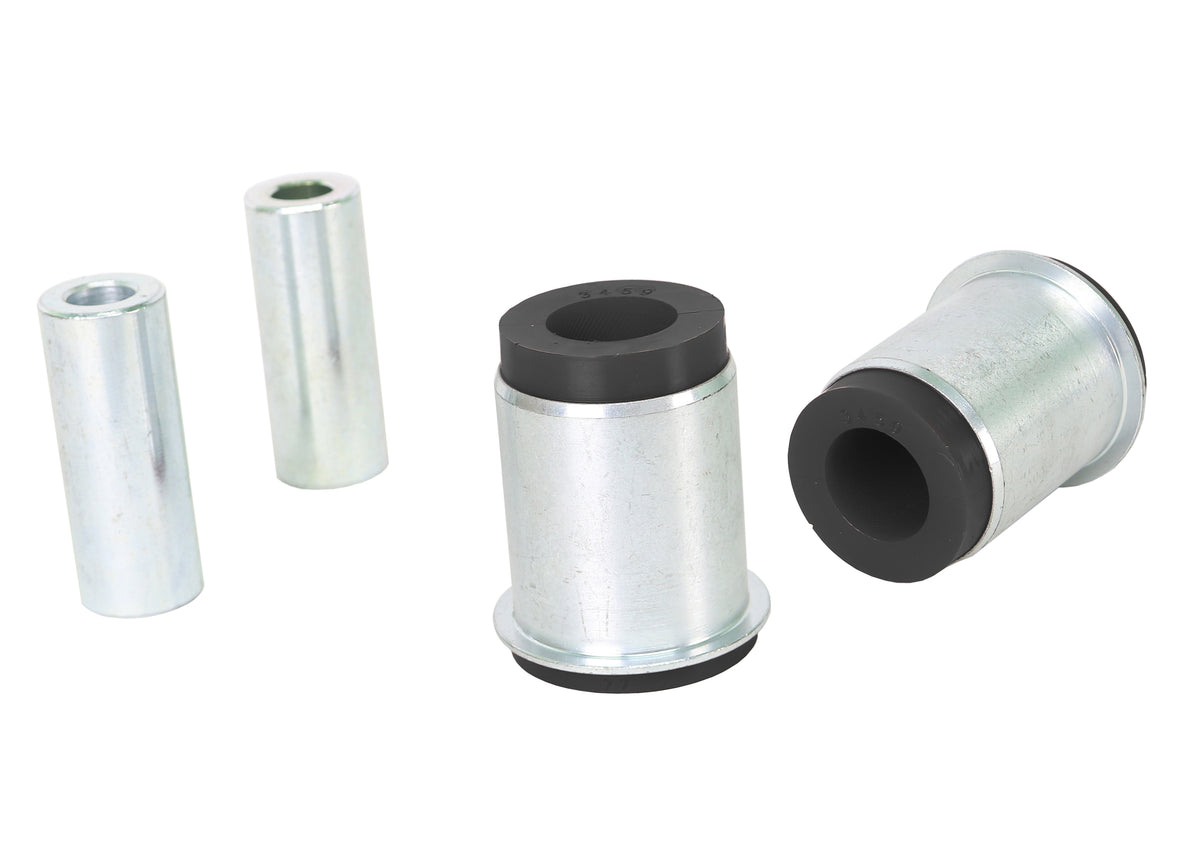

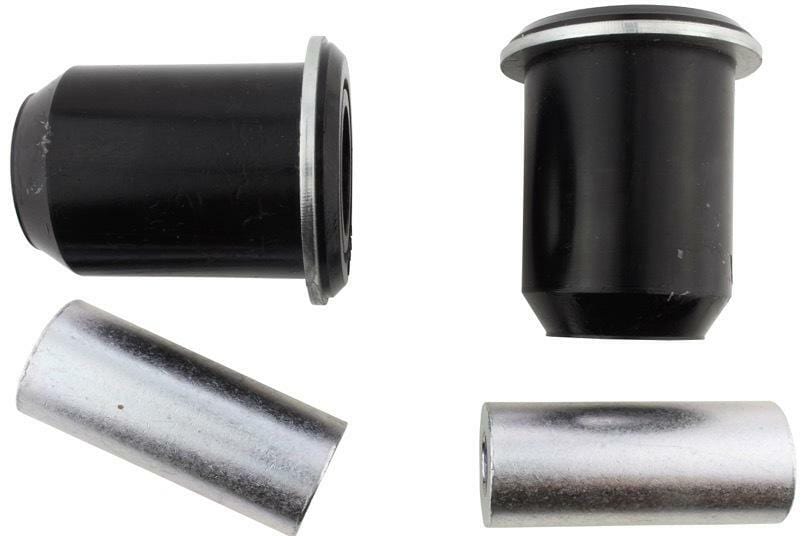

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2010-2016 Land Rover LR4 HSE (L319). Position: front. Order it as part number W53479. Included: 2 bushings and 2 tubes.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Land Rover LR4, see Rear Sway Bar Link.

Features

  • Install guide: Instructions for fitting are packed in the box.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Finish: A powder coated finish resists corrosion and wear.
Specifications
Part Number W53479
Part Name Control Arm Bushing
Vehicle 2010-2016 Land Rover LR4 HSE
Chassis Code L319
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 53.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010Land RoverLR44WD
2011Land RoverLR44WD
2012Land RoverLR44WD
2013Land RoverLR44WD
2014Land RoverLR44WD
2015Land RoverLR44WD
2016Land RoverLR44WD
