Product Details

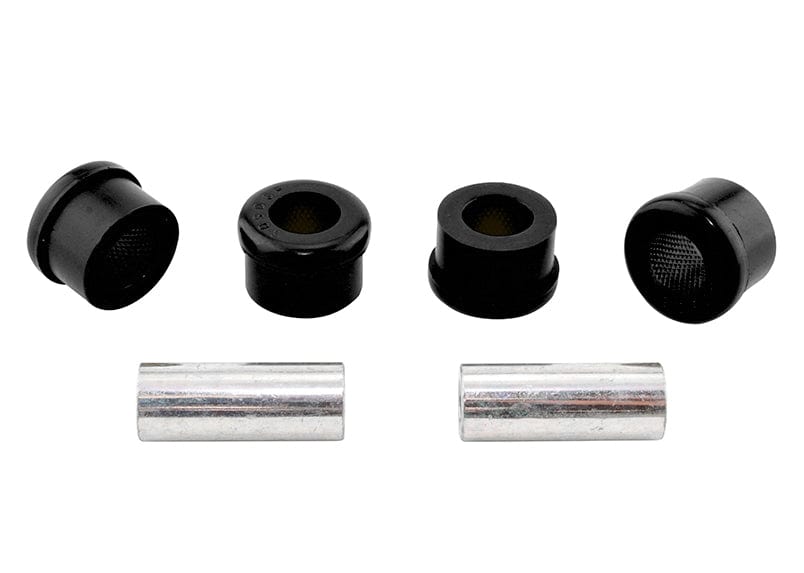

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2009 Subaru Outback 3.0 R Limited . Order it as part number W0506. It goes on the front of the vehicle. Included: 4 bushings and 2 tubes.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit for the Outback.

Features

  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Material: Made from polyurethane.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W0506
Part Name Control Arm Bushing
Vehicle 2009 Subaru Outback 3.0 R Limited
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 37.4 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruOutbackAWD
