Product Details

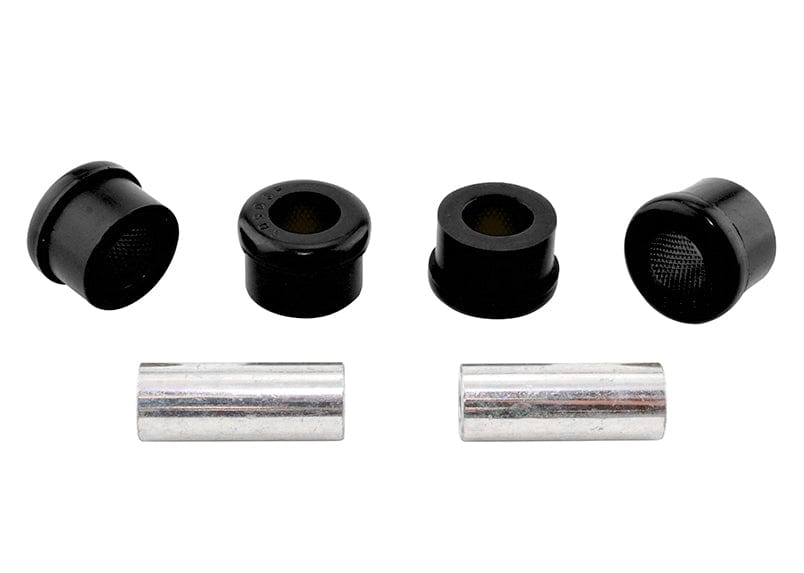

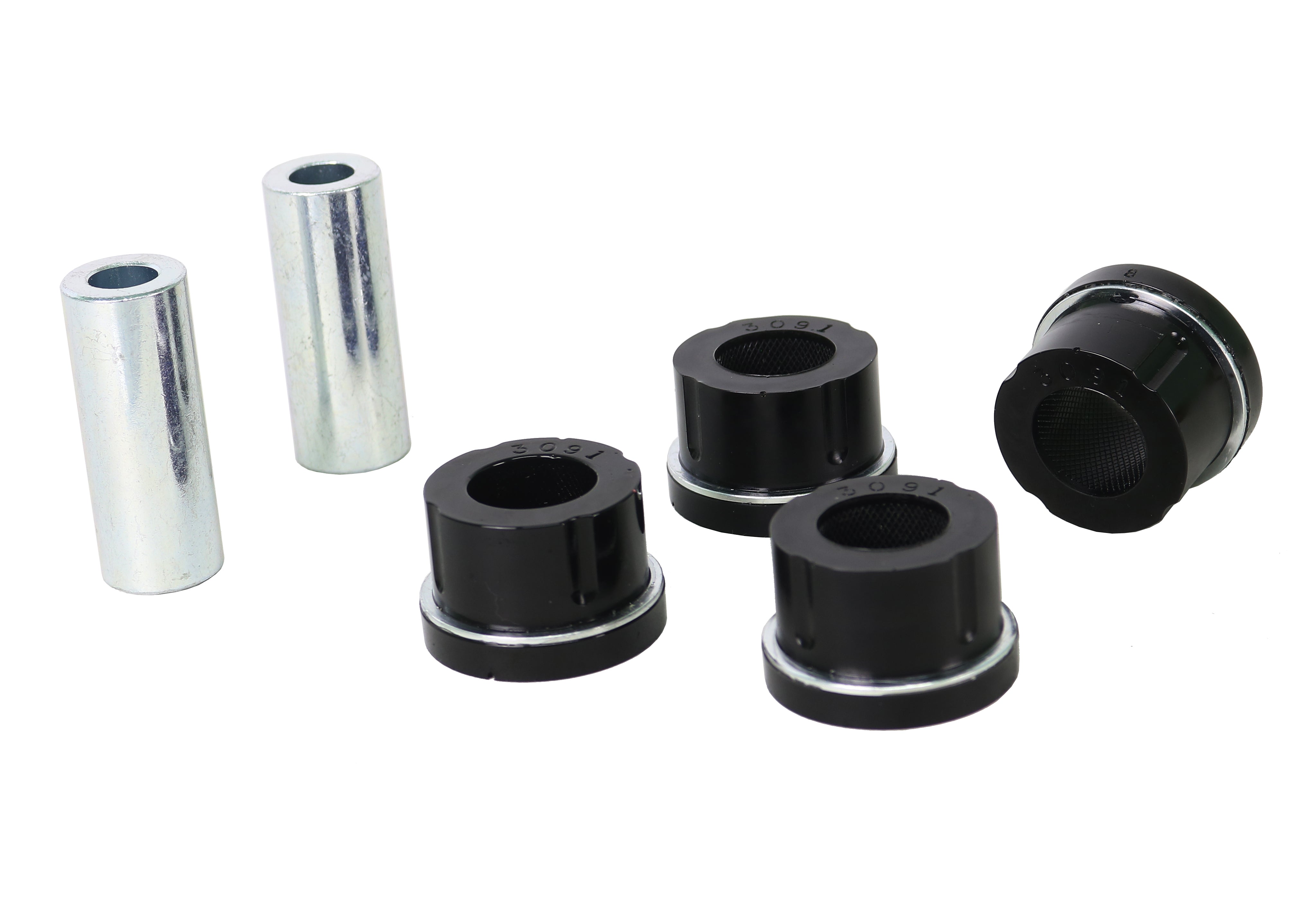

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2009-2013 Subaru Forester (SH). Chassis code: SH. It goes on the front of the vehicle. The kit contains 4 bushings and 2 tubes. Whiteline part number: W0506.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. To go with it on the Forester, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Material: Built from polyurethane.
  • Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
Part Number W0506
Part Name Control Arm Bushing
Vehicle 2009-2013 Subaru Forester
Chassis Code SH
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 37.4 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruForester4WD
2010SubaruForester4WD
2011SubaruForester4WD
2012SubaruForester4WD
2013SubaruForester4WD
