Product Details

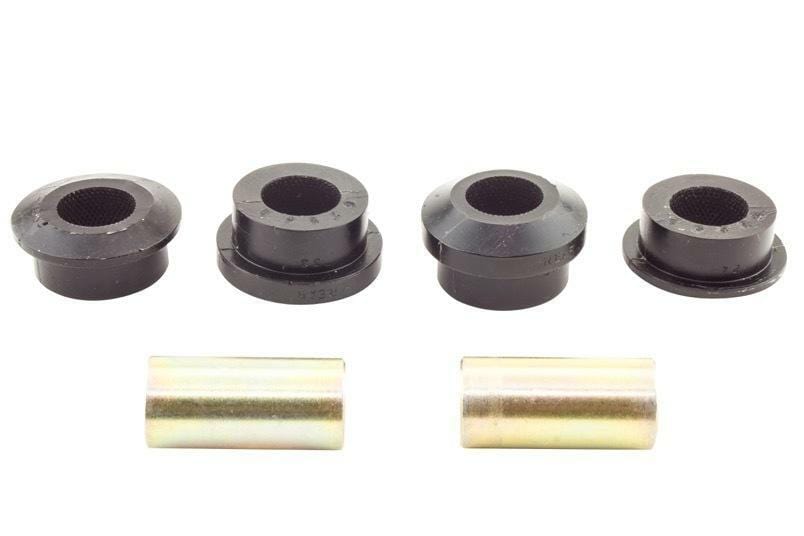

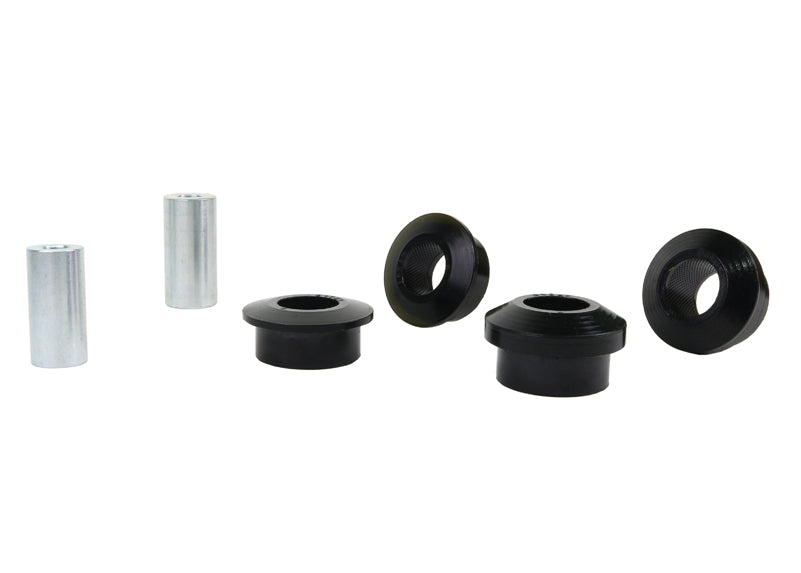

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2009-2011 Mazda RX-8 R3 (SE3P). You receive 4 bushings and 2 tubes. It goes on the front of the vehicle. The part number is W53413.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the RX-8: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Material: Polyurethane construction.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number W53413
Part Name Control Arm Bushing
Vehicle 2009-2011 Mazda RX-8 R3
Chassis Code SE3P
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 47.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009MazdaRX-8RWD
2010MazdaRX-8RWD
2011MazdaRX-8RWD
