Product Details

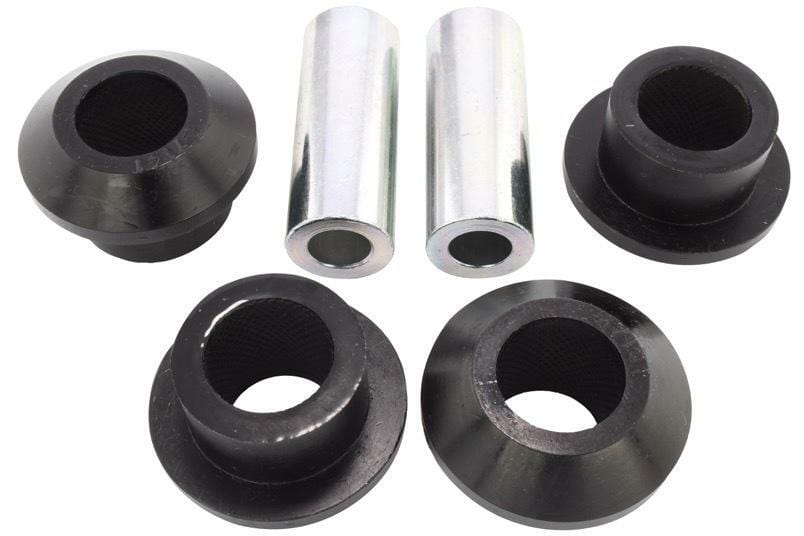

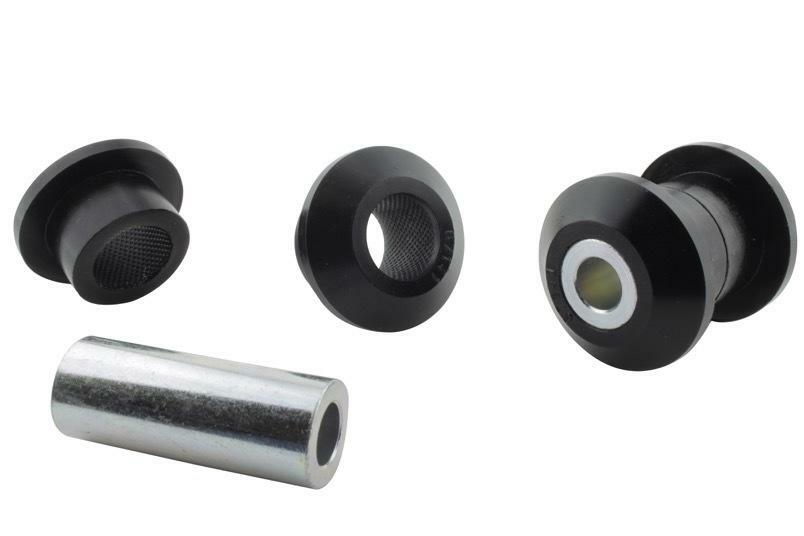

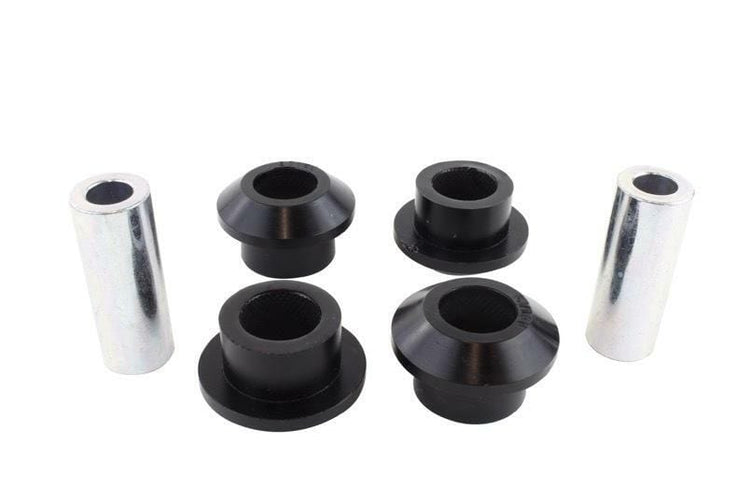

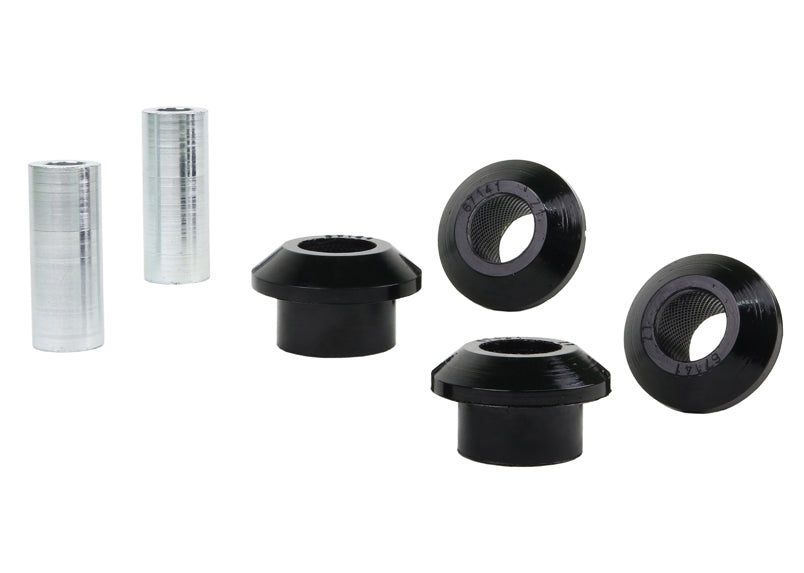

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2008-2013 Volvo C30 T5 R-Design (P1). Position: front. The kit contains 4 bushings and 2 tubes. Whiteline part number: W53286.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Volvo C30, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Material: Polyurethane construction.
  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2008-2013 Volvo C30 T5 R-Design
Chassis Code P1
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolvoC30FWD
2009VolvoC30FWD
2010VolvoC30FWD
2011VolvoC30FWD
2012VolvoC30FWD
2013VolvoC30FWD
