Product Details

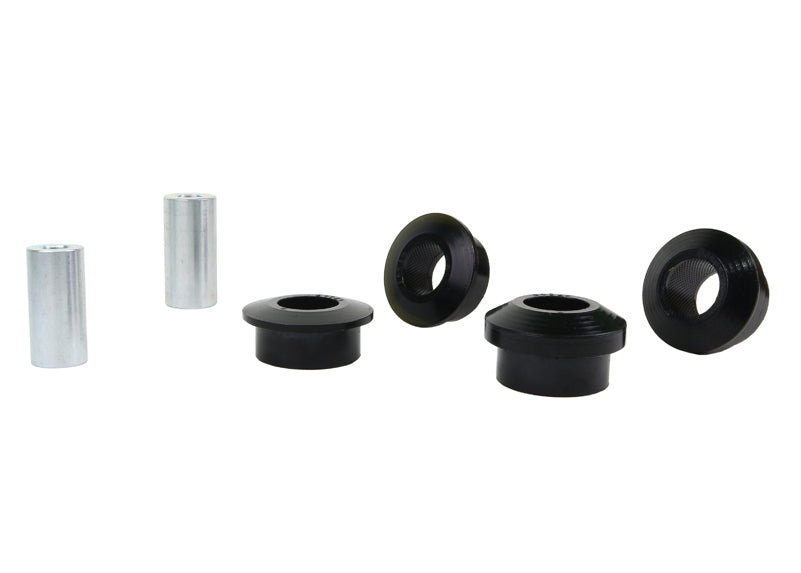

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2008-2011 Mazda RX-8 Grand Touring, Sport (SE3P). Included: 4 bushings and 2 tubes. It goes on the front of the vehicle. Part number W53413.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the RX-8.

Features

  • Material: Built from polyurethane.
  • Finish: The metal parts are powder coated for durability.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
Part Number W53413
Part Name Control Arm Bushing
Vehicle 2008-2011 Mazda RX-8 Grand Touring, Sport
Chassis Code SE3P
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 47.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008MazdaRX-8RWD
2009MazdaRX-8RWD
2010MazdaRX-8RWD
2011MazdaRX-8RWD
