Product Details

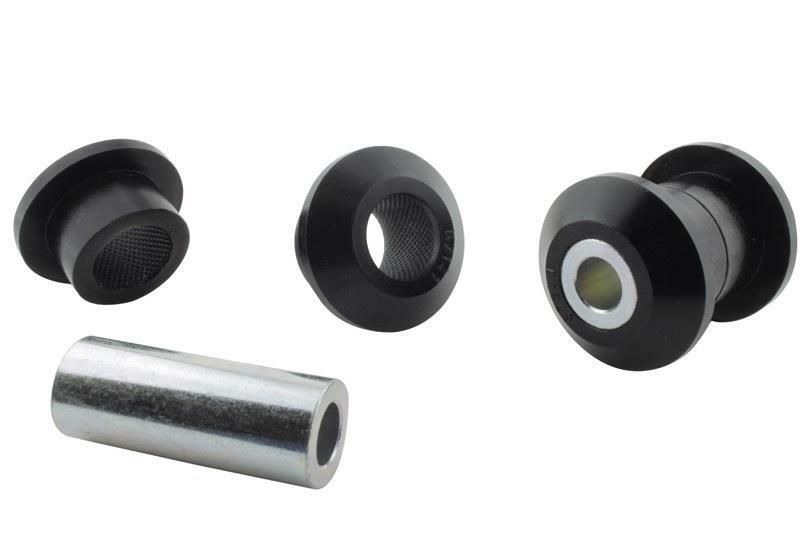

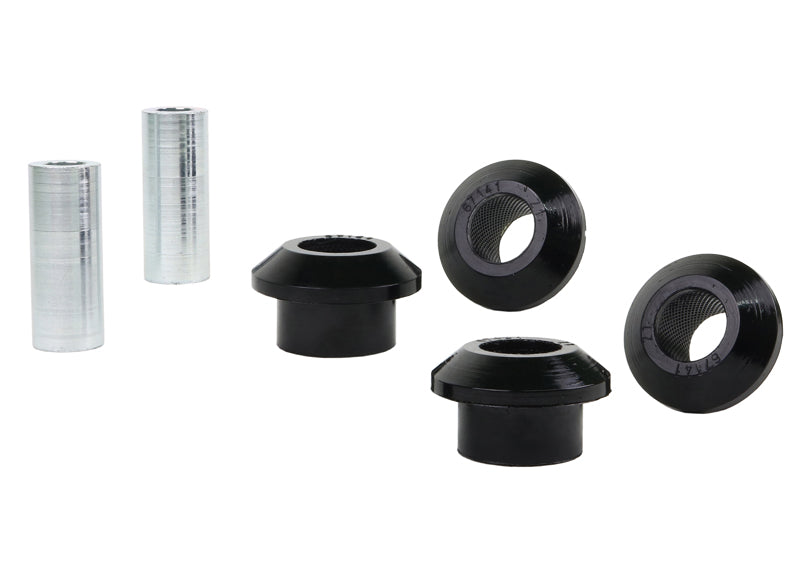

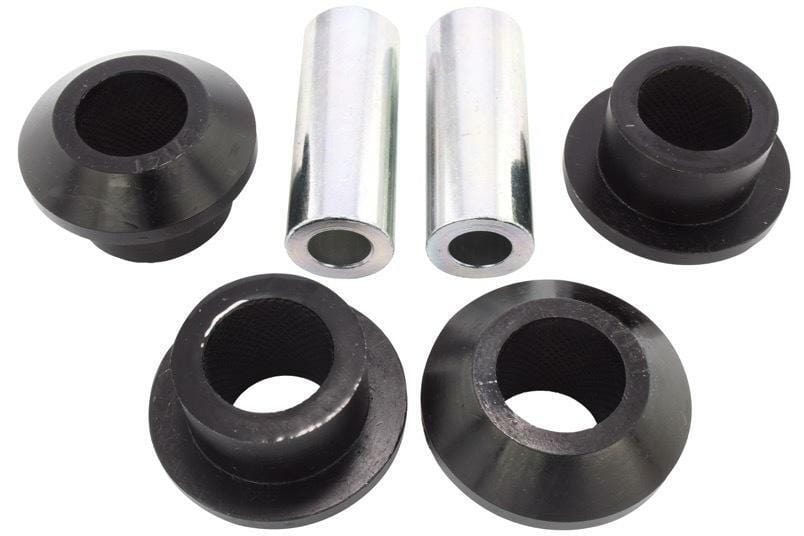

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2006-2010 Volvo V50 2.4i (P1). You receive 4 bushings and 2 tubes. Part number W53286. It goes on the front of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Volvo V50, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Finish: A powder coated finish resists corrosion and wear.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Material: The part is made of polyurethane.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2006-2010 Volvo V50 2.4i
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006VolvoV50FWD
2006VolvoV50AWD
2007VolvoV50FWD
2007VolvoV50AWD
2008VolvoV50FWD
2008VolvoV50AWD
2009VolvoV50FWD
2009VolvoV50AWD
2010VolvoV50FWD
2010VolvoV50AWD
