Product Details

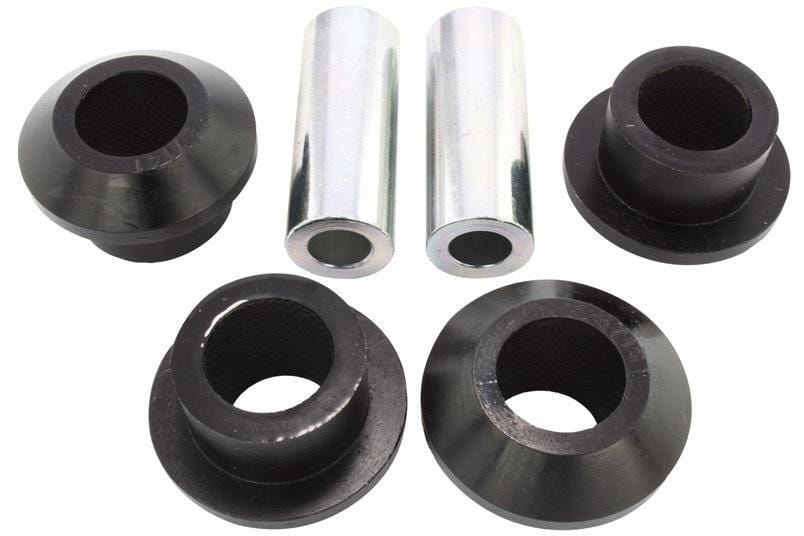

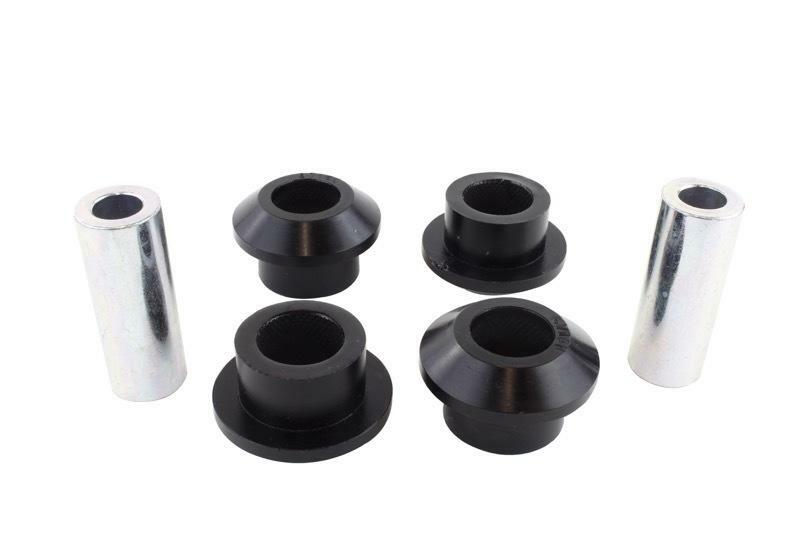

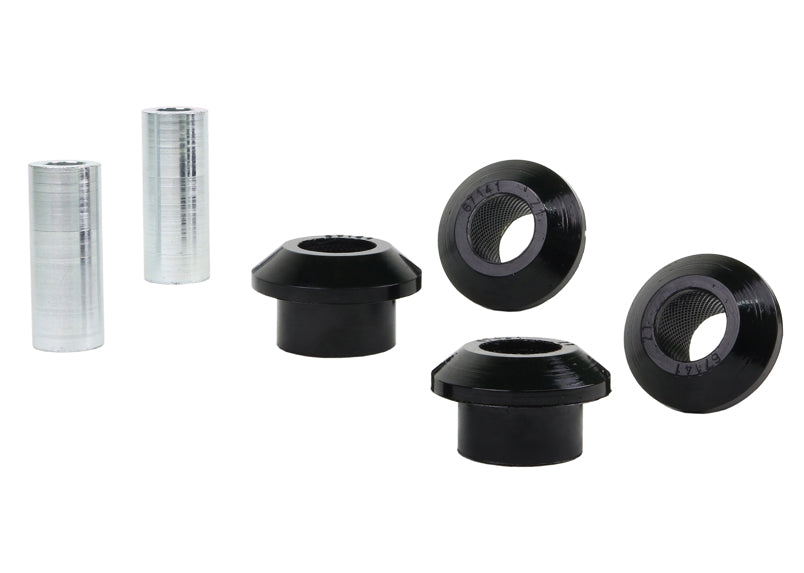

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2006-2010 Mazda 5 Touring (CR). You receive 4 bushings and 2 tubes. This part is for the front of the vehicle. Part number W53286.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Mazda 5, see Adjustable Rear Upper Control Arm Set, Front Steering Bump Steer Correction Kit, and Rear Control Arms.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Material: Made from polyurethane.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2006-2010 Mazda 5 Touring
Chassis Code CR
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006MazdaMazda 5FWD
2007MazdaMazda 5FWD
2008MazdaMazda 5FWD
2009MazdaMazda 5FWD
2010MazdaMazda 5FWD
