Product Details

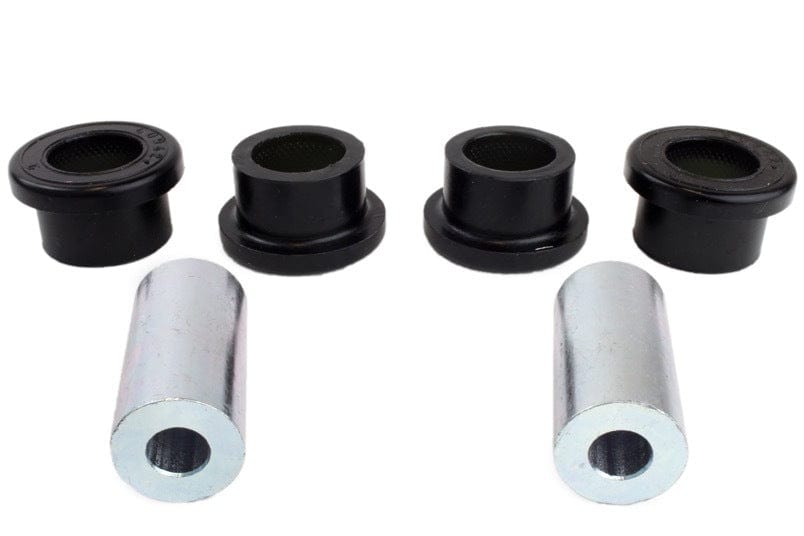

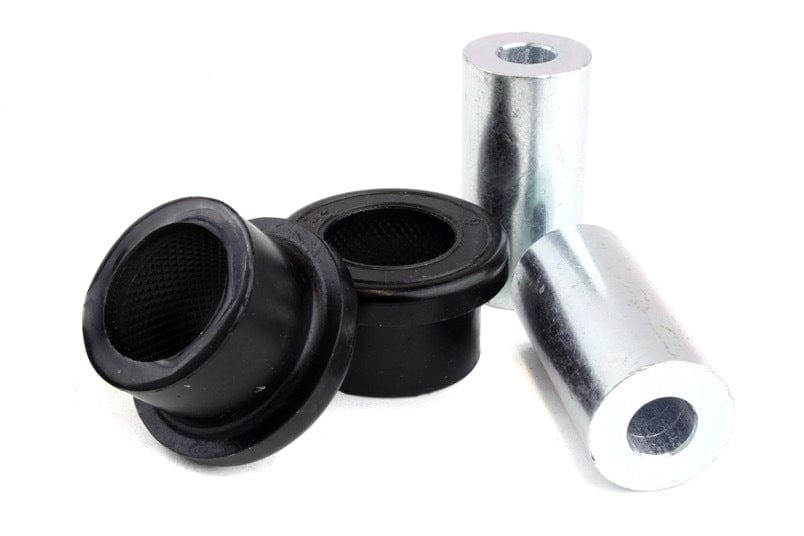

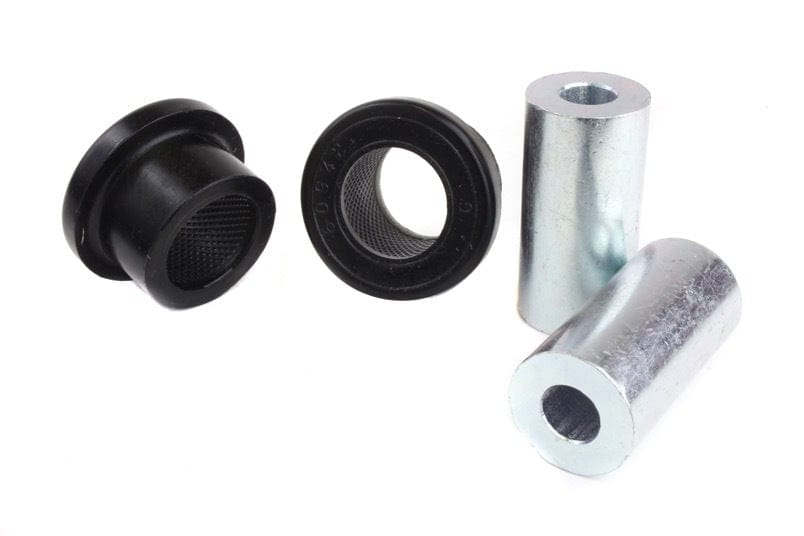

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2006-2007 Volkswagen Passat 2.0T, 3.6, Value Edition (B6). Drivetrain: FWD. This part is for the front of the vehicle. Part number W0503. In the box: 4 bushings and 2 tubes.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. To go with it on the Passat, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Finish: The metal parts are powder coated for durability.
- Material: Made from polyurethane.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | W0503 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006-2007 Volkswagen Passat 2.0T, 3.6, Value Edition |
| Chassis Code | B6 |
| Drivetrain | FWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
