Product Details

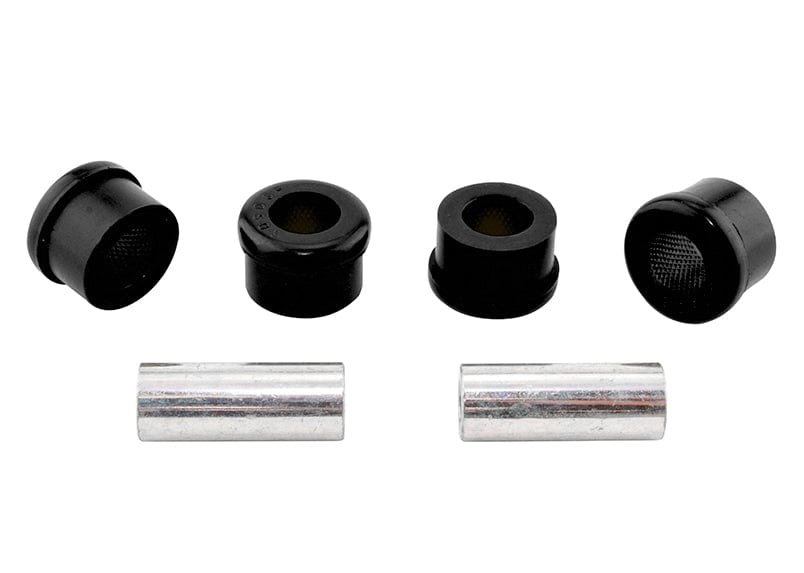

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2005 Subaru Outback i, VDC Limited (BP). Chassis code: BP. It goes on the front of the vehicle. You receive 4 bushings and 2 tubes. The part number is W0506.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Material: Built from polyurethane.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W0506
Part Name Control Arm Bushing
Vehicle 2005 Subaru Outback i, VDC Limited
Chassis Code BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 37.4 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruOutbackAWD
