Product Details

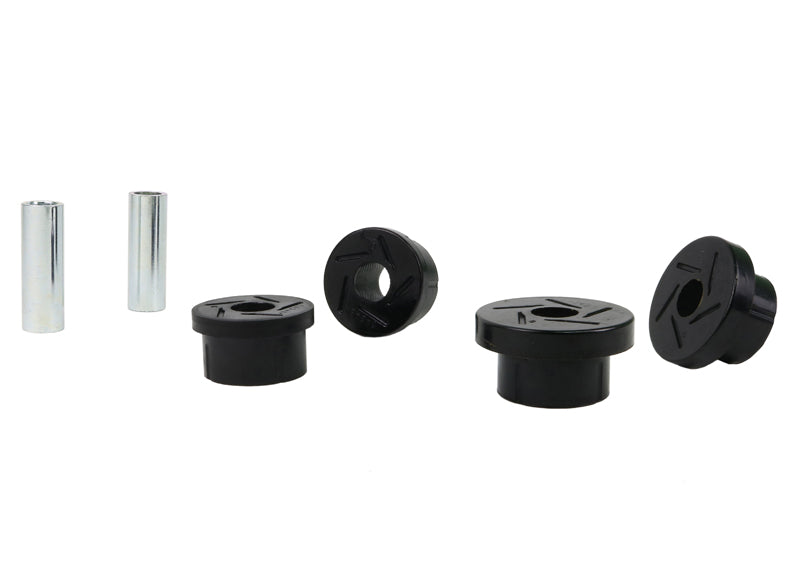

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 1992-1996 Lexus SC300 (Z30). Whiteline part number: W51231A. The kit contains 4 bushings and 2 tubes. Application note: Suits models to: 6/1996. Position: front.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. We also list Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing for the SC300.

Features

  • Install guide: Instructions for fitting are packed in the box.
  • Material: Polyurethane construction.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number W51231A
Part Name Control Arm Bushing
Vehicle 1992-1996 Lexus SC300
Chassis Code Z30
Bushing 1 Inner Diameter 16.2 mm
Bushing 1 Outer Diameter 49.5 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Suits models to - 6/1996 - 49.5mm OD

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1992LexusSC300RWDSuits models to - 6/1996 - 49.5mm OD
1993LexusSC300RWDSuits models to - 6/1996 - 49.5mm OD
1994LexusSC300RWDSuits models to - 6/1996 - 49.5mm OD
1995LexusSC300RWDSuits models to - 6/1996 - 49.5mm OD
1996LexusSC300RWDSuits models to - 6/1996 - 49.5mm OD
