Product Details

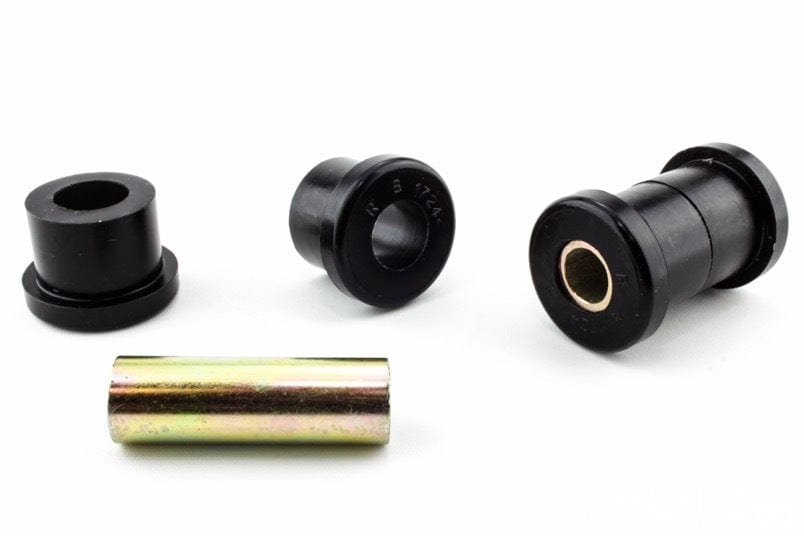

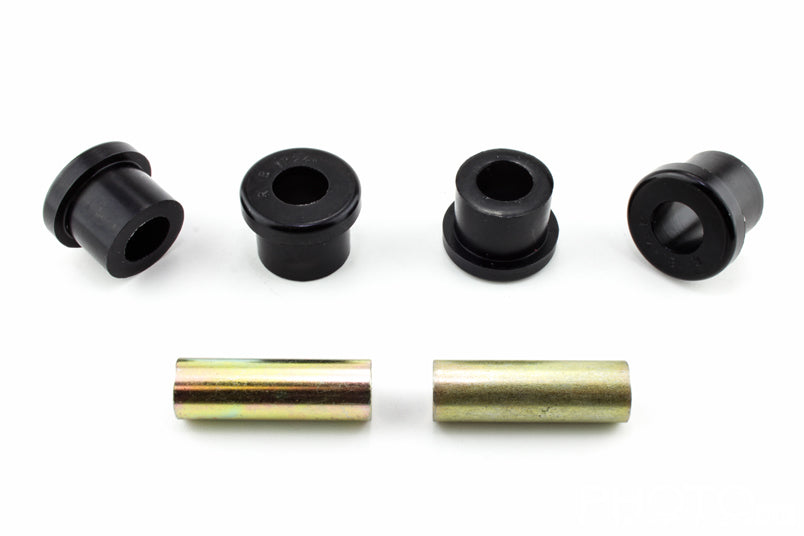

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 1988-1989 Toyota Corolla GTS (E90). In the box: 4 bushings and 2 tubes. It goes on the front of the vehicle. Order it as part number W51724.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Corolla: Adjustable Rear Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Sway Bar Washer Kit.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Easy to fit: Designed so the install needs no specialized skills or tools.
  • Material: Built from polyurethane.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W51724
Part Name Control Arm Bushing
Vehicle 1988-1989 Toyota Corolla GTS
Chassis Code E90
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 33 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1988ToyotaCorolla
1989ToyotaCorolla
