Product Details

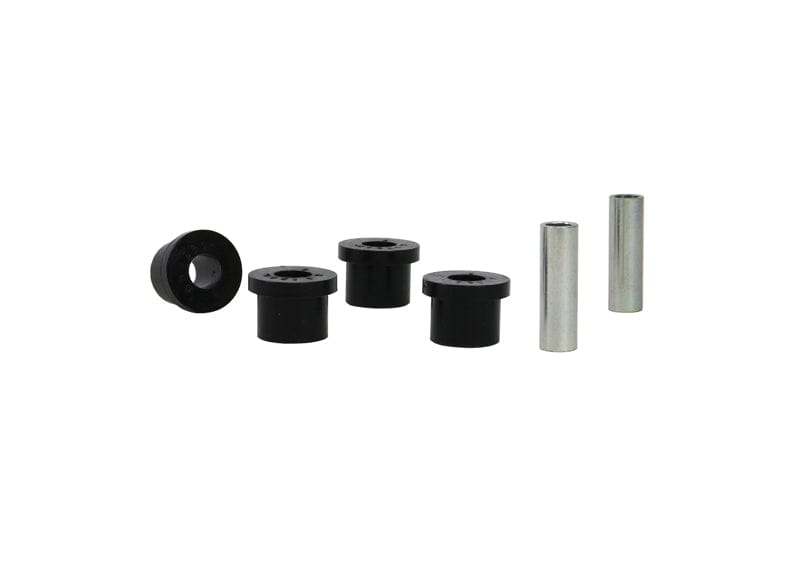

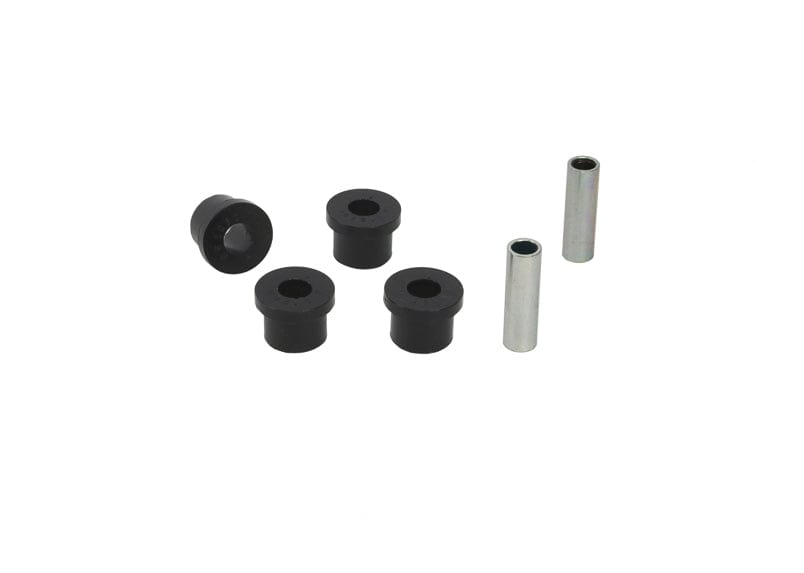

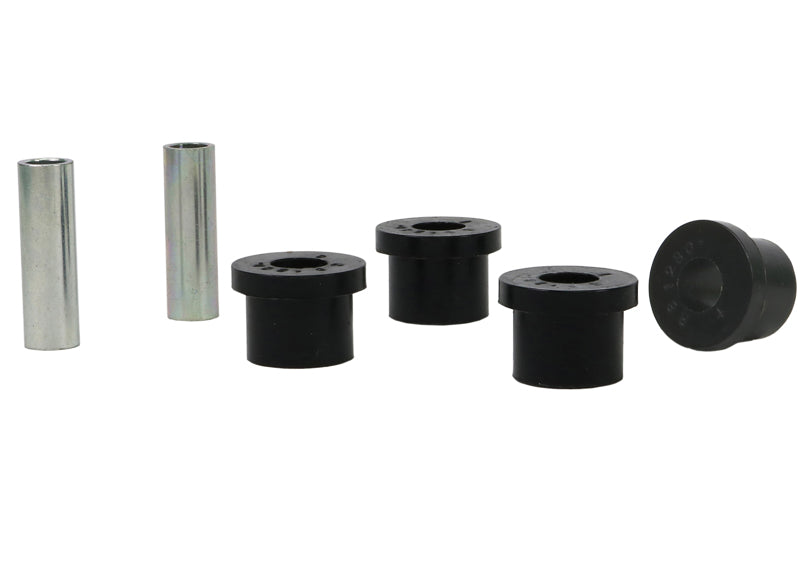

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 1988-1989 Mazda 323 GTX, SE (BF). Included: 4 bushings and 2 tubes. The part number is W51280. It goes on the front of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Mazda 323, see 12mm Adjustable Front Camber Bolts, Front Sway Bar Washer Kit, and Front Strut Tower Brace Quick Release Kit.

Features

  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Easy to fit: Installation does not call for special skills or tools.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Material: The part is made of polyurethane.
Specifications
Part Number W51280
Part Name Control Arm Bushing
Vehicle 1988-1989 Mazda 323 GTX, SE
Drivetrain FWD/AWD
Chassis Code BF
Bushing 1 Inner Diameter 12 mm
Bushing 1 Outer Diameter 30 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1988Mazda323FWD
1988Mazda323AWD
1989Mazda323FWD
1989Mazda323AWD
