Product Details

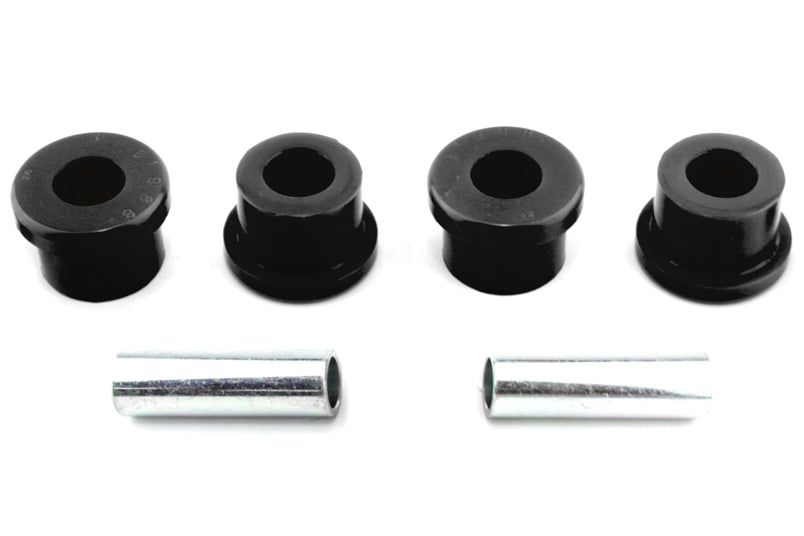

This Whiteline Front Control Arm Lower Inner Front Bushing (14mm ID) fits the 2004-2013 Mitsubishi Lancer Ralliart (CS/CY). Order it as part number W0593. Position: front. You receive 4 bushings and 2 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. Other Whiteline parts we list for the Lancer: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Material: Polyurethane construction.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W0593
Part Name Control Arm Bushing
Vehicle 2004-2013 Mitsubishi Lancer Ralliart
Chassis Code CS/CY
Drivetrain AWD/FWD
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 34.7 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MitsubishiLancerAWD
2004MitsubishiLancerFWD
2005MitsubishiLancerAWD
2005MitsubishiLancerFWD
2006MitsubishiLancerAWD
2006MitsubishiLancerFWD
2007MitsubishiLancerAWD
2007MitsubishiLancerFWD
2008MitsubishiLancerAWD
2008MitsubishiLancerFWD
2009MitsubishiLancerAWD
2009MitsubishiLancerFWD
2010MitsubishiLancerAWD
2010MitsubishiLancerFWD
2011MitsubishiLancerAWD
2011MitsubishiLancerFWD
2012MitsubishiLancerAWD
2012MitsubishiLancerFWD
2013MitsubishiLancerAWD
2013MitsubishiLancerFWD
