Product Details

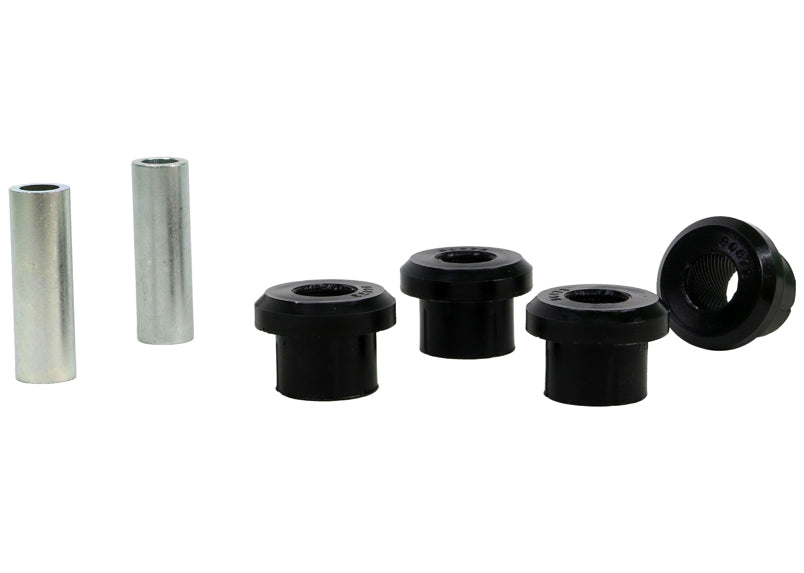

The Whiteline Front Lower Inner Control Arm Bushing fits the 2015-2019 Nissan GT-R Nismo (R35). Trim named on the listing: Nismo. Placement: front. Whiteline part number: W53624. The kit contains 4 bushings and 2 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a difficult job of about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the GT-R: Front Sway Bar Link Kit, Front and Rear Sway Bar Kit, and Heavy Duty Blade Adjustable 20mm Rear Sway Bar.
Features
- Easy to fit: Made with the installer in mind, so it goes in without special equipment.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Material: Built from polyurethane.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
| Part Number | W53624 |
| Part Name | Control Arm Bushing |
| Vehicle | 2015-2019 Nissan GT-R Nismo |
| Chassis Code | R35 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 36.1 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
