Product Details

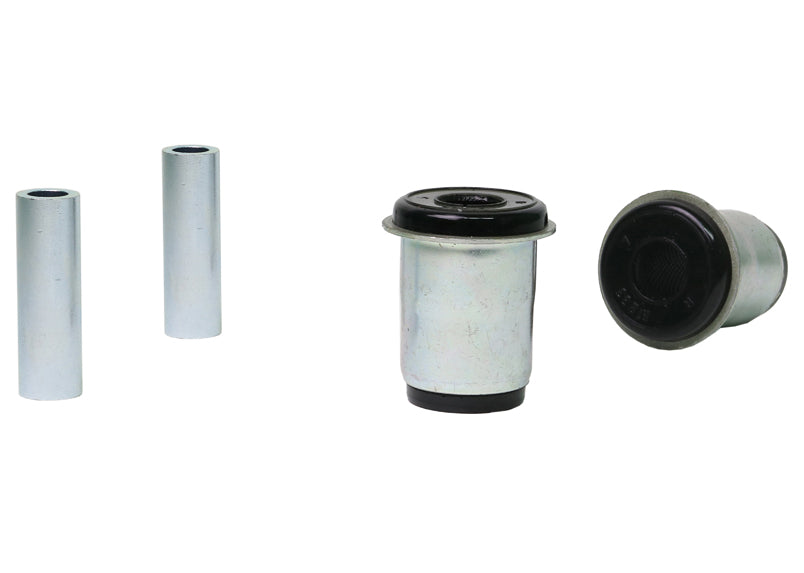

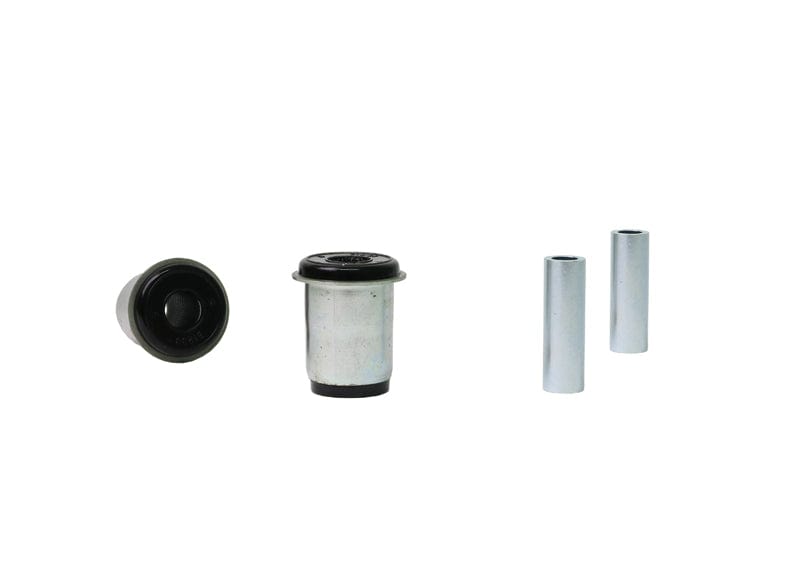

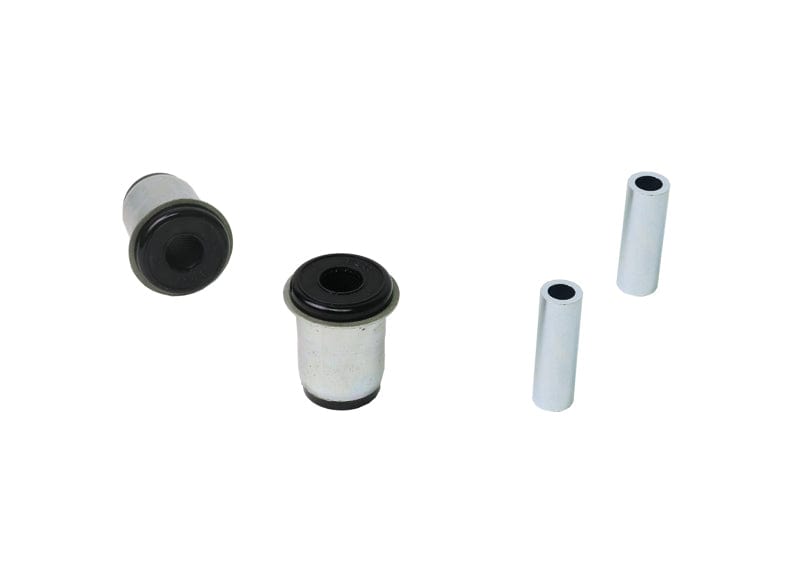

This Whiteline Front Lower Inner Control Arm Bushing fits the 2004-2006 Pontiac GTO Base (Zeta). It goes on the front of the vehicle. Whiteline's note for this fit: Direct OEM replacement design. You receive 2 shell bushings and 2 tubes. Order it as part number W51233.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 1.5 hours. Get the car aligned once it is back on the ground. To go with it on the Pontiac GTO, see Rear Subframe Mount Bushing, Front Strut Tower Brace, and Front Strut Tower Brace Quick Release Kit.

Features

  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Material: Made from polyurethane.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
Specifications
Part Number W51233
Part Name Control Arm Bushing
Vehicle 2004-2006 Pontiac GTO Base
Chassis Code Zeta
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.9 mm
Bushing 2 Outer Diameter 39.9 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Direct OEM replacement design

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004PontiacGTORWDDirect OEM replacement design
2005PontiacGTORWDDirect OEM replacement design
2006PontiacGTORWDDirect OEM replacement design
