Product Details

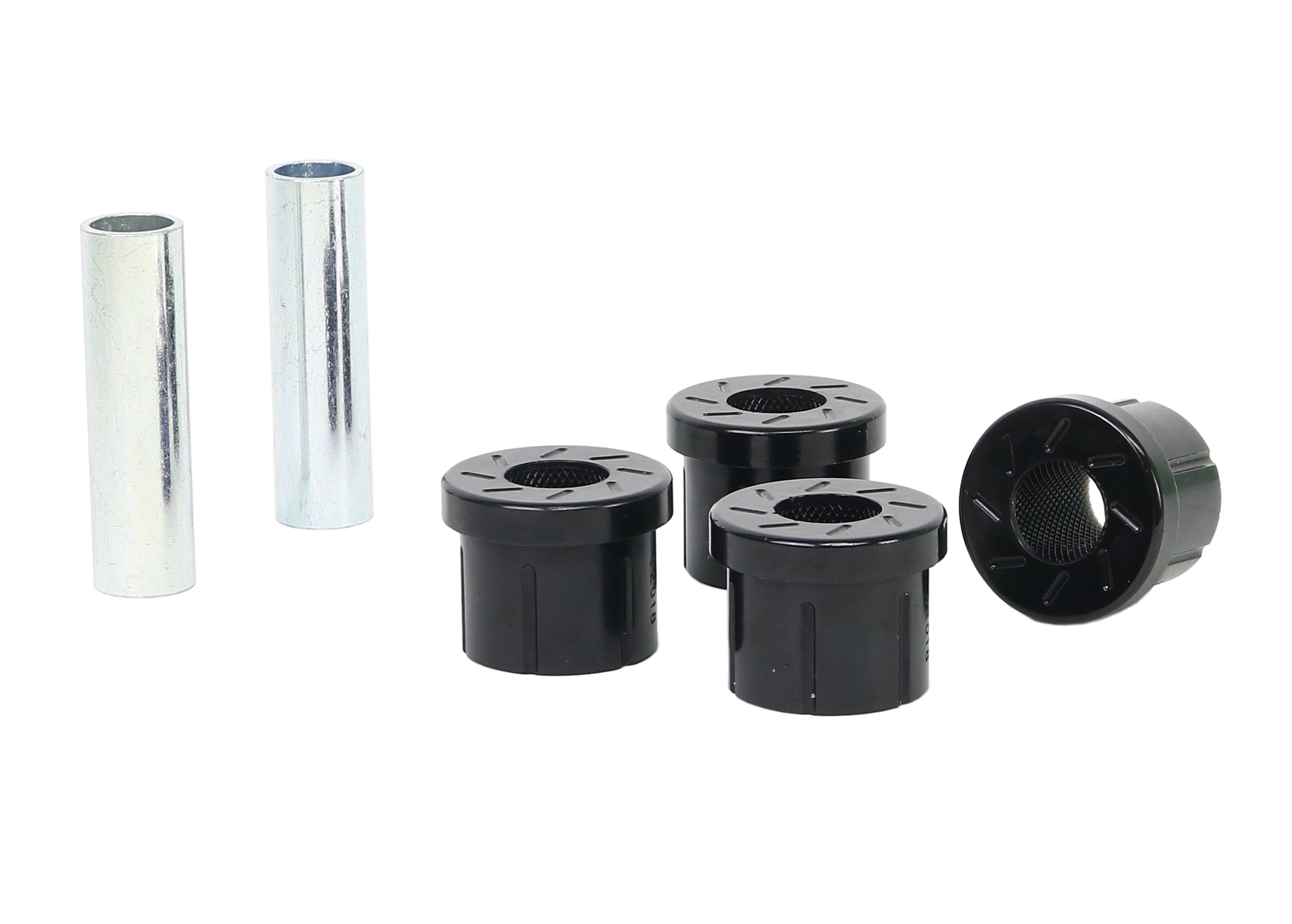

This Whiteline Front Lower Inner Control Arm Bushing fits the 2002-2004 Nissan Frontier SVE (D22). Included: 4 bushings and 2 tubes. Whiteline part number: W71645. Placement: front.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Frontier, see Front Sway Bar Washer Kit, Front Sway Bar Link Bushing (28.5mm OD), and Rear Sway Bar Link Bushing (28.5mm OD).

Features

  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Easy to fit: Installation does not call for special skills or tools.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Material: Polyurethane construction.
Specifications
Part Number W71645
Part Name Control Arm Bushing
Vehicle 2002-2004 Nissan Frontier SVE
Chassis Code D22
Drivetrain 4WD/RWD
Bushing 1 Inner Diameter 18.2 mm
Bushing 1 Outer Diameter 41.3 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002NissanFrontier4WD
2002NissanFrontierRWD
2003NissanFrontier4WD
2003NissanFrontierRWD
2004NissanFrontier4WD
2004NissanFrontierRWD
