Product Details

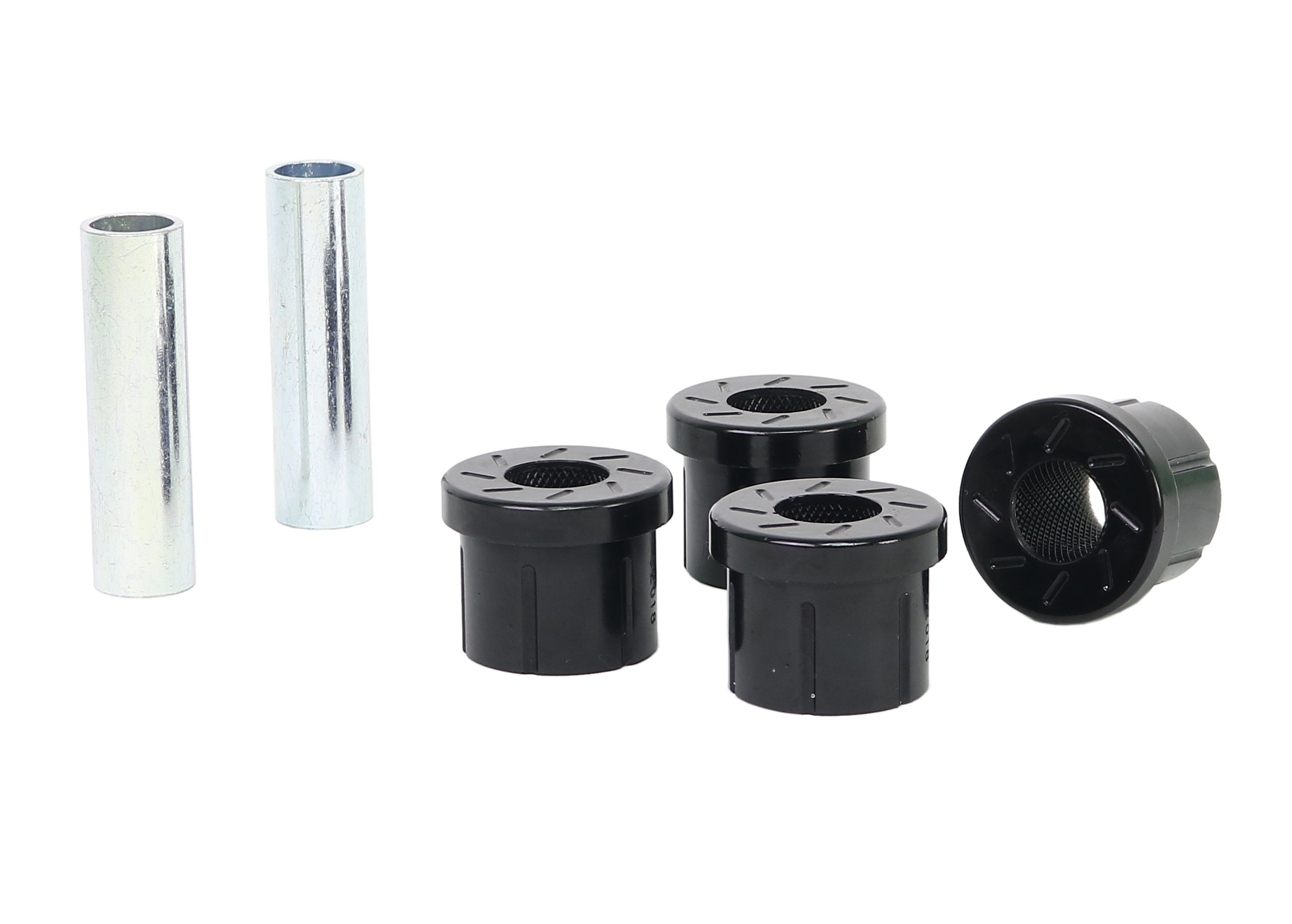

This Whiteline Front Lower Inner Control Arm Bushing fits the 1998-2003 Nissan Frontier Base, SE (D22). Position: front. In the box: 4 bushings and 2 tubes. Part number W71645.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 3 hours. Get the car aligned once it is back on the ground. We also list Front Sway Bar Washer Kit, Front Sway Bar Link Bushing (28.5mm OD), and Rear Sway Bar Link Bushing (28.5mm OD) for the Frontier.

Features

  • Easy to fit: Designed so the install needs no specialized skills or tools.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Material: Polyurethane construction.
Specifications
Part Number W71645
Part Name Control Arm Bushing
Vehicle 1998-2003 Nissan Frontier Base, SE
Chassis Code D22
Drivetrain 4WD/RWD
Bushing 1 Inner Diameter 18.2 mm
Bushing 1 Outer Diameter 41.3 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1998NissanFrontier4WD
1998NissanFrontierRWD
1999NissanFrontier4WD
1999NissanFrontierRWD
2000NissanFrontier4WD
2000NissanFrontierRWD
2001NissanFrontier4WD
2001NissanFrontierRWD
2002NissanFrontier4WD
2002NissanFrontierRWD
2003NissanFrontier4WD
2003NissanFrontierRWD
