Product Details

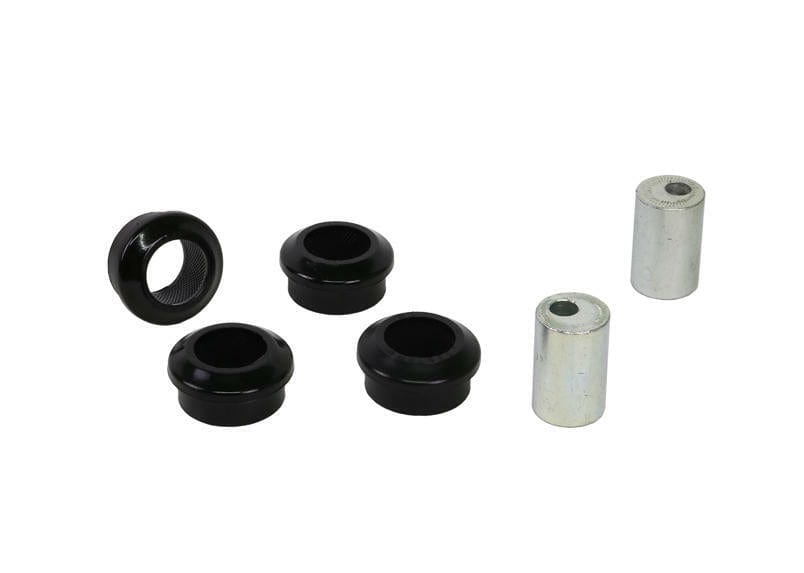

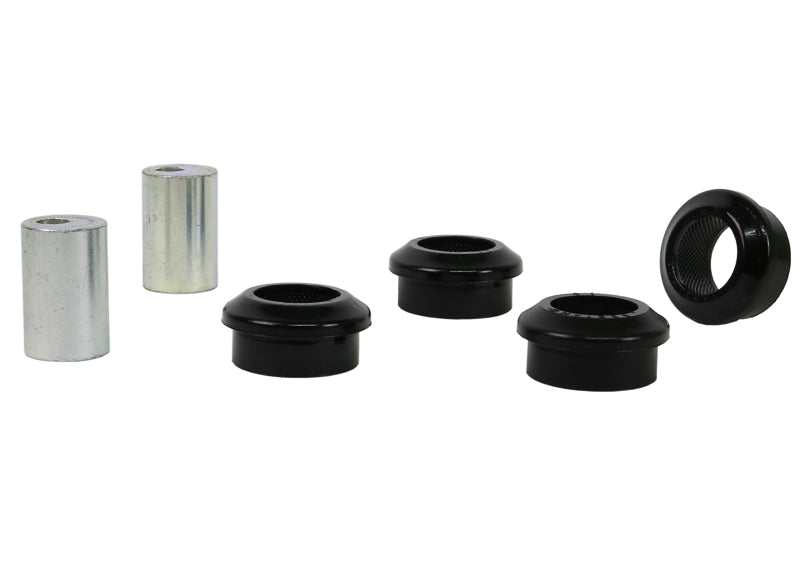

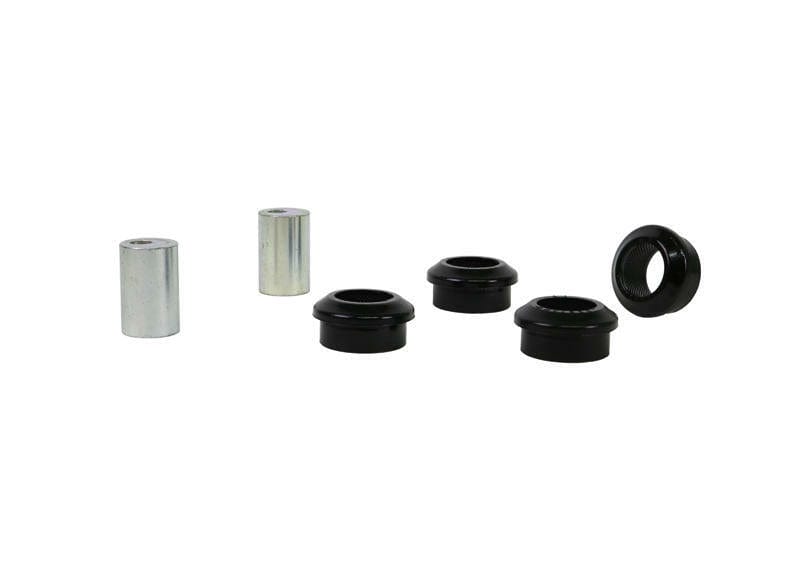

This Whiteline Front Lower Control Arm Bushing Kit fits the 2009 Pontiac G8 GXP (Zeta). You receive 4 bushings and 2 tubes. Whiteline part number: W53347. It goes on the front of the vehicle. Whiteline's note for this fit: Adds 0.5 degrees Camber: high performance use.
Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.
Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Pontiac G8: Rear Subframe Mount Bushing, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.
Features
- Material: Made from polyurethane.
- Install guide: Instructions for fitting are packed in the box.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Camber adjustment: Aims to keep camber in an effective range as the body rolls.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
| Part Number | W53347 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009 Pontiac G8 GXP |
| Chassis Code | Zeta |
| Bushing 1 Inner Diameter | 12.3 mm |
| Bushing 1 Outer Diameter | 46.3 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber - high performance use |
