Product Details

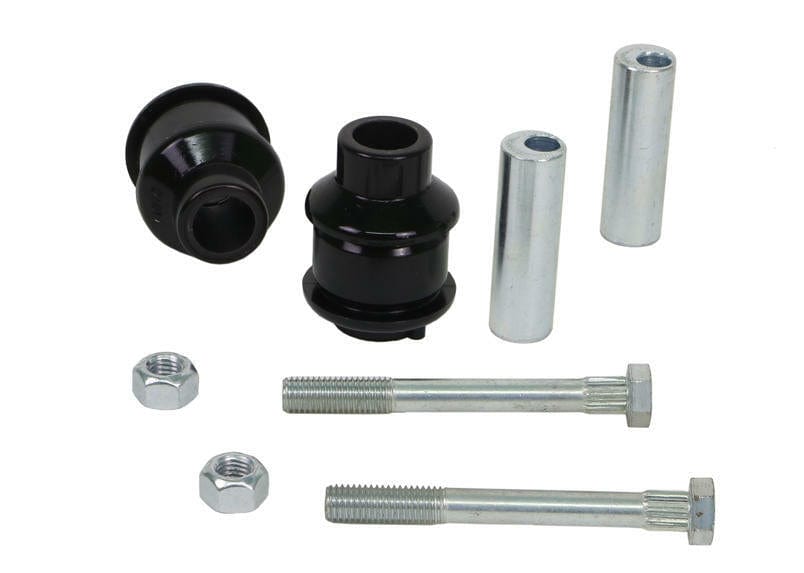

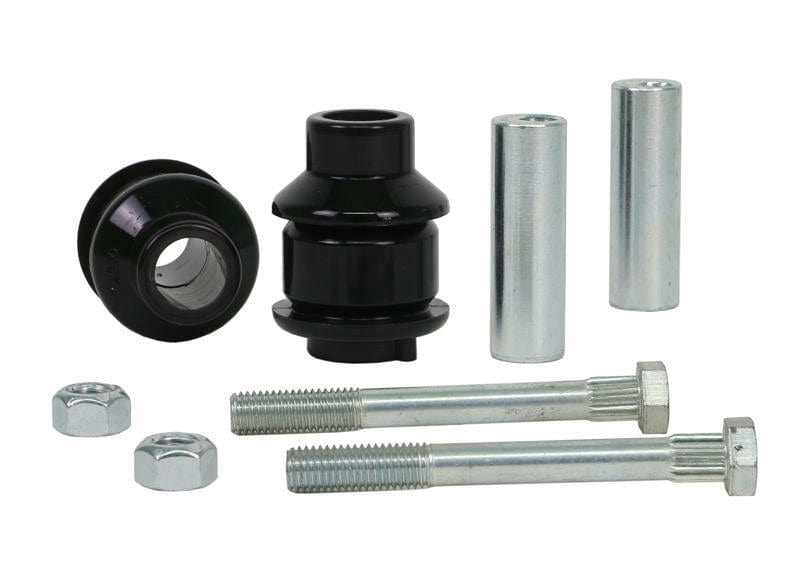

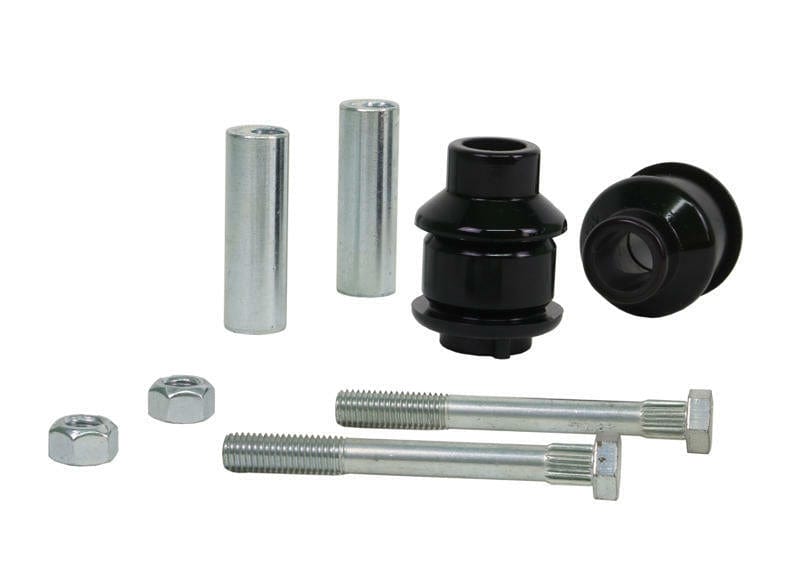

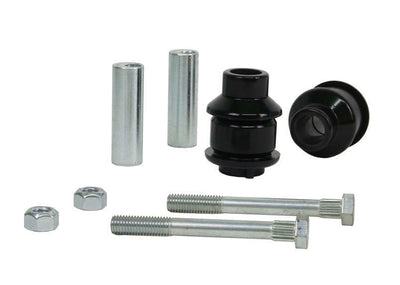

Looking for a front control arm bushing for your 2009-2011 BMW 335d 3 Series (E90)? The Whiteline Front Lower Control Arm Bushing Kit (46.1mm OD) is made for it. In the box: 2 bushings, 2 tubes, 2 bolts, and 2 nuts. This part is for the front of the vehicle. Application note: Adds 0.5 degrees Camber. Part number KCA431.
Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.
Whiteline rates the install as difficult and lists about 2.5 hours. Plan on a wheel alignment afterward. To go with it on the 335d 3 Series, see Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Front and Rear Essential Vehicle Kit.
Features
- Install guide: An install guide comes in the box.
- Hardware: Also in the box: mounting hardware.
- Material: Built from polyurethane.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Finish: The metal parts are powder coated for durability.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
| Part Number | KCA431 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009-2011 BMW 335d 3 Series |
| Chassis Code | E90 |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 46.1 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
