Product Details

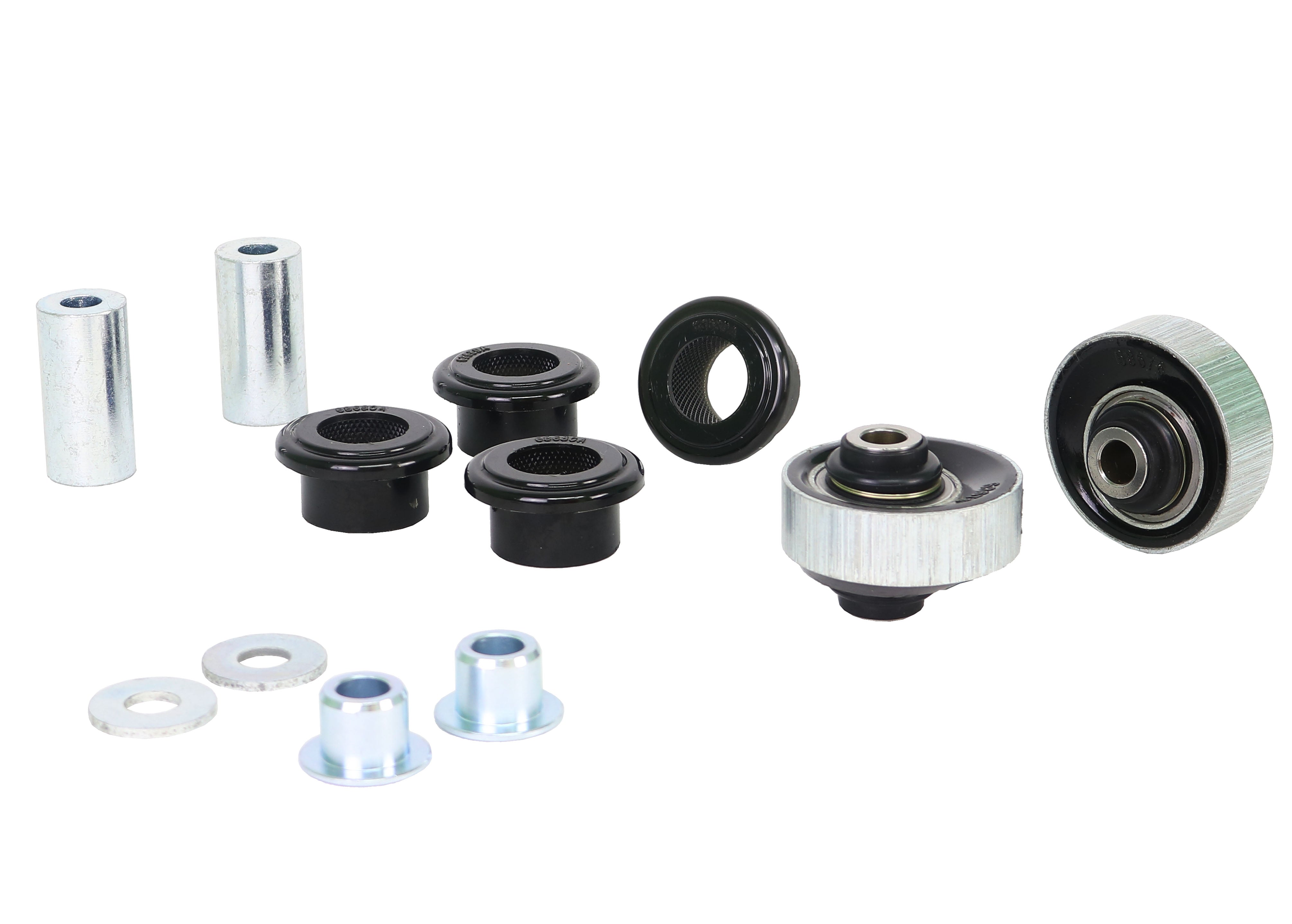

This Whiteline Front Control Arm Geometry Correction Kit fits the 2015-2020 Audi S3 (8V). Position: front. The kit contains 2 shell bushings, 4 bushings, 2 tubes, and 4 washers. Whiteline part number: KCA462. Application note: Contains Control arm and Bumpsteer bushings: adds .5 degrees Caster Anti-Lift.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Installation is rated difficult, with about 2 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Audi S3: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Install guide: Written install instructions are included with the part.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number KCA462
Part Name Control Arm Correction Kit
Vehicle 2015-2020 Audi S3
Chassis Code 8V
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Length 54 mm
Bushing 1 Outer Diameter 36.8 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing 2 Length 54 mm
Bushing 2 Outer Diameter 64.6 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 4 Bushings, 2 Tubes, 4 Washers
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 36.8 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Contains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015AudiS34WDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2016AudiS34WDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2017AudiS34WDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2018AudiS34WDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2019AudiS34WDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2020AudiS34WDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
