Product Details

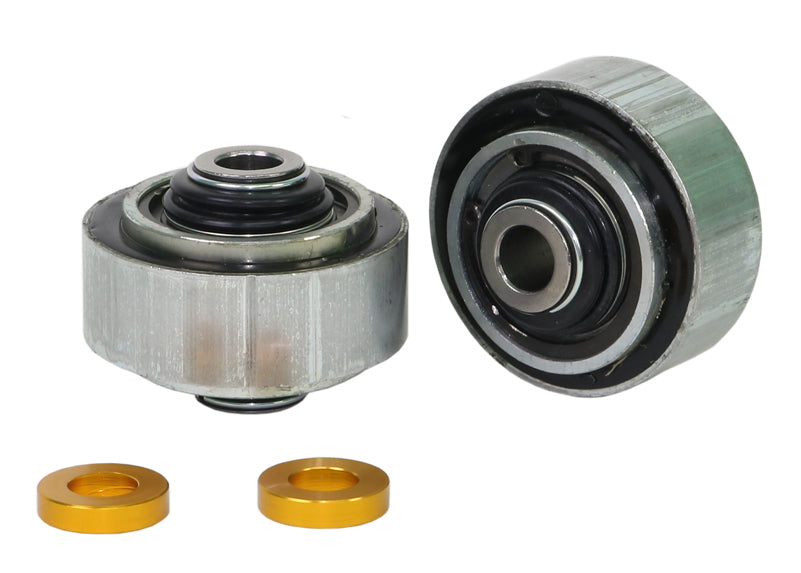

Whiteline Front Lower Inner Rear Control Arm Bushing Kit is made for the 2019-2022 Hyundai Veloster Turbo Tech (JS). Whiteline's note for this fit: Adds 0.5 degrees Caster & Anti-Lift. The listing names the Turbo Tech trim. It goes on the front of the vehicle. Order it as part number KCA474. In the box: 2 shell bushings and 2 spacers.
This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.
Whiteline rates the install as difficult and lists about 2.5 hours. Plan on a wheel alignment afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Front Sway Bar Link Kit for the Veloster.
Features
- Caster: Optimizes caster for better contact during roll and more stable steering.
- Install guide: Written install instructions are included with the part.
- Bonded design: A bonded design adds strength for high load applications.
- Material: Made from polyurethane.
- Alignment adjustment: Adds adjustment so the alignment can be optimized.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | KCA474 |
| Part Name | Control Arm Bushing |
| Vehicle | 2019-2022 Hyundai Veloster Turbo Tech |
| Chassis Code | JS |
| Bushing 1 Inner Diameter | 14.2 mm |
| Bushing 1 Outer Diameter | 70.2 mm |
| Bushing Quantity | 2 Shell bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell bushings, 2 Spacers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5 Degree Caster & Anti-Lift |
