Product Details

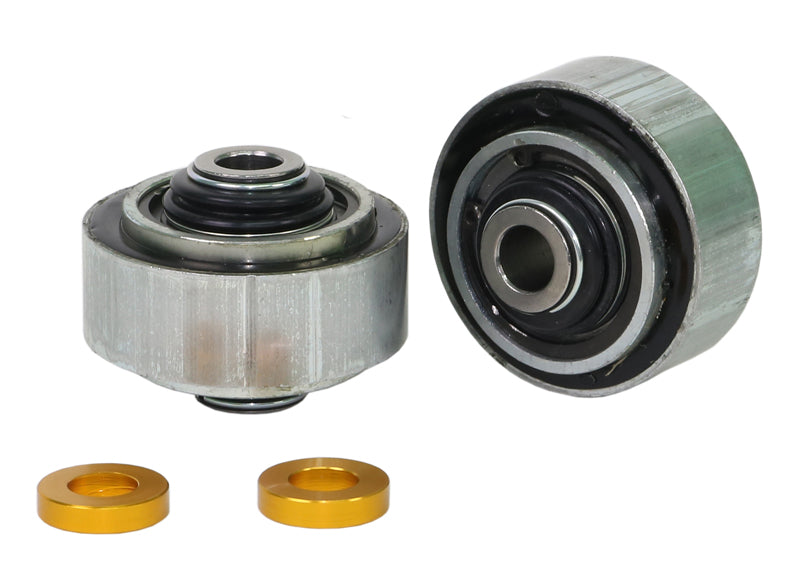

Fitted to the 2019-2021 Hyundai Veloster Turbo (JS): the Whiteline Front Lower Inner Rear Control Arm Bushing Kit. Whiteline's note for this fit: Adds 0.5 degrees Caster & Anti-Lift. Trim named on the listing: Turbo. Whiteline part number: KCA474. This part is for the front of the vehicle. In the box: 2 shell bushings and 2 spacers.
This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.
Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Veloster: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Front Sway Bar Link Kit.
Features
- Material: Made from polyurethane.
- Install guide: Step-by-step installation instructions come with it.
- Bonded design: A bonded design adds strength for high load applications.
- Caster: Adds caster to improve turn-in and directional stability.
- Alignment adjustment: Gives an alignment shop a window of adjustment to set the wheels right.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
| Part Number | KCA474 |
| Part Name | Control Arm Bushing |
| Vehicle | 2019-2021 Hyundai Veloster Base, N Base, Premium, Turbo, Turbo R-Spec, Turbo Ultimate |
| Chassis Code | JS |
| Bushing 1 Inner Diameter | 14.2 mm |
| Bushing 1 Outer Diameter | 70.2 mm |
| Bushing Quantity | 2 Shell bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell bushings, 2 Spacers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5 Degree Caster & Anti-Lift |
